The Kinco Green Series is the successor to the successful Kinco MT4000 series for HMI. The Green Series has the same dimensions as the MT4000 series and projects from HMIware can be transferred directly to the new DTools. Migration is therefore seamless.
Compared to its predecessor, the new Green Series offers more memory, a faster processor, more screen colors and a more robust housing. The new DTools software has the same structure as the previous HMIware software, but offers a range of new elements and functions. These include a new recipe editor for easy selection and editing of recipes, an FTP client, a network database connection (SQL) and the option to change the IP of the PLC via system variables, allowing several PLCs to be operated and switched seamlessly with the same display.
The programming software is available as a free download from the respective HMI.
Kinco GL043E 4" Green Series Widescreen HMI Touch Panel
Modern and versatile HMI touch panel with 4.3'' / 11 cm screen diagonal and a resolution of 480 * 272 pixels from Kinco at a tiger price complete with serial interface and Ethernet interface (remote controllable). It is the smallest HMI in our range and yet offers all the features of its larger siblings. Direct MPI coupling with a terminal device (Point2Point): Connect a Siemens S7 PLC directly via MPI (without PC adapter). The touch panel offers a versatile library of elements for visualization and operation, many freely available communication drivers for different PLCs and a simple graphical configuration communication with the PLCs. With its compact control panel, the touch panel is very well suited for small machines or small control elements in plants and in industrial building automation. The touch panel offers a wide range of functions for visualization and operation.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: kompakte Größe
- Product Benefits 2: Ethernet
- Product Benefits 3: Helles farbiges Display

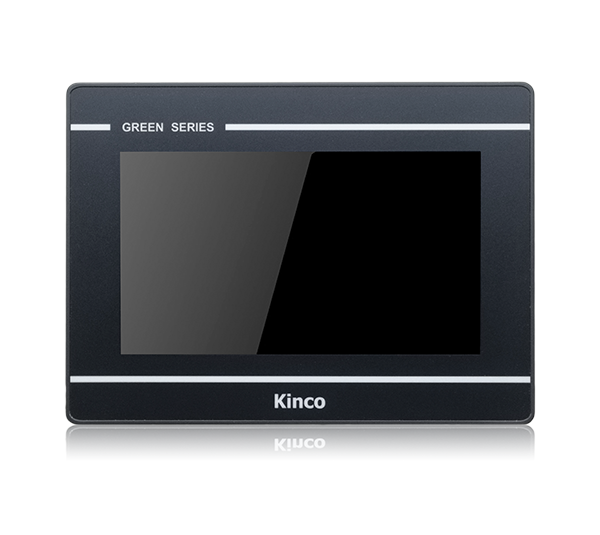

Kinco GL070E 7" Green Series Widescreen HMI Touch Panel
From
€142.14 *
The GL070E is a modern, versatile and very cost-effective HMI touch panel with 7'' screen diagonal and a resolution of 800 * 480 pixels from Kinco with Ethernet interface. (Note for existing customers: The GL070E is the successor model of the MT4434TE and is compatible in terms of installation dimensions. Programs can be ported).The HMI is programmed using the free Kinco DTools software. You can download it from the bottom of this page. The software is available in German. PLCs, frequency converters and other devices that you want to visualise or control can be connected via Ethernet and serial interface. The touch panel offers you a versatile range of functions and simple graphic configuration of the PLC communication. The touch panel is ideal for machine controls or smaller plant control elements. The unit supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many others. Functions (excerpt):Versatile graphic elements for display and operationAnimationsIndividual graphic elements and images possibleExtensive data loggingRecipe managementVNC server and client for remote control (e.g. from smartphone or browser)PDF display on the HMI (new)User management and securityAlarms and eventsOwn language switching for users programmable via text tablesC macros for complex calculationsProgramme and recipe download via USB, USB stick or EthernetFTP server for retrieving CSVs and log filesXY graphs with up to 64 characteristics possible, histogramsGeneration and display of QR codesScheduler for calendar-controlled functions...Kinco HMIs are now in use at well over 100 of our customers in Germany.We are convinced that Kinco HMI touch panels also offer you, as an automation or machine and plant manufacturer, a particularly cost-effective way of providing your customers with modern and versatile user interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: mit neutraler Front verfügbar
Available in 1 day, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Kinco GL100E 10" Green Series Widescreen HMI Touch Panel
From
€201.00 *
Modern and versatile and very cost effective HMI touch panel with 10'' screen diagonal and a resolution of 1024 * 600 pixels from Kinco with Ethernet interface. The GL100E is the successor model of the MT4532TE and is compatible in terms of installation dimensions..
Through Ethernet and serial interface, you can connect PLCs, frequency converters and other devices that you want to visualize or control. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
Note for new customers: You can test this device for 30 days without obligation. This device is of course also available for existing customers to order normally at the price shown.This is how the test works for new customers: the first time you order this device, we offer you a 30-day return policy. Within 30 days, you can return this device to us as a first-time buyer. You will not pay the invoice until the trial period is over and you have decided to use the device. To do this, order this device normally, we will automatically ship initial orders as a trial device. If you have any technical questions during the trial, feel free to write to us at support@spstiger.de.
. Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you as an automation or machine and plant manufacturer to provide your customers with modern and versatile operator interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 1 day, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Kinco G100E2-WIFI-PR01 – 10.1” HMI, Wide Temp, Wi-Fi, Dual Ethernet
The Kinco G100E2-WIFI-PR01 is designed for machine and plant operators who need a reliable HMI in environments with extreme temperatures. With an operating range of −20 °C to +70 °C, the 10.1” panel handles outdoor installations, cold storage, steel mills, and other thermally demanding applications without external heating or cooling.
🏭 Typical applications
Outdoor installations: Cold winters and hot summers are no obstacle – the G100E2-WIFI-PR01 operates reliably from −20 °C to +70 °C.
Cold storage and refrigeration logistics: Food processing, cold warehouses or refrigerated transport – the three-proof coating on the PCB prevents condensation damage during rapid temperature changes.
Foundries, metalworking, furnaces: High ambient temperatures and strong electromagnetic interference are reliably shielded by the all-metal housing.
Remote access via Wi-Fi or Ethernet: With built-in WLAN and two independent Ethernet ports, the HMI can be integrated directly into the network and parametrized remotely via DTools – without physical access to the machine.
🖥️ Display and touch
The 10.1” TFT display (1024 × 600 pixels, 16.7 million colors) provides a contrast ratio of 800:1 at 250 cd/m² brightness with an 85° viewing angle in all directions. LED backlight lifetime exceeds 30,000 hours.
🧤 Resistive touch – ideal for gloves and wet environments
The device uses a 4-wire precision resistive network with a glass surface (surface hardness 3H). TP+LCD fully integrated technology provides haptic feedback that closely resembles capacitive touchscreens in feel and appearance.
💡 Note: Works with safety gloves or wet fingers. No multi-touch (no pinch/zoom). For capacitive multi-touch: choose a capacitive model.
🔌 Interfaces and connectivity
2 × Ethernet (LAN0 + LAN1): Two independent 10/100 Mbps ports for network separation or redundant connection.
Wi-Fi (WLAN): Integrated WLAN for wireless remote maintenance and program upload.
COM0 (RS232/RS485/RS422), COM1 (RS485/RS422/CAN), COM2 (RS232): Three serial ports with CAN bus support on COM1.
1 × USB Host: For USB drives (program upload/download) and external peripherals.
USB Slave: Direct PC connection for programming and diagnostics.
🌐 Remote access and network services
For remote monitoring or updates, the combined Wi-Fi + dual Ethernet setup allows programs to be transferred wirelessly via WLAN or over Ethernet directly from a PC. No separate WLAN router is needed if an existing Wi-Fi infrastructure is available.
🔗 PLC compatibility
DTools V4.1 (and above) includes drivers for over 60 PLC types – including Siemens S7-200/300/400/1200/1500, Mitsubishi, Beckhoff, Allen-Bradley, Omron, and all Kinco controllers. Existing systems can be upgraded with a modern operator panel without replacing the PLC.
🏷️ Manufacturer and reliability
Kinco Automation is an established manufacturer with years of experience developing HMI and drive technology for the global industrial market. The G100E2-WIFI-PR01 is CE-certified (EN†61000-6-4:2019, EN†61000-6-2:2019) and meets EMC requirements for industrial use in Europe. IP65 protection (front panel) rounds out its suitability for demanding industrial environments. Kinco HMIs are deployed at over 100 spstiger customers across Germany.
🔧 Installation and scope of delivery
Overall dimensions: 166 × 254 × 32.6 mm | Cut-out: 192 × 138 mm | Weight: 1.65 kg. Panel installation or bracket mounting. Power supply: DC†18 –†28 V, built-in isolated power supply, 15 W at 24 VDC.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: -20 °C to +70 °C operation
- Product Benefits 2: Wi-Fi + 2 × Ethernet (RJ45)
- Product Benefits 3: Resistive glass touch
- Product Benefits 4: IP65, all-metal housing
- Product Benefits 5: CAN, RS485, RS422
Kinco GH070E 7" Green Series Widescreen HMI Touch Panel
From
€299.29 *
Modern and versatile and very powerful HMI touch panel with 7'' screen diagonal and a resolution of 800 * 480 pixels from Kinco with Ethernet interface. The GH070E is the successor model of the MT4424TE and is compatible with this model in terms of installation dimensions.
Compared to the less expensive GL070E (or its predecessor MT4434TE), this variant has a brighter screen, more serial ports, isolated serial ports and power supply for high noise immunity, and an SD card slot.
Use Ethernet and serial ports to connect PLCs, variable frequency drives, and other devices you want to visualize or control. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Beckhoff Twincat, Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile user interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: Temperaturbereich Betrieb: -10 °C bis +55 °C
- Product Benefits 2: 3 x RS-232 / RS-485-Schnittstellen
Available in 1 day, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Kinco SZ7GES 7" Green Series Widescreen HMI Touch Panel
From
€370.80 *
Modern and versatile and very cost effective handheld HMI touch panel with 7'' diagonal screen and 800 * 480 pixel resolution from Kinco. The touch panel offers a versatile range of functions and easy graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The HMI can be mounted on a VESA mount for screens (75 mm x 75 mm) for example on a support arm. It is IP62 dust and drip-proof. The serial RS-232 interface and Ethernet can be used to connect PLCs to the HMI. The interfaces are designed as an included 5-meter cable. Optionally, a version with 10-meter cable is available.The signal of the stop button and the yellow button on the back are directly available as an output signal on the cable and are dual-channel. All other function keys can be freely assigned via the programming software. The HMI is programmed via the free software Kinco DTools. You can find it further down on this page as a download. The software is available in German language.
You can connect PLCs, frequency converters and other devices that you want to visualize or control via Ethernet and serial interface. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (Master and Slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many others.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
If you have any technical questions during testing, feel free to write us at support@spstiger.de.
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile operator interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 1 day, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten

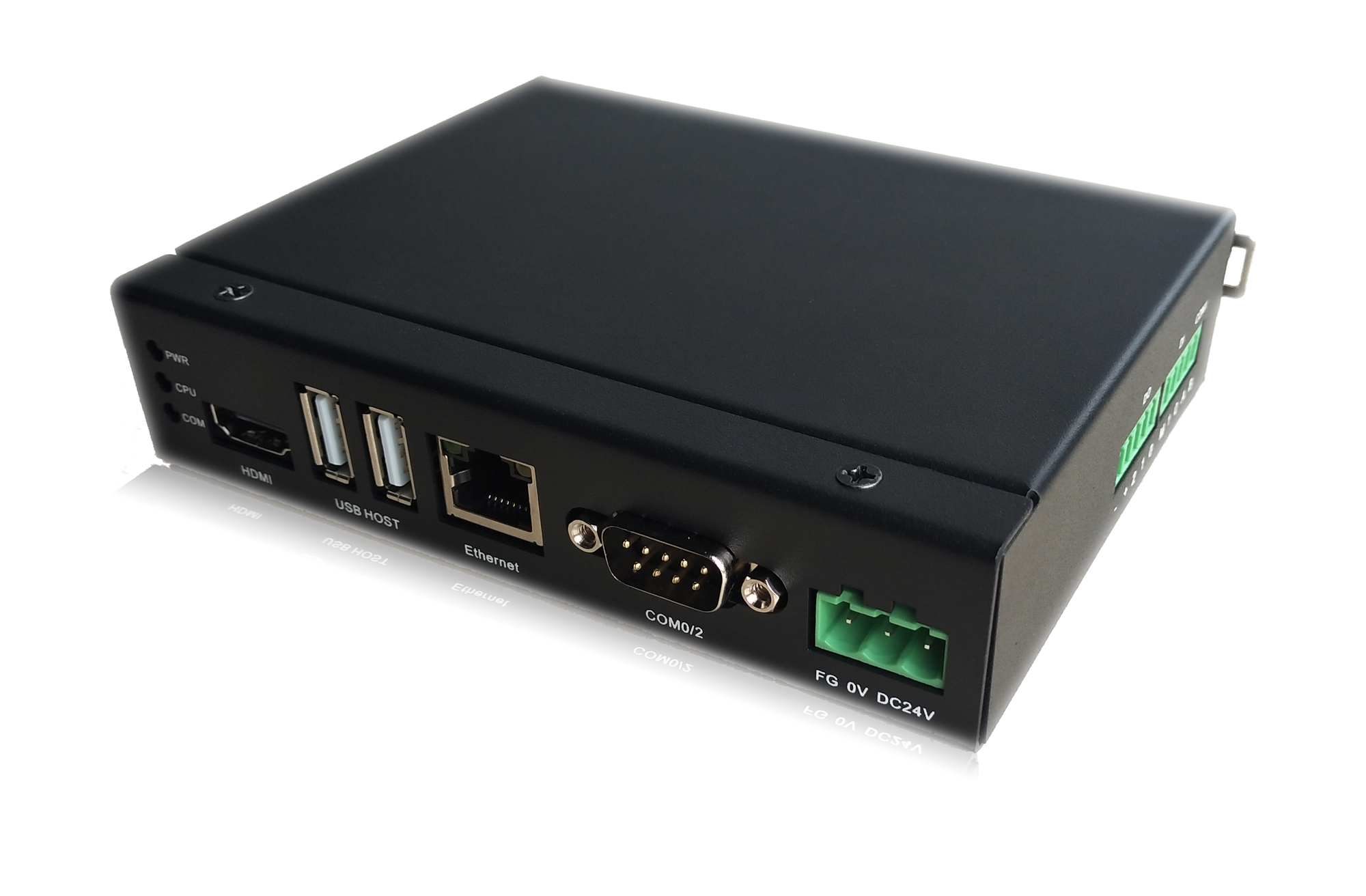

Kinco xF-SiHMI01 HMI with HDMI interface without display
The xF-SiHMI01 is a full HMI without screen with a resolution of 1,920 x 1,080 pixels from Kinco with Ethernet interface. It connects via HDMI to a screen of any size and is programmed via Kinco DTools. It can be operated using either a mouse or USB-connected touch. (Some screens with HDMI offer touch functions via USB interface).The HMI has a relatively large amount of memory, 4 GB, to allow for high-resolution images and point-of-sale presentations, for example. It is well suited to display messages or data from production at low cost. The HMI also has 2 dedicated digital inputs (24 VDC) and 3 digital outputs (24 VDC transistor) to integrate e.g. lights or buttons directly into the HMI program. The HMI is also suitable as MQTT publisher and subscriber and as OPC UA client and server.The HMI is programmed via the free software Kinco DTools. You can find this further down on this page as a download. The software is available in German language.
You can connect PLCs, frequency converters and other devices that you want to visualize or control via Ethernet and serial interface. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (Master and Slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many others.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
Note for new customers: You can test this device for 30 days without obligation. This device is of course also available for existing customers to order normally at the price shown.This is how the test works for new customers: the first time you order this device, we offer you a 30-day return policy. Within 30 days, you can return this device to us as a first-time buyer. You will not pay the invoice until the trial period is over and you have decided to use the device. To do so, order this device normally, we will automatically ship initial orders as a trial device. If you have any technical questions during the trial, feel free to write to us at support@spstiger.de.
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile operator interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
Kinco GL150E 15" Green Series HMI Touch Panel
From
€691.43 *
Modern and versatile and very cost effective HMI touch panel with 15'' screen diagonal and a resolution of 1,024 * 768 pixels from Kinco with Ethernet interface. The GL150E is the successor model of the MT4720TE and is compatible in terms of installation dimensions..
Through Ethernet and serial interface, you can connect PLCs, frequency converters and other devices that you want to visualize or control. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
Note for new customers: You can test this device for 30 days without obligation. This device is of course also available for existing customers to order normally at the price shown.This is how the test works for new customers: the first time you order this device, we offer you a 30-day return policy. Within 30 days, you can return this device to us as a first-time buyer. You will not pay the invoice until the trial period is over and you have decided to use the device. To do this, order this device normally, we will automatically ship initial orders as a trial device. If you have any technical questions during the trial, feel free to write to us at support@spstiger.de.
. Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you as an automation or machine and plant manufacturer to provide your customers with modern and versatile operator interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 1 day, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Kinco GH043E 4" Green Series Widescreen HMI Touch Panel
Modern and versatile HMI touch panel with 4.3'' / 11 cm screen diagonal and a resolution of 480 * 272 pixels from Kinco at tiger price complete with serial interface and Ethernet interface (remote controllable). It is a small HMI in our range and is the better equipped version of the GL043E. Direct MPI coupling with a terminal device (Point2Point): Connect a Siemens S7 PLC directly via MPI (without PC adapter). The touch panel offers a versatile library of elements for visualization and operation, many freely available communication drivers for various PLCs and a simple graphical configuration communication with the PLCs. With its compact control panel, the touch panel is very well suited for small machines or small control elements in plants and in industrial building automation. The touch panel offers a versatile library for visualization and operation.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: Temperaturbereich Betrieb: -20 °C bis +55 °C
Kinco GR070E 7" Green Series Open-Frame HMI Touch Panel
From
€142.14 *
The GR070E is a modern, versatile and very cost-effective HMI touch panel with 7'' screen diagonal and a resolution of 800 * 480 pixels from Kinco with Ethernet interface. The GR070E is the open frame version of the GL070E and is well suited for flush mounting in machines and devices.The HMI is programmed via the free Kinco DTools software. You can find this further down on this page as a download. The software is available in German language.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten

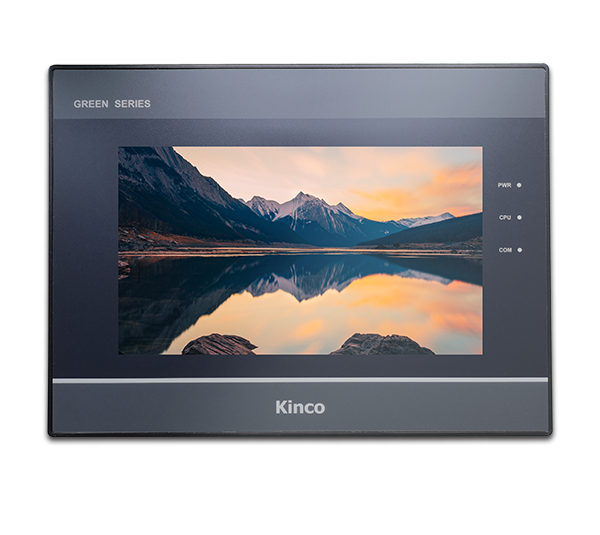

Kinco G100E 10" Green Series Widescreen HMI Touch Panel
From
€306.43 *
Modern and versatile and very cost effective HMI touch panel with 10'' screen diagonal and a resolution of 1024 * 600 pixels from Kinco with Ethernet interface. The G100E is the better equipped version of the GL100E and is significantly larger in terms of installation dimensions..
You can connect PLCs, frequency converters and other devices you want to visualize or control via Ethernet and serial interface. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile user interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 15 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten

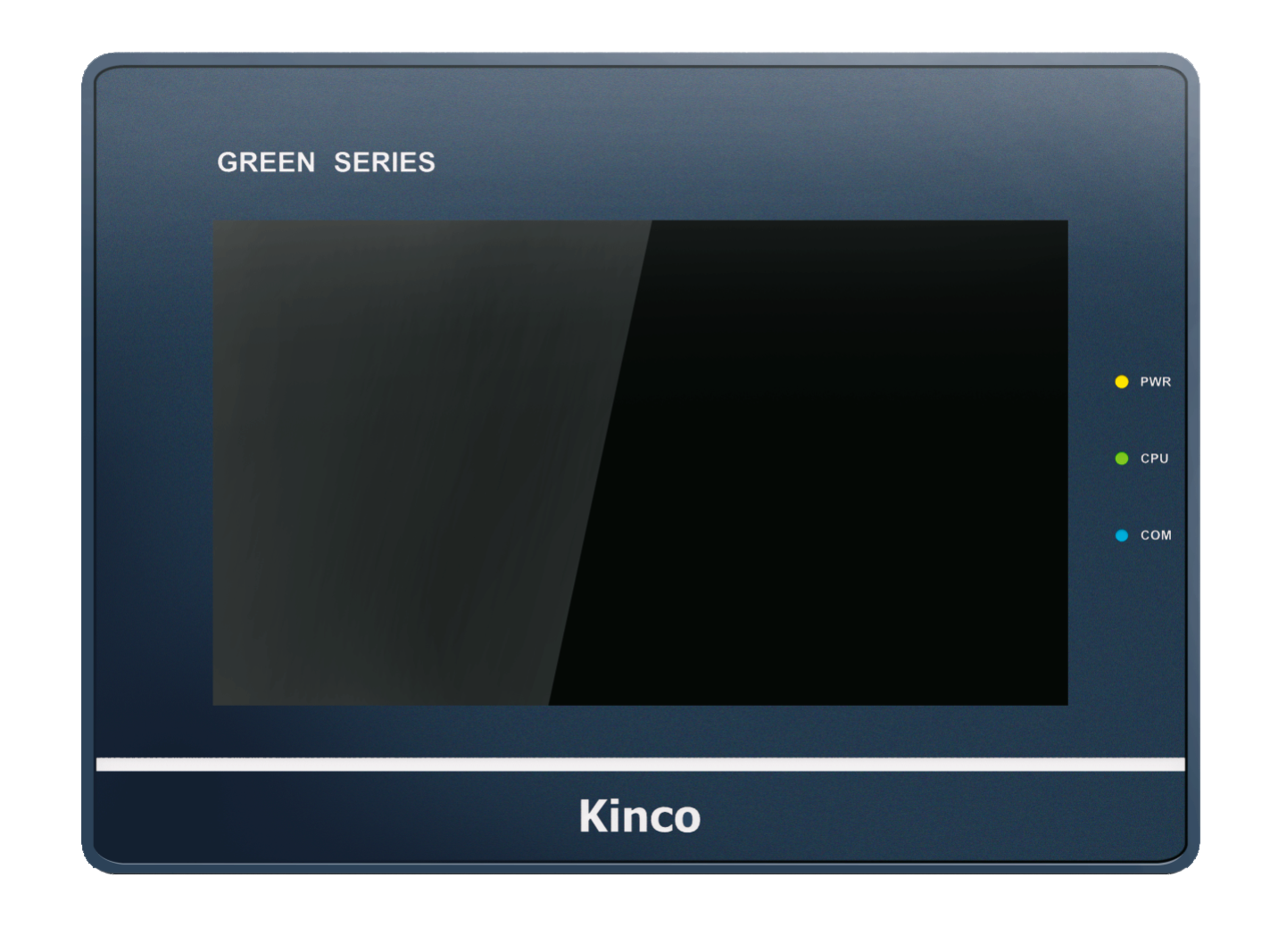

Kinco G070E 7" Green Series Widescreen HMI Touch Panel
From
€212.86 *
The G070E is a modern, versatile and very cost-effective HMI touch panel with 7'' screen diagonal and a resolution of 800 * 480 pixels from Kinco with Ethernet interface. The G070E is the slightly better equipped version of the GL070E.The HMI is programmed via the free software Kinco DTools. You can find this further down on this page as a download. The software is available in German language.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 1 day, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Kinco GR070E 7" Green Series Open-Frame HMI Touch Panel
The GR070E is a modern, versatile and very cost-effective HMI touch panel with 7'' screen diagonal and a resolution of 800 * 480 pixels from Kinco with Ethernet interface. The GR070E is the open frame version of the GL070E and is well suited for flush mounting in machines and devices.The HMI is programmed via the free Kinco DTools software. You can find this further down on this page as a download. The software is available in German language.
- Available
- Delivery Time : 3 bis 5 Tage
Kinco GR100E 10" Green Series Open-Frame HMI Touch Panel
Open frame variant of the GL100E for installation and devices and machines. Modern and versatile and very cost effective HMI touch panel with 10'' screen diagonal and a resolution of 1024 * 600 pixels from Kinco with Ethernet interface..
Through Ethernet and serial interface, you can connect PLC, frequency converter and other devices you want to visualize or control. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile user interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
Kinco GH150E 15" Green Series HMI Touch Panel
Modern and versatile and very cost effective HMI touch panel with 15'' screen diagonal and a resolution of 1,024 * 768 pixels from Kinco with Ethernet interface. The GH150E is a higher quality version of the GL150E and is compatible in terms of installation dimensions.
Through Ethernet and serial interface you can connect PLCs, frequency converters and other devices you want to visualize or control. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar driven functions.
...
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile user interfaces.
- Available
- Delivery Time : 3 bis 5 Tage

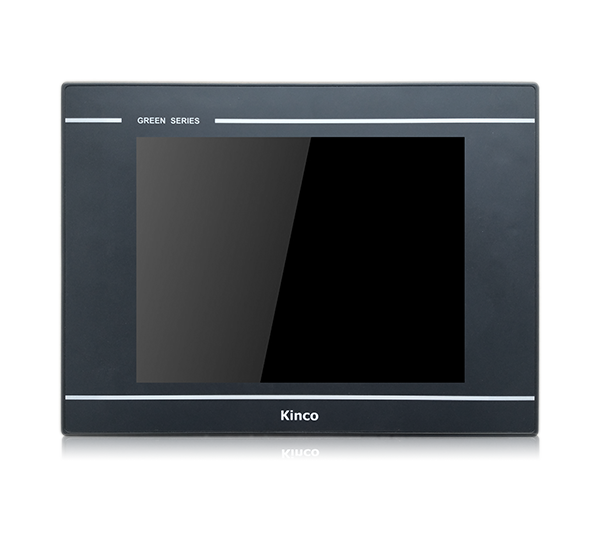

Kinco GL104E 10" Green Series HMI Touch Panel
From
€355.71 *
Modern and versatile HMI touch panel with 10.4'' screen diagonal and a resolution of 800 * 600 pixels from Kinco with Ethernet interface. The GL104E is the successor model of the MT4513TE and is compatible in terms of installation dimensions..
Through Ethernet and serial interface, you can connect PLCs, frequency converters and other devices that you want to visualize or control. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and Events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick, or Ethernet
FTP server to retrieve CSVs and log files.
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes.
Scheduler for calendar controlled functions.
...
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile user interfaces.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 14 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Kinco G070E-CAN 7" Green Series Widescreen HMI Touch Panel with CANopen Slave support
The G070E-CAN is a modern, versatile and very cost-effective HMI touch panel with 7'' screen diagonal and a resolution of 800 * 480 pixels from Kinco with Ethernet interface and CANopen Slave interface. The HMI is programmed via the free software Kinco DTools. You can find this further down on this page as a download. The software is available in German language.
- Available
- Delivery Time : 3 bis 5 Tage
Kinco G121E 12" Green Series HMI Touch Panel
From
€545.60 *
Modern and versatile and very cost effective HMI touch panel with 12'' diagonal screen and 800 * 600 pixels resolution from Kinco with Ethernet interface. This model has a VESA 75 x 75 screw fixture for mounting on a wall mount or VESA support arm.
Through Ethernet and serial interface, you can connect PLC, frequency converter and other devices that you want to visualize or control. The touch panel offers you a versatile range of functions and easy graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick or Ethernet
FTP server for retrieving CSVs and log files
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes
Scheduler for calendar controlled functions.
...
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you as an automation or machine and plant manufacturer to provide your customers with modern and versatile operator interfaces..
- Available
- Delivery Time : 10-15 Tage
- Product Benefits 1: 12" HMI
- Product Benefits 2: VESA-Schraubvorrichtung
- Product Benefits 3: erweiterter Temperaturbereich
- Product Benefits 4: 800 x 600 Pixel
Available in 30 days, delivery time 10-15 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Kinco G121E 12" Green Series HMI Touch Panel
Modern and versatile and very cost effective HMI touch panel with 12'' diagonal screen and 800 * 600 pixels resolution from Kinco with Ethernet interface. This model has a VESA 75 x 75 screw fixture for mounting on a wall mount or VESA support arm.
Through Ethernet and serial interface, you can connect PLC, frequency converter and other devices that you want to visualize or control. The touch panel offers you a versatile range of functions and easy graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.
The device supports communication with over 60 PLC models, including Siemens S7-200, S7-1200, S7-300/400, S7-1500, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX and many others. For more details, please refer to the "PLC Driver" tab.
Features (excerpt):
Various graphical elements for display and operation.
Animations
Individual graphic elements and images possible.
Extensive data logging
Recipe management
VNC server and client for remote control (e.g. from smartphone or browser)
PDF display on the HMI (new)
User management and security
Alarms and events
Individual language switching for users programmable via text tables.
C macros for complex calculations
Program and recipe download via USB, USB stick or Ethernet
FTP server for retrieving CSVs and log files
XY graphs with up to 64 characteristics possible, histograms.
Generation and display of QR codes
Scheduler for calendar controlled functions.
...
Kinco HMI are now in use at well over 100 of our customers in Germany.We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you as an automation or machine and plant manufacturer to provide your customers with modern and versatile operator interfaces..
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: 12" HMI
- Product Benefits 2: VESA-Schraubvorrichtung
- Product Benefits 3: erweiterter Temperaturbereich
- Product Benefits 4: 1024 x 768 Pixel
