I/O expansion modules for modular compact PLCs. Enable the connection of additional buttons, sensors, switches and much more.
Kinco KS133-06IV Analog expansion for KS105 PLC
4 analog inputs (4 - 20 mA, 0 - 10 V), resolution 12 bit, sampling rate 15 Hz.
2 analog outputs (4 - 20 mA, 0 - 10 V), resolution 12 bit, update rate 15 Hz
1 x RS-485 (Modbus RTU) + expansion ports for KS105
This extension is compatible with Kinco KS105 PLC. However, it can also be used independently as a Modbus RTU analog I/O module.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: 4 x Analogeingang (4 - 20 mA, 0 - 10 V)
- Product Benefits 2: 2 x Analogausgang (4 - 20 mA, 0 - 10 V)
Kinco KS121-16DX Digital Input Expansion for KS105 PLC
16 digital input (24 VDC)
1 x RS-485 (Modbus RTU) + expansion port for KS105
This extension is compatible with Kinco KS105 PLC. However, it can also be used independently as a Modbus RTU analog I/O module.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: 16 x Digitaleingänge (24 VDC, PNP)
Kinco KS131-04RD Temperature Extension for KS105 PLC
4 temperature inputs (PT100, PT1000, Cu50 or resistor)
1 x RS-485 (Modbus RTU) + expansion ports for KS105
This extension is compatible with the Kinco KS105 PLC and the MK070E. However, it can also be used independently as a Modbus RTU analog I/O module.
Measuring ranges:Pt100: -200 to +850 °CCu50: -50 to +150°CPt1000: -50to +300 °CResistance: 0 to 2000Ω
- Available
- Delivery Time : 1-3 days
- Product Benefits 1: 4 x Temperatureingang
- Product Benefits 2: geeignet für PT100, PT1000, Cu50 oder Widerstand
Kinco KS123-14DR Digital Expansion for KS105 PLC
8 Digital input (24 VDC)
6 relay output (230 VAC, 2A)
1 x RS-485 (Modbus RTU) + expansion port for KS105
This extension is compatible with Kinco KS105 PLC. However, it can also be used independently as a Modbus RTU analog I/O module.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: 8 x Digitaleingang (24 VDC, PNP)
- Product Benefits 2: 6 x Relaisausgang (230 VAC, 2A)
Kinco KS122-12XR Digital Output Expansion for KS105 PLC
12 relay output (230 VAC, 2A)
1 x RS-485 (Modbus RTU) + expansion port for KS105
This extension is compatible with Kinco KS105 PLC. However, it can also be used independently as a Modbus RTU analog I/O module.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: 12 x Relaisausgang (230 VAC, 2A)
Analog extension for Xinje XL PLC
Analog expansion for the Xinje XL series. 4 analog inputs and 2 analog outputs
- Available
- Delivery Time : 3 bis 5 Tage
Kinco KS122-14DT Digital Expansion for KS105 PLC
14 transistor outputs (24 VDC PNP) 1 x RS-485 (Modbus RTU) + expansion port for KS105
This extension is compatible with Kinco KS105 PLC. However, it can also be used independently as a Modbus RTU analog I/O module.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: 14 x Transistorausgang (24 VDC)

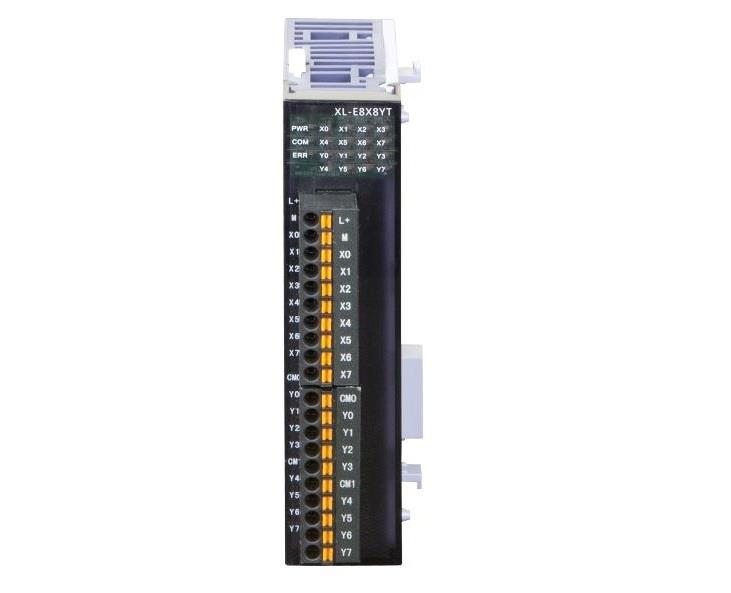

Digital extension for Xinje XL PLC with 16 I/Os
Expansion for the Xinje XL series. 8 inputs (PNP) and 8 outputs relays.
- Available
- Delivery Time : 3 bis 5 Tage
Digitalerweiterung Kinco K523-16DT für K6 SPS
You want to connect a machine station with sensors and valves in one go? The K523-16DT adds 8 inputs and 8 transistor outputs to your Kinco controller.
⚡ Technical data
8 digital inputs 24 V DC, wired as PNP or NPN, 3.5 mA input current, optically isolated.
8 transistor outputs in 2 groups of 4 channels, PNP, 500 mA per channel at 24 V DC, protected against short circuit, inductive loads and reverse polarity.
Status indication via green LED per channel.
Power comes via the expansion bus: the module draws up to None mA at 5 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
💡 Expansion module of the Kinco K5 series. It works with K5 CPUs and directly with all K6 CPUs (K606, K606EA, K608), whose expansion bus is compatible with the K5. Technically it corresponds to the K6 module K623-16DT.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 8 DI / 8 DO transistor
- Product Benefits 2: 500 mA per output
- Product Benefits 3: PNP or NPN inputs
- Product Benefits 4: for K5 and K6
Temperaturerweiterung (PT100) Kinco K531-04RD für K6 SPS
You want to measure temperatures in an oven, cooling circuit or barn directly with resistance thermometers, without transmitters in between? The K531-04RD reads four Pt100, Pt1000 or Cu50 sensors directly.
⚡ Technical data
4 measuring channels for Pt100 (−200 °C to +850 °C), Pt1000 (−50 °C to +300 °C) and Cu50 (−50 °C to +150 °C) as well as direct resistance (0 Ω to 2000 Ω).
Connection in 2-wire or 3-wire technology.
Accuracy ±0.5 °C or ±1 Ω, resolution 24 bit, about one conversion per second and channel.
Diagnostics: red LED and error message to the CPU when out of range.
External supply 24 V DC, at least 100 mA.
Power comes via the expansion bus: the module draws up to 172 mA at 5 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
💡 Expansion module of the Kinco K5 series. It works with K5 CPUs and directly with all K6 CPUs (K606, K606EA, K608), whose expansion bus is compatible with the K5. Technically it corresponds to the K6 module K631-04RD.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 4 × Pt100, Pt1000, Cu50
- Product Benefits 2: 2-wire or 3-wire
- Product Benefits 3: accuracy ±0.5 °C
- Product Benefits 4: for K5 and K6
Analog expansion Kinco K533-04IV for K6 PLC
You want to close a control loop: actual value in from the transmitter, manipulated value out to a valve or inverter? The K533-04IV provides 2 analog inputs and 2 analog outputs in one module.
⚡ Technical data
2 analog inputs for 4 – 20 mA, 0 – 20 mA, 1 – 5 V and 0 – 10 V, 12 bit, accuracy 0.3 % of full scale.
2 analog outputs for 4 – 20 mA, 0 – 20 mA, 1 – 5 V and 0 – 10 V, 12 bit, accuracy 0.3 % of full scale, load up to 500 Ω in current mode, above 1 kΩ in voltage mode.
Conversion rate about 15 per second and channel.
Diagnostics: red LED when the rated range is exceeded.
External supply 24 V DC, at least 100 mA.
Power comes via the expansion bus: the module draws up to 166 mA at 5 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
💡 Expansion module of the Kinco K5 series. It works with K5 CPUs and directly with all K6 CPUs (K606, K606EA, K608), whose expansion bus is compatible with the K5. Technically it corresponds to the K6 module K633-04IV.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 2 AI / 2 AO
- Product Benefits 2: 12 bit, 0.3 % accuracy
- Product Benefits 3: 4 – 20 mA / 0 – 10 V
- Product Benefits 4: for K5 and K6
Digital input extension Kinco KB6-4DI for K6 PLC
You only need a few more inputs and a whole expansion module would be overkill? The KB6-4DI plugs directly onto the K6 CPU and adds four digital inputs. It fits any BD slot, so on the K606EA and K608 also BD1.
⚡ Inputs
4 digital inputs 24 V DC, wired as PNP or NPN.
Input current 3.5 mA at 24 V DC, input delay below 40 µs.
Optocoupler isolation with 500 V AC.
Connection via terminal block with 3.81 mm pitch.
🔧 Mounting and environment
The board plugs directly onto the CPU, needs no space on the DIN rail and no separate supply. A LINK LED indicates that it is seated correctly.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 4 DI 24 V DC, PNP/NPN
- Product Benefits 2: no space on the DIN rail
- Product Benefits 3: optically isolated
- Product Benefits 4: for BD0 and BD1
Digital output extension Kinco KB6-4DO for K6 PLC
Two signal lamps and a valve don't justify a whole output module? The KB6-4DO plugs directly onto the K6 CPU and adds four outputs. It fits any BD slot, so on the K606EA and K608 also BD1.
⚡ Outputs
4 opto-relay outputs 24 V DC (permissible 20.4 V to 28.8 V DC), wired as PNP or NPN via the common terminal L.
Output current 300 mA rated, max. 500 mA per channel, short-circuit proof and protected against switch-off peaks of inductive loads.
Switching delay below 10 ms. For fast pulses, use the CPU's transistor outputs.
Optocoupler isolation with 500 V AC.
Connection via terminal block with 3.81 mm pitch.
🔧 Mounting and environment
The board plugs directly onto the CPU, needs no space on the DIN rail and no separate supply. A LINK LED indicates that it is seated correctly.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 4 opto-relays, 24 V DC
- Product Benefits 2: 300 mA, short-circuit proof
- Product Benefits 3: PNP or NPN wiring
- Product Benefits 4: no space on the DIN rail
- Product Benefits 5: for BD0 and BD1
Temperature extension for Xinje XL SPS
Temperature extension for the Xinje XL series. 4 PT100 inputs with integrated PID controller.
- Available
- Delivery Time : 3 bis 5 Tage

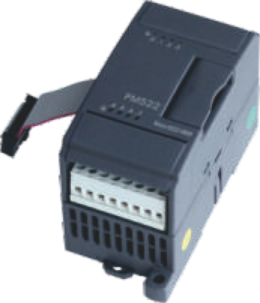

Mixed digital expansion Kinco PM523-08DT for K6 PLC
You are missing a few inputs and outputs, for example for an additional cylinder with end position sensors? The slim K623-08DT adds 4 inputs and 4 transistor outputs to your Kinco K6.
⚡ Technical data
4 digital inputs 24 V DC, wired as PNP or NPN, 3.5 mA input current, optically isolated.
4 transistor outputs PNP, 500 mA per channel at 24 V DC, protected against short circuit, inductive loads and reverse polarity.
Output delay below 25 µs.
Status indication via green LED per channel.
Power comes via the expansion bus: the module draws up to 200 mA at 5 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
Dimensions 50 mm × 114 mm × 70 mm (W × H × D).
- Available
- Delivery Time : 3-4 weeks
- Product Benefits 1: 4 DI / 4 DO transistor
- Product Benefits 2: 500 mA per output
- Product Benefits 3: PNP or NPN inputs
- Product Benefits 4: only 50 mm wide
Digitalerweiterung (Relais) Kinco K623-16DR für K6 SPS
You need more inputs for sensors and potential-free contacts for 230 V loads at the same time? The K623-16DR adds 8 inputs and 8 relay outputs to your Kinco K6 in one module.
⚡ Technical data
8 digital inputs 24 V DC, wired as PNP or NPN, 3.5 mA input current, optically isolated.
8 relay outputs in 2 groups of 4 channels.
Switching capacity: 2 A per contact at 30 V DC or 250 V AC, max. 8 A per group of 4 channels. Electrical life 100 000 operations at rated load, coil/contact isolation 2000 V.
Status indication via green LED per channel.
Power comes via the expansion bus: the module draws up to 210 mA at 5 V and 60 mA at 24 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
Dimensions 75 mm × 114 mm × 70 mm (W × H × D).
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 8 DI / 8 DO relay
- Product Benefits 2: 2 A at 250 V AC / 30 V DC
- Product Benefits 3: PNP or NPN inputs
- Product Benefits 4: potential-free contacts
Analog expansion Kinco K531-04IV for K6 PLC
Pressure, level, flow: your transmitters deliver standard signals and the CPU has no or too few analog inputs? The K531-04IV takes four current or voltage signals.
⚡ Technical data
4 analog inputs for 4 – 20 mA, 0 – 20 mA, 1 – 5 V and 0 – 10 V, selectable per channel.
Resolution 12 bit, accuracy 0.3 % of full scale, about 15 conversions per second and channel.
Input limits 24 mA or 12 V, input resistance up to 500 Ω in current mode, above 4 MΩ in voltage mode.
Diagnostics: red LED and error message to the CPU when out of range.
External supply 24 V DC, at least 100 mA.
Power comes via the expansion bus: the module draws up to 172 mA at 5 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
💡 Expansion module of the Kinco K5 series. It works with K5 CPUs and directly with all K6 CPUs (K606, K606EA, K608), whose expansion bus is compatible with the K5. Technically it corresponds to the K6 module K631-04IV.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 4 AI, current or voltage
- Product Benefits 2: 12 bit, 0.3 % accuracy
- Product Benefits 3: 4 – 20 mA / 0 – 10 V
- Product Benefits 4: for K5 and K6
Analog input expansion XL-E4AD for Xinje XL PLC
Analog expansion for the Xinje XL series. 4 analog outputsWell suited for the control of actuators and frequency converters.
- Available
- Delivery Time : 3 bis 5 Tage
Digitalausgangserweiterung Relais Kinco K622-16XR für K6 SPS
You need to switch contactors, solenoid valves or 230 V AC loads and the CPU outputs are not enough? The K622-16XR expands your Kinco K6 with 16 potential-free relay outputs.
⚡ Technical data
16 relay outputs in 4 groups of 4 channels.
Switching capacity: 2 A per contact at 30 V DC or 250 V AC, max. 8 A per group of 4 channels. Electrical life 100 000 operations at rated load, coil/contact isolation 2000 V.
Switching times: turn-on max. 10 ms, turn-off max. 5 ms.
Status indication via green LED per channel.
Power comes via the expansion bus: the module draws up to 210 mA at 5 V and 120 mA at 24 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
Dimensions 75 mm × 114 mm × 70 mm (W × H × D).
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 16 relay outputs
- Product Benefits 2: 4 groups of 4 channels
- Product Benefits 3: 2 A at 250 V AC / 30 V DC
- Product Benefits 4: potential-free contacts
Thermoelement-Erweiterung Kinco K531-04TC für K6 SPS
Furnaces, extruders, hot runners: where resistance thermometers reach their limits, thermocouples keep measuring. The K531-04TC reads four thermocouples directly.
⚡ Technical data
4 measuring channels for thermocouples type J (−210 °C to +1200 °C), K (−270 °C to +1300 °C), E (−270 °C to +1000 °C) and S (−50 °C to +1600 °C).
Cold junction compensation internal or external, selectable.
Accuracy 0.1 % of full scale, resolution 24 bit, about one conversion per second and channel.
Diagnostics: red LED and error message to the CPU when out of range.
External supply 24 V DC, at least 100 mA.
Power comes via the expansion bus: the module draws up to 172 mA at 5 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
💡 Expansion module of the Kinco K5 series. It works with K5 CPUs and directly with all K6 CPUs (K606, K606EA, K608), whose expansion bus is compatible with the K5. Technically it corresponds to the K6 module K631-04TC.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 4 × thermocouple J/K/E/S
- Product Benefits 2: cold junction int./ext.
- Product Benefits 3: up to +1600 °C (type S)
- Product Benefits 4: for K5 and K6
Analog output expansion XL-E4DA for Xinje XL PLC
Analog expansion for the Xinje XL series. 4 analog outputsWell suited for the control of actuators and frequency converters.
- Available
- Delivery Time : 3 bis 5 Tage

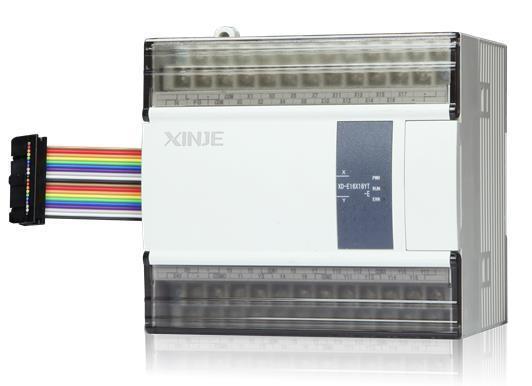

16 I/O digital expansion for THINGET XD PLC in various configurations
- Available
- Delivery Time : 3 bis 5 Tage
Digitalerweiterung Kinco K621-16DX für K6 SPS
Limit switches, light barriers and push buttons have used up your CPU inputs? The K521-16DX expands your Kinco controller with 16 digital inputs.
⚡ Technical data
16 digital inputs in 2 groups of 8 channels, 24 V DC, wired as PNP or NPN, 3.5 mA input current, optically isolated.
Input delay below 40 µs.
Status indication via green LED per channel.
Power comes via the expansion bus: the module draws up to 210 mA at 5 V. A K6 CPU provides a total of 1500 mA at 5 V and 360 mA at 24 V. If the budget is not enough for your module row, you insert the K680 power supply.
💡 Expansion module of the Kinco K5 series. It works with K5 CPUs and directly with all K6 CPUs (K606, K606EA, K608), whose expansion bus is compatible with the K5. Technically it corresponds to the K6 module K621-16DX.
🔧 Mounting and environment
Protection class IP20, operation from −10 °C to +55 °C, CE marked. Mounting on 35 mm DIN rail or with M4 screws, connection via screw terminals.
- Available
- Delivery Time : 2-5 days
- Product Benefits 1: 16 DI 24 V DC
- Product Benefits 2: for K5 and K6
- Product Benefits 3: PNP or NPN
- Product Benefits 4: input delay < 40 µs
THINGET Temperature measurement extension PT100 as remote I/O with Modbus RTU
6-channel PT100 extension by Thinget with Modbus RTU interface (RS-485).Building rate and station number adjustable via DIP switch, it's
- Available
- Delivery Time : 3 bis 5 Tage
