INVT GD20 frequency inverter with 4 KW vector control,400 V AC-STO function,IP20
€264.00 *
⚙️ INVT GD20: 0.4 to 11 kW, 230 V single-phase or 400 V three-phase
Compact vector-controlled frequency inverter for conveyors, pumps, fans and simple machine axes. If you need a replacement for an existing GD20 installation, you can take over wiring and parameters 1:1.
Control: V/f and sensorless vector control (SVC), autotuning, 0 Hz to 400 Hz
Overload: 150 % for 60 s, 180 % for 10 s, 200 % for 1 s
Safety: STO – SIL2 / PL d up to 2.2 kW, SIL3 / PL e from 4 kW
Braking: built-in brake chopper – all you need is an external braking resistor on PB/(+).
I/O: 4 digital inputs plus high-speed input up to 50 kHz (PNP or NPN via jumper), 2 analog inputs (AI2 0 V to 10 V or 0 mA to 20 mA, AI3 −10 V to +10 V), 1 to 2 analog outputs, 1 to 2 relays, 1 transistor output (second AO and second relay from 4 kW)
Communication: RS-485 with Modbus RTU
EMC: C3 filter built in from 4 kW (400 V), available as an accessory for smaller models
Environment: IP20, −10 °C to +50 °C (derating 1 % per °C above +40 °C)
💡 Wiring diagram and commissioning are on the GD20 support page. The remote operating panel is available as the GD20 keypad.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: Compact size
- Product Benefits 2: STO (SIL2 PLd)
- Product Benefits 3: V/F and vector control
- Product Benefits 4: Inputs in PNP version
- Product Benefits 5: Autotuning
Variants from €118.00 *
Available, delivery time: 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Tip
INVT braking resistor Applicable for inverters
INVT braking resistor: Suitable for INVT frequency inverters. The INVT frequency inverters have built-in brake choppers to which these resistors can be connected in order to dissipate energy from the braking of the motor.Use braking resistors if the load has a high moment of inertia and the frequency inverter goes into the fault state during braking (deceleration).
- Min. 1 Variant available.
INVT Zubehör Netzfilter Anwendbar für Wechselrichter
Kontrollieren Sie die vom Wechselrichter erzeugten elektromagnetischen Störungen, installieren Sie ihn in der Nähe der Eingangsklemmen oder Ausgangsklemmen des Wechselrichters.
- Min. 1 Variant available.
INVT frequency inverter GD-270, special inverter for fans and pumps-IP20
From
€165.24 *
- Min. 1 Variant available.
- Delivery Time : 6 bis 8 Wochen
Available in 30 days, delivery time 6 bis 8 Wochen
Preis exkl. MwSt., zzgl. Versandkosten
INVT communication extension for GD270 and GD350A frequency inverters
From
€16.80 *
- Min. 1 Variant available.
- Delivery Time : 3 bis 5 Tage
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
INVT GD-350A frequency inverter, vector control-STO-optional fieldbus-dual rating-IP20
From
€221.00 *
- Min. 1 Variant available.
- Delivery Time : 3 bis 5 Tage
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten

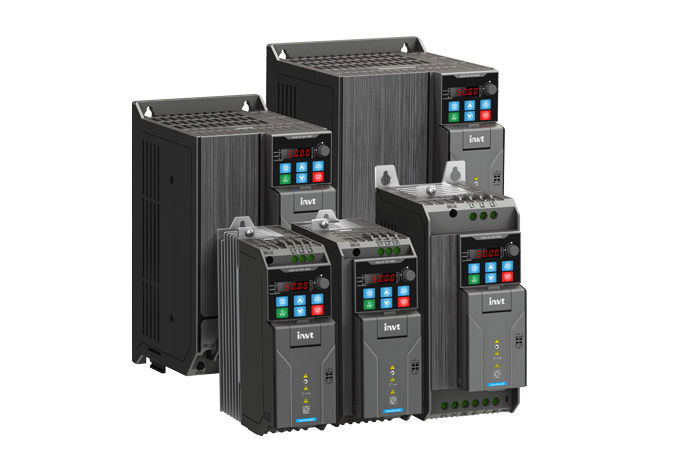

INVT GD28 frequency inverter with STO and optional communication card
From
€82.08 *
If you need a compact frequency inverter with built-in STO, brake chopper and EMC filter that can be integrated into PROFINET, EtherCAT, EtherNet/IP or Modbus TCP when required, the INVT GD28 is a universal inverter from 0.2 to 2.2 kW for single-phase 230 V and 0.4 to 22 kW for three-phase 400 V. Modbus RTU comes as standard; a single card covers all Ethernet fieldbuses: the EC-TX149.
🏭 Typical Applications
Packaging, printing and machine tools: STO to SIL 3 / PL e is built into every model. According to INVT, sensorless vector control delivers up to 200 % starting torque at 0.5 Hz, with a torque response below 10 ms.
Pumps, fans and compressors: integrated PID controller, energy-saving control at partial load and speed tracking for a smooth restart of a coasting motor. In light-duty mode, one unit covers the next larger motor rating.
Conveyors, mixers and filling machines: linear or S-curve ramps, up to 16 preset speeds and ride-through during short mains dips.
Plants with different fieldbuses: The EC-TX149 handles PROFINET, EtherCAT, EtherNet/IP and Modbus TCP — the protocol is selected by parameter. One card type in stock instead of four.
⚙️ Control and Functions
Two control modes: V/f control and sensorless vector control (SVC) with a speed range of 1:100 and ±0.2 % speed accuracy.
Asynchronous and permanent-magnet synchronous motors, autotuning of motor parameters.
Dual rating: heavy duty 150 % for 60 s and 180 % for 10 s, light duty 110 % for 60 s and 150 % for 10 s.
Output frequency 0–599 Hz, frequency resolution 0.01 Hz.
Frequency setpoint via keypad, potentiometer, analog input, pulse input, preset speeds, PID or Modbus — setpoint channels can be combined.
Motor temperature monitoring: PTC directly on DI4, PT100, PT1000 or KTY84 via the AO→AI analog combination.
Fewer nuisance trips: overvoltage and overcurrent stall control, automatic voltage regulation (AVR).
🔌 Connections and Control I/O
5 digital inputs: 4 standard inputs and 1 high-speed input up to 50 kHz, NPN and PNP (factory setting PNP).
2 analog inputs: AI1 0–10 V or 0–20 mA, AI2 −10–+10 V or 0–20 mA.
1 analog output 0–10 V or 0–20 mA and 1 high-speed digital output up to 50 kHz.
1 relay output: changeover contact, 250 V AC / 3 A or 30 V DC / 1 A.
RS-485 with Modbus RTU as terminal, RJ45 for the external keypad.
USB-C: parameter setting, parameter copy and monitoring with the INVT Workshop software — the PC powers the control electronics, no mains voltage and no interface converter needed.
Spring-clamp terminals for the control wiring, one slot for expansion cards.
⚠️ Before Ordering
Select by output current, not by kW: The motor rated current must match the inverter's output current. The kW figure in the model name applies to heavy duty and a standard four-pole motor.
EMC filter: With the built-in filter, the single-phase models meet category C2, the three-phase models C3. C2 on three-phase units requires an external filter.
External brake resistor: The brake chopper is built in; the resistor is connected to (+)/PB. Do not go below the minimum resistance for each power rating.
Using STO: The STO inputs are jumpered at the factory. If STO is part of your safety concept, remove the jumpers and wire a safety relay or safety PLC.
Keypads: A simple LED keypad is built in. For the cabinet door, the BOP-270 (LED) and SOP-28 (LCD) keypads are available. While a USB-C cable is plugged in, the external keypad is disabled.
🔧 Frame Sizes, Environment and Mounting
Frame A (230 V: 0.2–0.75 kW · 400 V: 0.4–1.1 kW): 60 × 190 × 155 mm, approx. 1.25 kg, fanless
Frame B (230 V: 1.1–2.2 kW · 400 V: 1.5–4 kW): 70 × 190 × 155 mm, approx. 1.3 kg
Frame C (400 V: 5.5–7.5 kW): 90 × 235 × 155 mm, approx. 2.1 kg
Frame D (400 V: 11–15 kW): 130 × 250 × 185 mm, approx. 3.55 kg
Frame E (400 V: 18.5–22 kW): 160 × 300 × 190 mm, approx. 4.9 kg
Mounting: wall mounting with two screws (A/B), DIN rail with the AP-RB-A-01 adapter (A/B), flange mounting with the heat sink outside the cabinet (C/D/E). Below 40 °C ambient temperature, units may be mounted side by side without clearance.
IP20. Operation −10 °C to +50 °C (heavy duty without derating), storage −20 °C to +70 °C, humidity below 95 % non-condensing, above 1000 m 1 % derating per 100 m. Coated PCBs to 3C2/3S2.
🏷️ Manufacturer and Reliability
INVT Electric from Shenzhen is one of the major Chinese manufacturers of drive technology. The GD28 is certified to CE, UL and TÜV; all models reach efficiency class IE2. INVT frequency inverters are in productive use at numerous spstiger customers — with support in German directly from us.
- Min. 1 Variant available.
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: Built-in STO SIL 3 / PL e
- Product Benefits 2: Built-in brake chopper & EMC filter
- Product Benefits 3: Modbus RTU, optional PROFINET & EtherCAT
- Product Benefits 4: USB-C: set parameters without mains power
- Product Benefits 5: 150 % for 60 s, 180 % for 10 s
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
INVT frequency inverter GD350-UL, vector control with closed control loop-certified-IP20
The GD350-UL frequency inverter is a device variant of the GD350 that was specially developed for the US market (including Canada). It has UL approval and is designed for the 460 V AC mains voltage in US three-phase grids. This model is therefore ideal for machines and systems that are to be exported to the USA.The expansion cards of the GD350 / GD270 series also work for the GD350-UL.The file number for these devices at UL is E364851. The certification is also valid for Canada.Here is the entry in the UL database:https://productiq.ulprospector.com/en/search?term=GD350
- Min. 1 Variant available.
- Delivery Time : 3 bis 5 Tage
INVT frequency inverter vector control GD-27, STO function, applicable for AM and PM, IP20
€341.70 *
The GD27 from INVT is a flexible and compact frequency inverter that is ideal for use in series machines.STO function (SIL 2) for safe shutdown and requirements in accordance with the Machinery Directive Built-in EMC filter (C2 for 230 V, C3 for 400 V) Suitable for three-phase asynchronous and synchronous motors Integrated brake chopper for inertial generative loads GD27 models with 230 V and 0.4 kW or 0.7 kW are passively cooled and have no fan The spring terminals for the I/O on the front are very suitable for quick wiring in series machines Note: The digital input terminals are NPN (negative switching). They must therefore be controlled with a relay output or NPN output. Alternatively, the control commands can also be transmitted via Modbus RTU (2-wire). This saves wiring work and increases the variety of functions that can be addressed via the control unit. If you require digital inputs in PNP version (positive switching), the INVT GD20 is well suited.
- Available
- Delivery Time : 3 bis 5 Tage
- Product Benefits 1: STO (SIL2)
- Product Benefits 2: Integrated C2 filter
- Product Benefits 3: Asynchronous and synchronous motors
- Product Benefits 4: Modbus RTU
- Product Benefits 5: Integrated brake chopper
Variants from €108.80 *
Available, delivery time: 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
EC-TX149 communication extension for INVT GD28 frequency inverters
From
€76.80 *
INVT EC-TX149 - Industrial Ethernet communication card for INVT GD28
Your GD28 now speaks five languages - simultaneously.
With the optional EC-TX149 expansion card, you can transform your INVT GD28 frequency inverter into a fully-fledged Industrial Ethernet device. Simply plug it into the expansion card slot of the GD28, select the protocol via parameter P24.00 - and you're done. No external hardware, no additional control cabinet space.
Maximum protocol diversity on one card
The EC-TX149 supports up to five Industrial Ethernet protocols, which can be conveniently switched via parameter settings:
PROFINET - incl. MRP ring redundancy and GSDML configuration file; compatible with Siemens and other PROFINET masters
EtherCAT - according to CiA 301/402 (CoE); XML configuration file for Beckhoff TwinCAT, INVT AX controller and many more.
EtherNet/IP - according to ODVA standard incl. DLR ring topology; EDS file for Rockwell/Allen-Bradley and OMRON NJ/NX
Modbus TCP - several masters possible at the same time; compatible with Schneider Electric and INVT AX
EtherNet UDP - for individual communication solutions
Two RJ45 ports for maximum flexibility
The card has two RJ45 interfaces (100 Mbit/s full duplex). This allows all common network topologies to be implemented: Line, star - and with PROFINET and EtherNet/IP also ring topologies for increased network redundancy. With EtherCAT, the ports are designed as dedicated IN and OUT ports.
- Available
- Delivery Time : 3 bis 5 Tage
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Keypad BOP-270 for INVT frequency inverters GD270 and GD28
Simple external control panel for INVT GD28 and GD270 frequency invertersThe control panel can be used to:
Transfer parameters from one frequency inverter to anotherParameterize the frequency inverter remotelyOperate the frequency inverter remotelyIt is connected via a normal network cable.
The control panel is an LCD display with multi-line text display (English) for easy parameterization.
- Min. 1 Variant available.
- Delivery Time : 3 bis 5 Tage
INVT Workshop Software zur Parametrierung der INVT Frequenzumrichter
Die INVT-Workshop-Software ermöglicht die Parametrierung der INVT-Geräte am PC.
Die Software unterstützt folgende Funktionen:Verbinden mit den INVT GD Frequenzumrichtern über RS-485, Netzwerk oder USB-C (GD28)Anzeige und Änderung der aktuellen Parameter des FrequenzumrichtersImport und Export der ParametersätzeScoping-Funktion, zum Aufzeichnen von Lastkurven und anderen Kennlinien der FrequenzumrichterEinfache HMI-Funktion zur Darstellung und Steuerung von Parametern am PC
- Available
INVT encoder extension for GD270 and GD350A frequency inverters
- Min. 1 Variant available.
- Delivery Time : 1-3 days
LCD keypad SOP-28 for INVT GD28 frequency inverter
LCD control panel for frequency inverters
INVT GD28
The control panel can be used to:
Transfer parameters from one frequency inverter to anotherParameterize the frequency inverter remotelyOperate the frequency inverter remotelyIt is connected via a normal network cable.
The control panel is an LCD display with multi-line text display (English) for easy parameterization.
- Min. 1 Variant available.
- Delivery Time : 3 bis 5 Tage

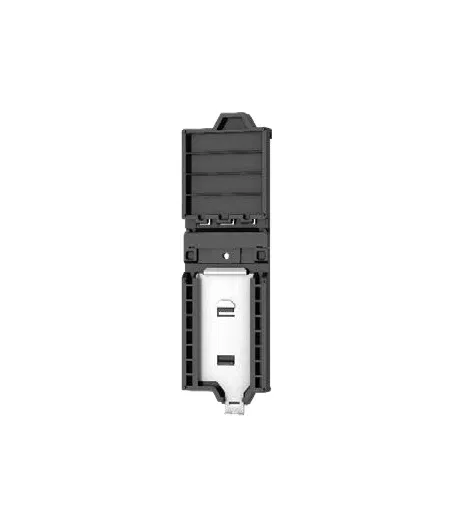

DIN-Schienen-Adapter für Frequenzumrichter INVT GD28.AP.RB.01.27
From
€4.32 *
- Available
- Delivery Time : 3 bis 5 Tage
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Installation frame for external INVT control panels
Installation frame for external INVT control panels for INVT frequency invertersScope of delivery: Installation frame without control panel
- Available
