Kinco GW01 IoT Series Remote Service HMI with Ethernet

Quantity Unit price
To 3
€157.98*
To 19
€152.94*
To 39
€150.50*
To 99
€142.14*
From 100
€126.39*

Available, delivery time: 2-5 days

Product number:
KIH.GW01
Manufacturer no.:
GW01
Create PDF quotation
Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.
Product information "Kinco GW01 IoT Series Remote Service HMI with Ethernet"

The GW01 is an IoT remote HMI without screen with a resolution of 800 * 480 pixels from Kinco with Ethernet interface. It has an integrated VPN remote maintenance and remote download function and automatically connects to a remote maintenance server in Frankfurt am Main on a network. It is connected to a router via Ethernet.

The HMI can be operated on the internal network or remotely via VNC, the HMI does not have its own screen.

The HMI offers the possibility of pass-through communication with PLCs via Ethernet or serial interface. It is thus suitable as a remote maintenance gateway for the connected PLCs.

.

The HMI is also suitable as MQTT publisher and subscriber and as OPC UA client and server.

The HMI is programmed via the free software Kinco DTools. You can find this further down on this page as a download. The software is available in German language.

You can connect PLCs, frequency converters and other devices that you want to visualize or control via Ethernet and serial interface. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine controls or smaller plant control elements.

The device supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (Master and Slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many others.

Features (excerpt):

  • Various graphical elements for display and operation
  • .
  • Animations
  • Individual graphic elements and images possible
  • .
  • Extensive data logging
  • Recipe management
  • VNC server and client for remote control (e.g. from smartphone or browser)
  • PDF display on the HMI (new)
  • User management and security
  • Alarms and Events
  • Individual language switching for users programmable via text tables
  • .
  • C macros for complex calculations
  • Program and recipe download via USB, USB stick, or Ethernet
  • FTP server to retrieve CSVs and log files
  • .
  • XY graphs with up to 64 characteristics possible, histograms
  • .
  • Generation and display of QR codes
  • .
  • Scheduler for calendar controlled functions
  • .
  • ...

Note for new customers: You can test this device for 30 days without obligation. This device is of course also available for existing customers to order normally at the price shown.
This is how the test works for new customers: the first time you order this device, we offer you a 30-day return policy.
Within 30 days, you can return this device to us as a first-time buyer.
You will not pay the invoice until the trial period is over and you have decided to use the device.
To do so, order this device normally, we will automatically ship initial orders as a trial device.
If you have any technical questions during the trial, feel free to write to us at support@spstiger.de.

Kinco HMI are now in use at well over 100 of our customers in Germany.
We are convinced that Kinco's HMI touch panels also open up a particularly cost-effective way for you, as an automation or machine and plant manufacturer, to provide your customers with modern and versatile operator interfaces.



Electrical properties
Dielectric strength: 500 VAC 1 minute
Isolated power supply: no
Nominal supply voltage: 24 V DC
Permissible voltage range: 12 - 28 VDC
Power consumption: 2 Watt
Display
Backlight: LED
Display colors: 16.7 million
Screen resolution: 800 * 480
Interfaces, protocols and connections
CANopen: no CANopen
Communication driver for PLCs: ABB AC500 (serial + Ethernet), Allen Bradley (serial + Ethernet), BACnet (serial + Ethernet), Beckhoff Twincat ADS (Ethernet), Codesys V2 (Ethernet), Codesys V3 (Ethernet), Emerson RX3i (Ethernet), GE SNP (serial), IDEC MicroSmart (Ethernet only), IDEC MicroSmart (serial + Ethernet), Kinco PLC (serial + Ethernet), Mitsubishi FX (serial + Ethernet), Mitsubishi Q (serial + Ethernet), Modbus master and slave (serial + Ethernet), Omron (serial + Ethernet), Schneider (serial + Ethernet), Siemens LOGO! (Ethernet), Siemens S7-200 (serial + Ethernet), Siemens S7-300/400 (serial + Ethernet), Siemens S7-1200/1500 (Ethernet), Unitronics (serial + Ethernet), Xinje XC (serial), Xinje XD (serial + Ethernet), Xinje XD/XL (serial + Ethernet)
Ethercat: no Ethercat

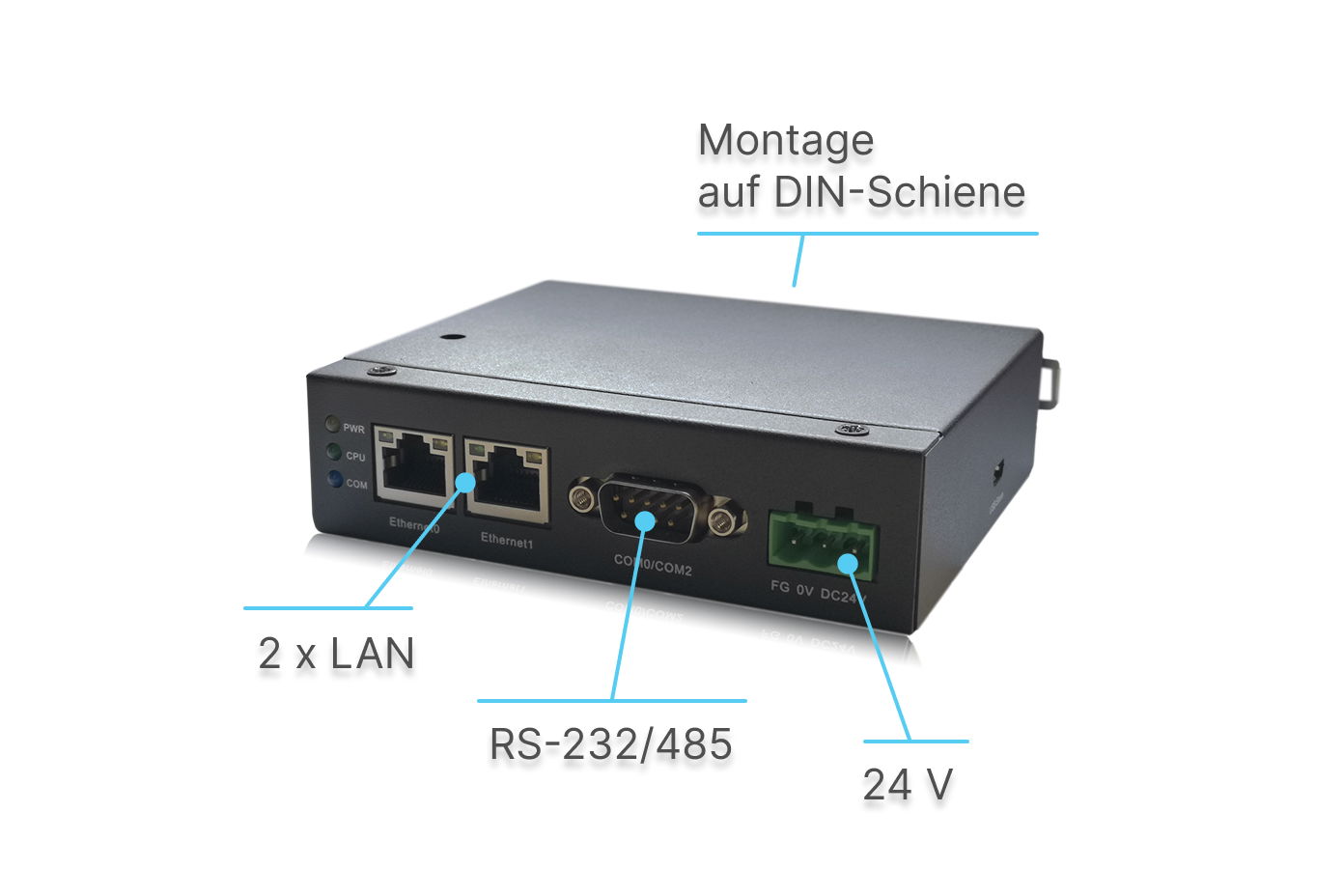

Ethernet: 2 x 10/100 (RJ45)
Fieldbuses & protocols: Free serial communication (ASCII), Modbus RTU Master, Modbus RTU slave, Modbus TCP Master (Client), Modbus TCP slave (server), Siemens MPI (as PPI only for one participant)
Free serial communication: Yes (ASCII)
Interfaces: Ethernet, RS-232, RS-485, USB slave
Isolated serial interface: no
MQTT: MQTT Consumer, MQTT Producer
Modbus: Modbus RTU Master, Modbus RTU slave, Modbus TCP client (master), Modbus TCP server (slave)
OPC UA: OPC UA Client, OPC UA Server
Profibus DP: No Profibus
RS-232 connection type: DB9 Female
RS-485 connection type: DB9 Female
SD card: none
Serial connections: COM0: RS-232/RS-485/RS-422, COM2: RS-232
USB slave connections: 1 x USB slave (program download only)
VPN: Integrated VPN function for remote control and remote maintenance
WLAN: not available
Dimensions and environmental properties
Assembly: DIN rail
Cooling: Ambient air (passive)
Dimensions (width x height x depth): 112 mm x 94 mm x 30mm
Housing material: Technical plastic
Operating temperature range: - 10 °C to + 55 °C
Protection class: IP20
Storage temperature range: - 20 °C to + 60 °C
Weight: 0.3 kg
Other properties
Data logger: Yes
Memory: 128 MB DDR3 RAM memory, 128 MB NAND flash memory
Model series: Green Series
Real-time clock: Yes (synchronization with network time possible)
Programming
Language of the programming environment: Arabic, Chinese, English, German, Korean, Russian, Turkish
Programming languages: C (standard C) for macros, Graphical programming interface
Programming software: Kinco DTools
Certifications
CE certificate: Yes
Standards and certifications: CE (EN61000-6-4:2007+A1:2011, EN61000-6-2:2005)
