Free template for your own Kinco HMI projects in Kinco DTools 4.4 and 4.5: German user interface in spstiger design, larger keyboards and system windows, custom system messages, a settings page and language switching German/English. Open the project, add your own screens from number 100, get started.
Included:
- Start screen with language switching

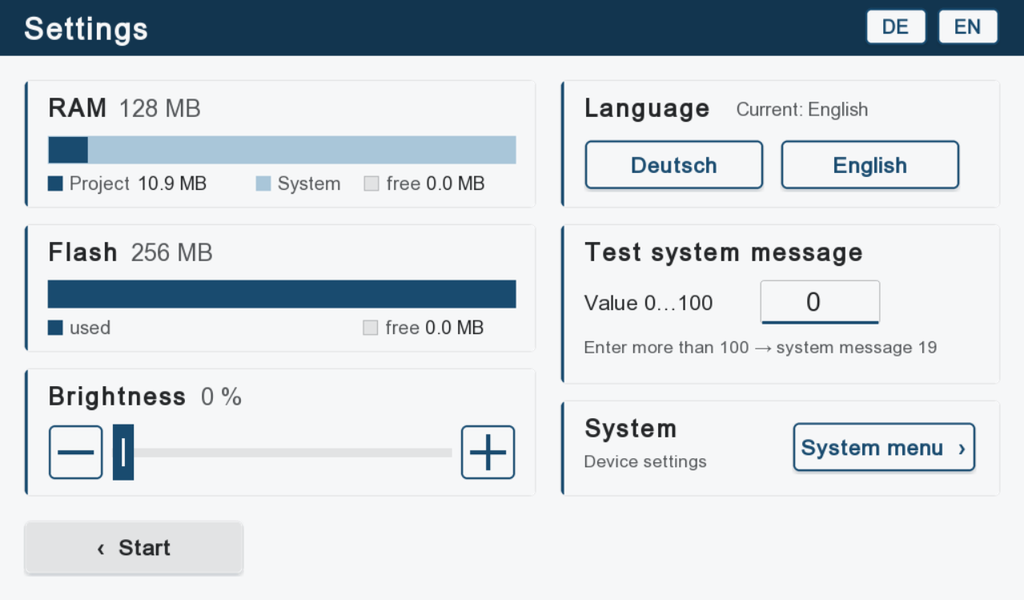

- Settings page with RAM and flash display, brightness control, language selection, system message test and access to the system menu

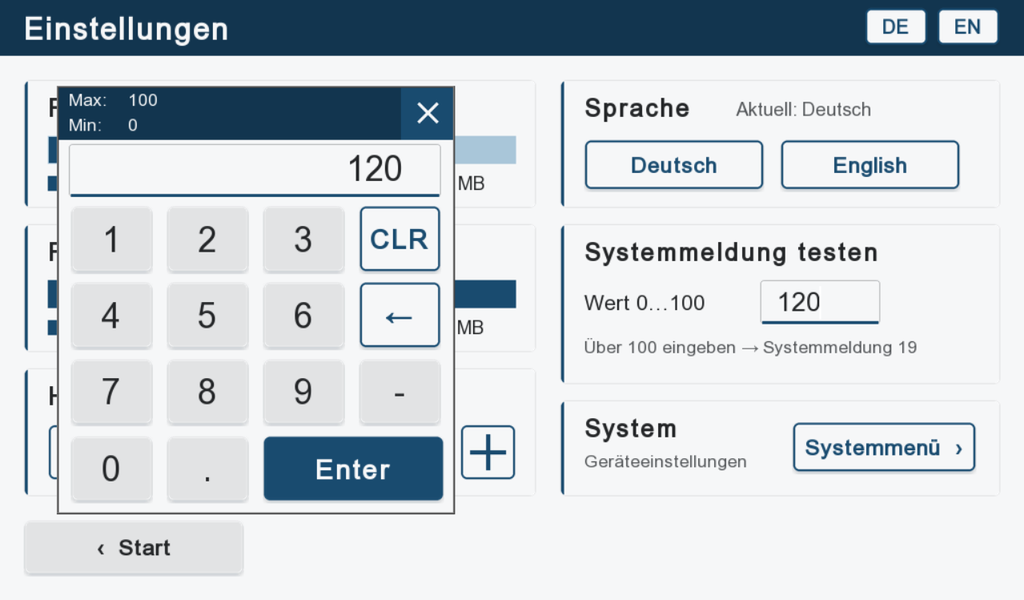

- System windows in spstiger design: numeric keypad, hex and text keyboard (QWERTZ), login, confirmation, password, file list
- Custom system messages centred on the screen, in German or English
- All texts in the text library, further languages can be added
Projects for these devices, each for DTools 4.4 and 4.5:

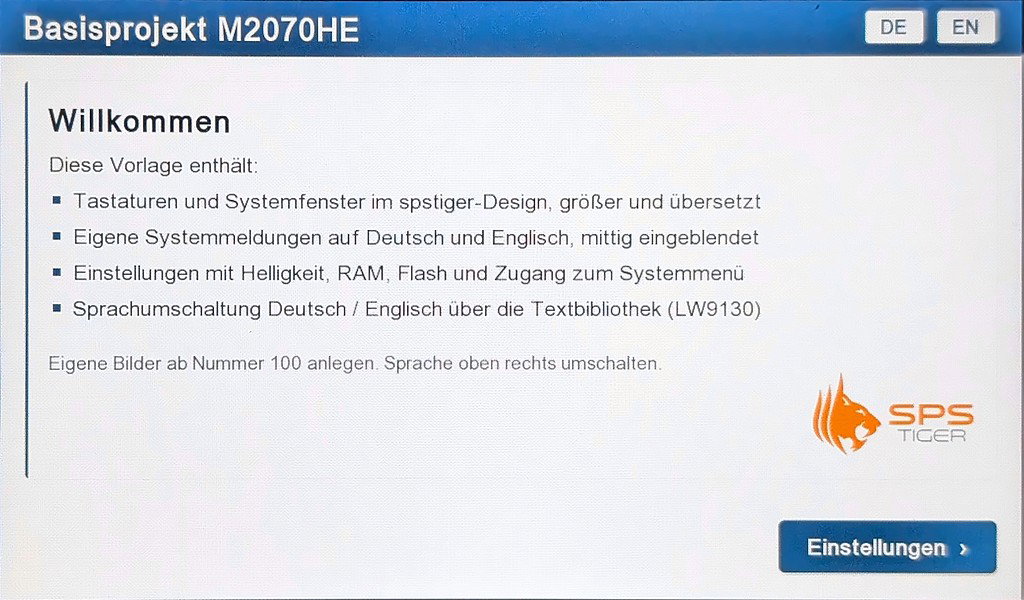

- 1024 × 600: M2070HE, M2100E, G100E2-WiFi-PR01
- 800 × 480: M2043HE, MK070E (with integrated PLC)
- 480 × 272: GL043E, MK043E (with integrated PLC)
- 1920 × 1080: GT2156E
For another Kinco HMI, take the project with the same resolution and change the HMI type in DTools. Before using it on a machine, replace the template passwords with your own; they are the Kinco factory defaults. All notes on customising are in the README inside the ZIP.
MIT licence: free to use, including in commercial projects, without warranty. The project is also available on GitHub: Kinco-HMI-DTools-Basisprojekt-deutsch.
