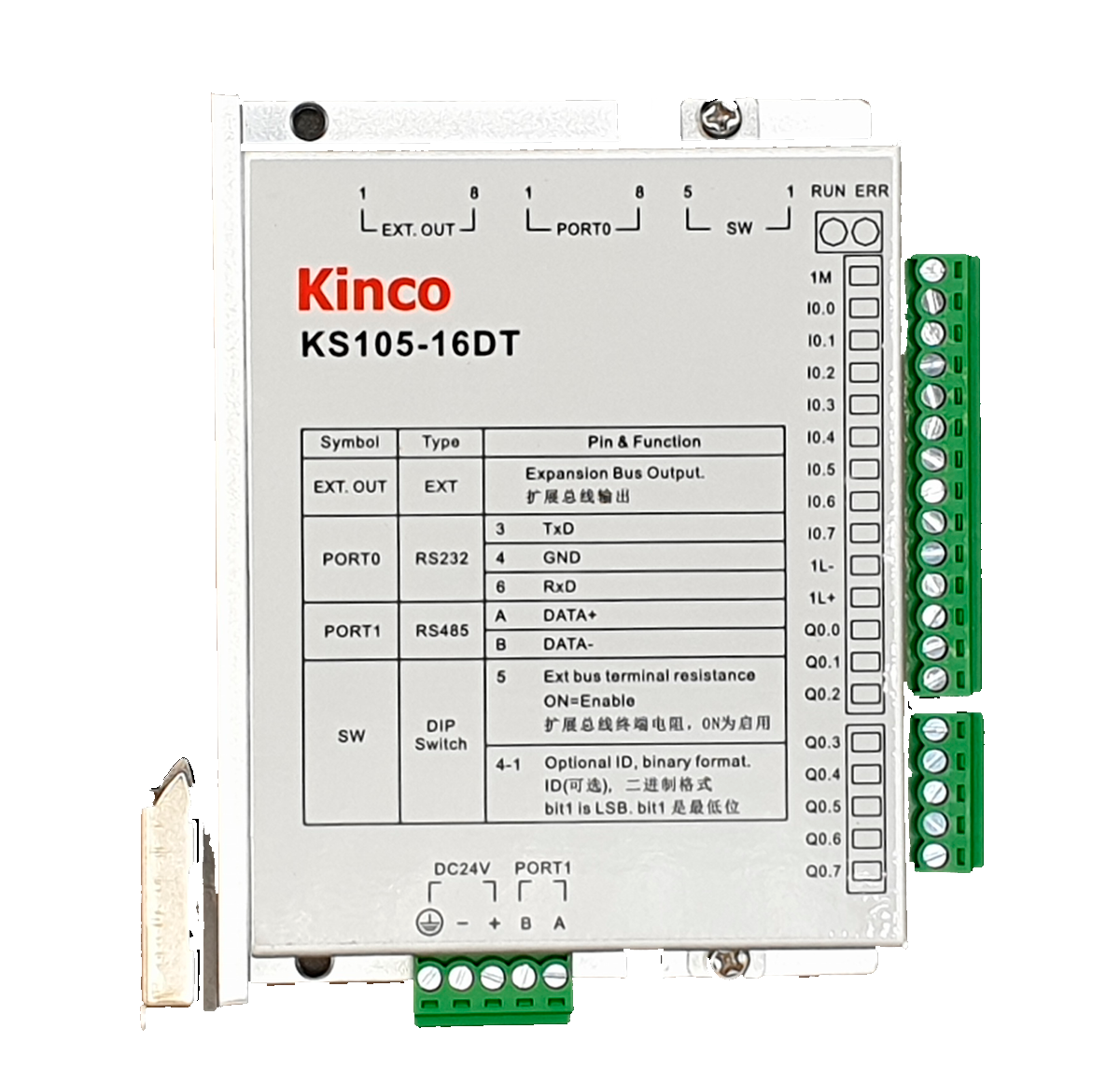

Kinco PLC KS105-16DT - 16 I/O (expandable)

€82.35*

Prices excl. VAT plus shipping costs

1 Review

Available, delivery time: 3 bis 5 Tage

Product number:

KIP.KS105.16DT

Manufacturer no.:

KS105-16DT

Manufacturer

Kinco

Create PDF quotation

Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.

Product information "Kinco PLC KS105-16DT - 16 I/O (expandable)"

8 digital inputs 24 VDC (PNP)
8 digital outputs transistor 24 VDC

1 x RS-485 (Modbus RTU) + 1 x RS-232 (programming port)

You can program this compact Kinco KS-PLC with the free Kinco-Builder programming software (available as download a little further down on this page).

Scope of delivery: PLC

Electrical properties
Nominal supply voltage:	24 V DC
Permissible voltage range:	12 - 28 V DC
Digital I/O
Digital inputs (number & type):	8 (24 V DC PNP)
Digital outputs (number & type):	8 Transistor
Pulse inputs (designation and type):	4 (4 x 200 kHz)
Pulse outputs (designation and type):	4 (3 x 200 kHz, 1 x 10 kHz)
Switch type:	PNP
Analogue I/O
Analog inputs (number):	none
Analog outputs (number):	none
Interfaces, protocols and connections
CANopen:	no CANopen
Ethernet:	No Ethernet
Fieldbuses & protocols:	Free serial communication (ASCII) , Modbus RTU Master , Modbus RTU slave
Free serial communication:	Yes (ASCII)
Interfaces:	Kinco KS extension bus (RJ45)
Maximum possible number of extension modules:	14
Modbus:	Modbus RTU Master , Modbus RTU slave
Profibus DP:	No Profibus
RS-232 connection type:	RJ45
RS-485 connection type:	Terminal (A/B)
Serial connections:	Port 0: RS-232 , Port 1: RS-485
Terminal type:	Screw terminal
Dimensions and environmental properties
Assembly:	DIN rail , Screw mounting
Cooling:	Ambient air (passive)
Dimensions (width x height x depth):	25.4 mm x 100 mm x 75.5 mm
Housing material:	Metal
Operating temperature range:	- 10 °C to + 55 °C
Protection class:	IP20
Other properties
Model series:	KS
Real-time clock:	Yes (battery-powered, manual setting)
Year of market launch:	2018
Programming
Language of the programming environment:	Chinese , English
Programming languages:	Instruction list (AWL) , Ladder Diagram (KOP)
Programming software:	KincoBuilder
Certifications
CE certificate:	Yes
Standards and certifications:	CE (EN61000-6-4:2007+A1:2011, EN61000-6-2:2005)

Manufacturer "Kinco"

Kinco is one of the leading manufacturers of automation technology in Asia. The company's research and development team is based at its headquarters in Shenzhen (China) on the border with Hong Kong, and Kinco also operates a research center in Germany, a unique feature among Chinese companies.

In terms of quality and range of functions, Kinco is strongly oriented towards the European and German markets. Communication drivers for Siemens S7 controllers are therefore included in every HMI. The company has a modern and reliable range of HMIs, drive technology and controllers. Kinco already generates more than 10% of its turnover internationally, and Germany is one of the manufacturer's growth markets.
