Kinco Builder Pro - Programming software for Kinco PLCs of the GK2 series
- Free full version
- All five IEC 61131-3 languages
- Integrated simulator
- Function blocks with instances
Compatible PLCs
Customers also viewed
Customers also viewed
Kinco Builder Pro (KBP) is the free programming software for the PLC side of the Kinco GK2 – currently the GK2070HE-42DTP combined HMI and PLC with its GK20 expansion modules. If you want to program a controller with more than ladder diagram and instruction list – with all five IEC 61131-3 languages and function blocks with their own instance – this is the right tool.
🧩 Features

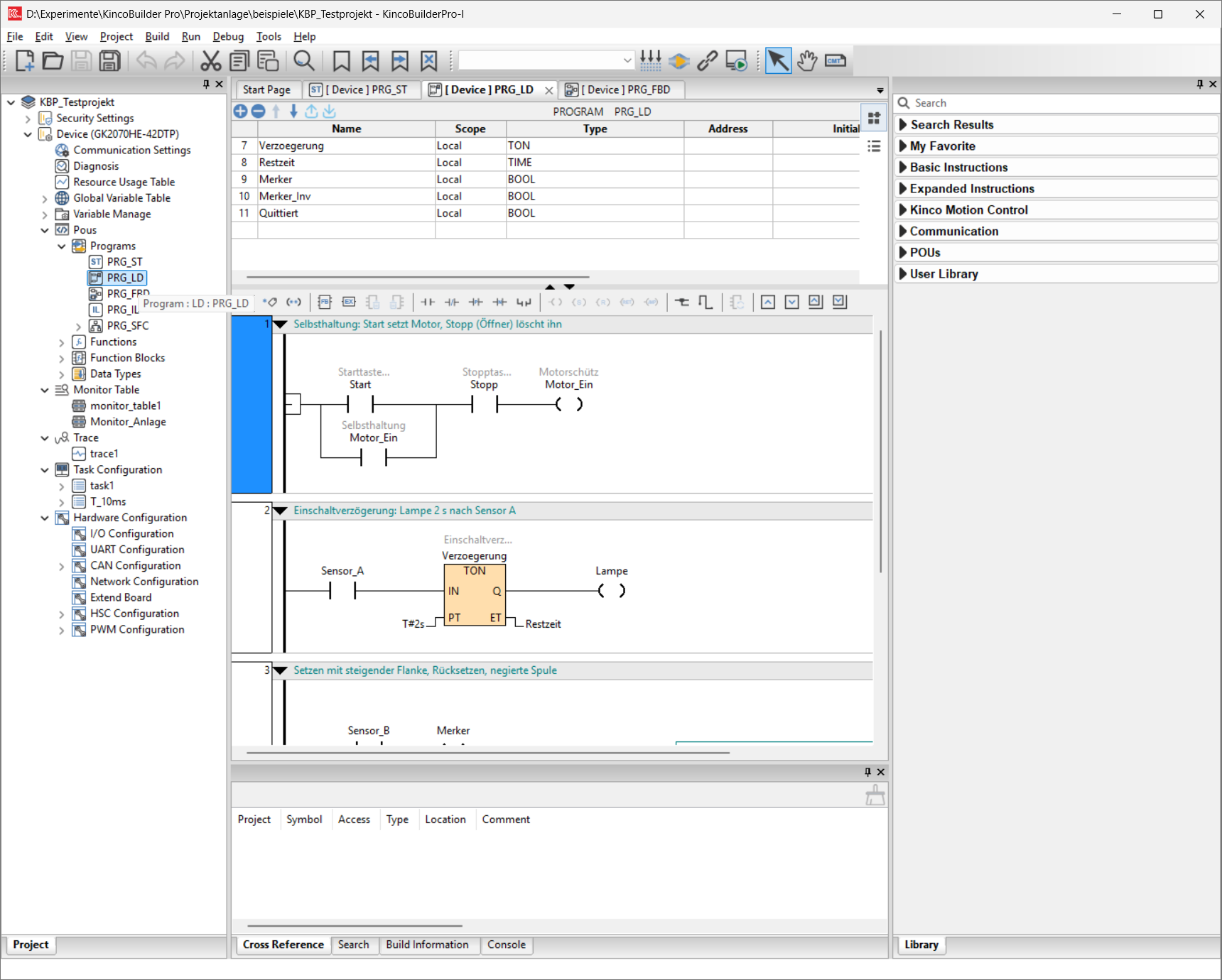

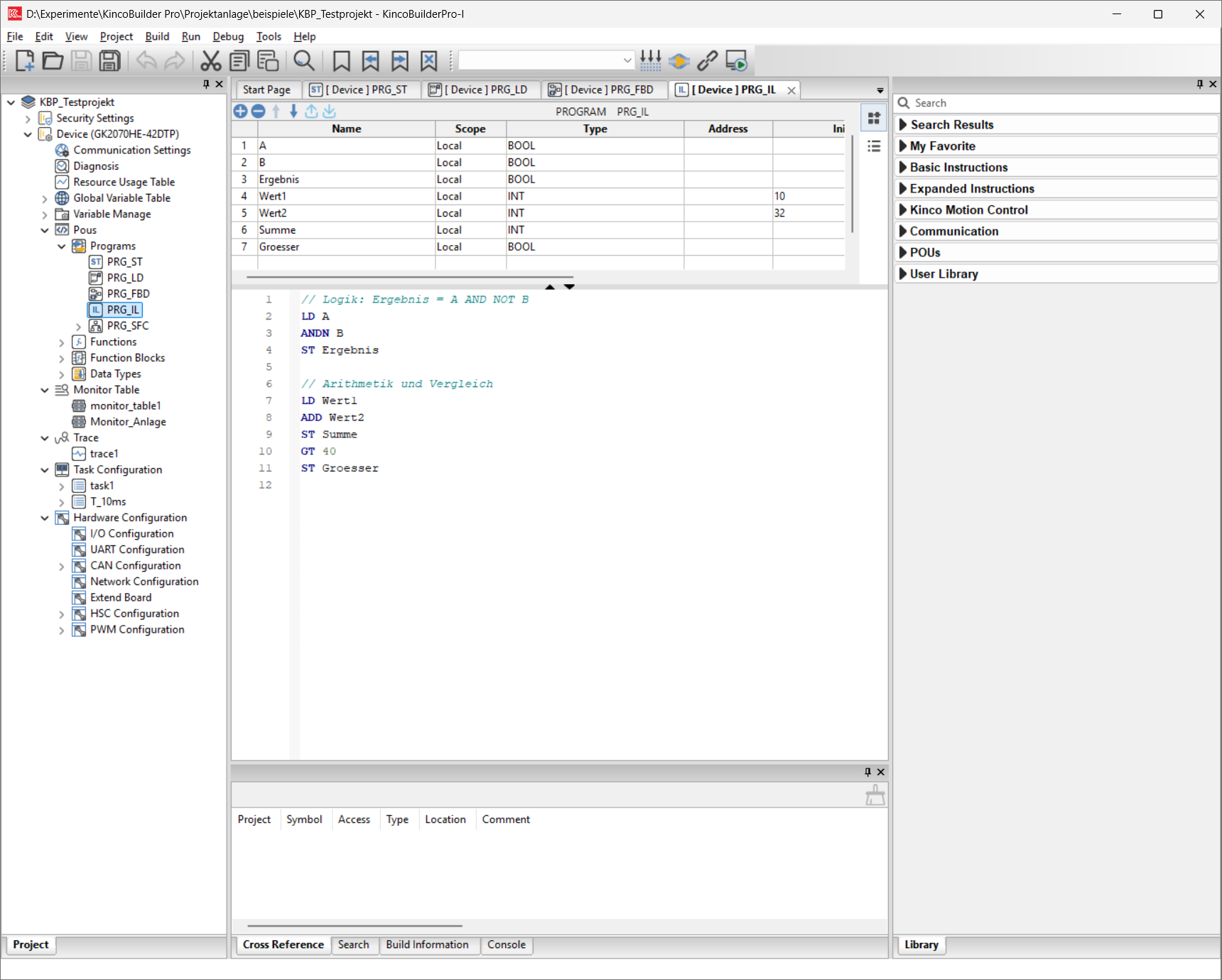

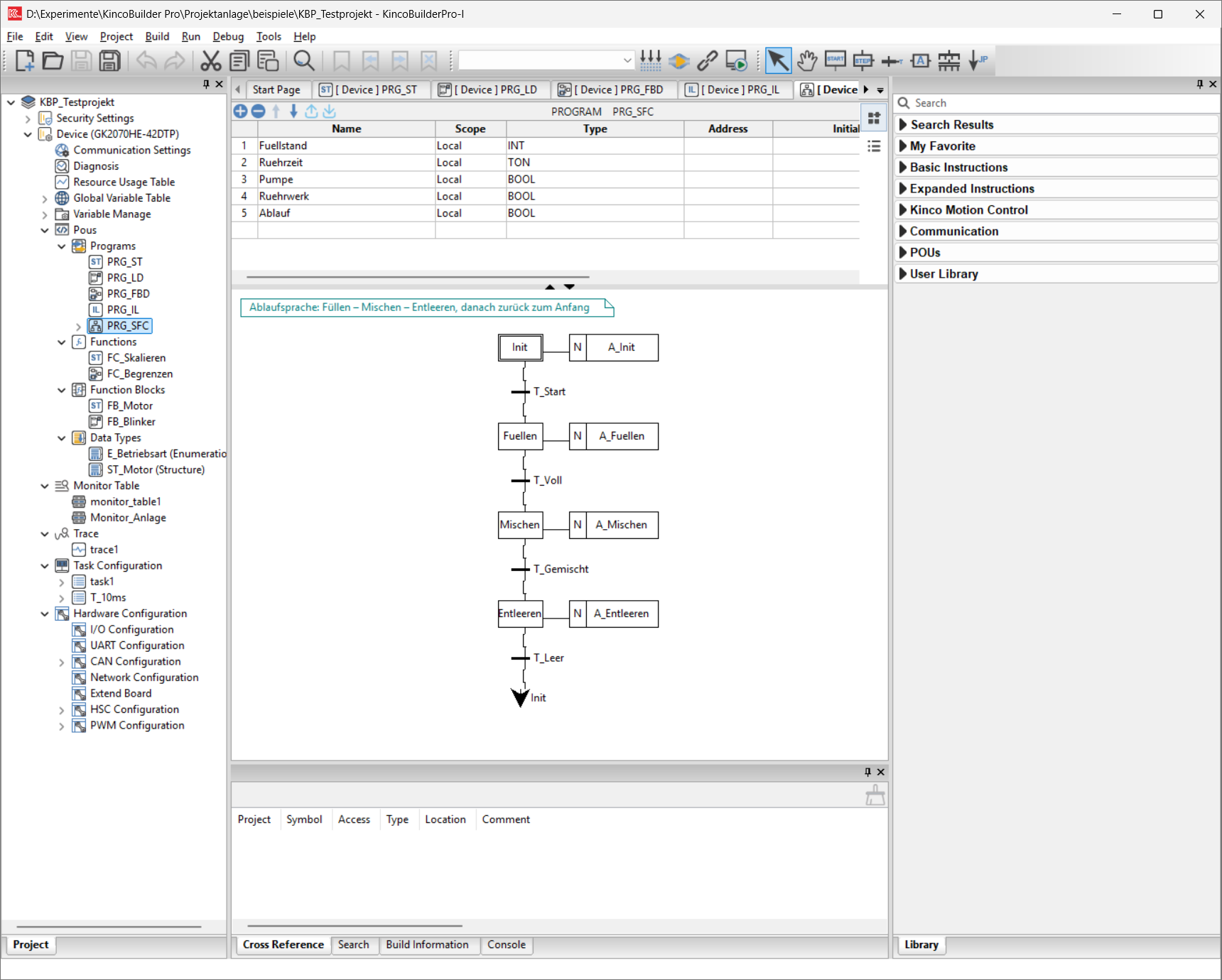

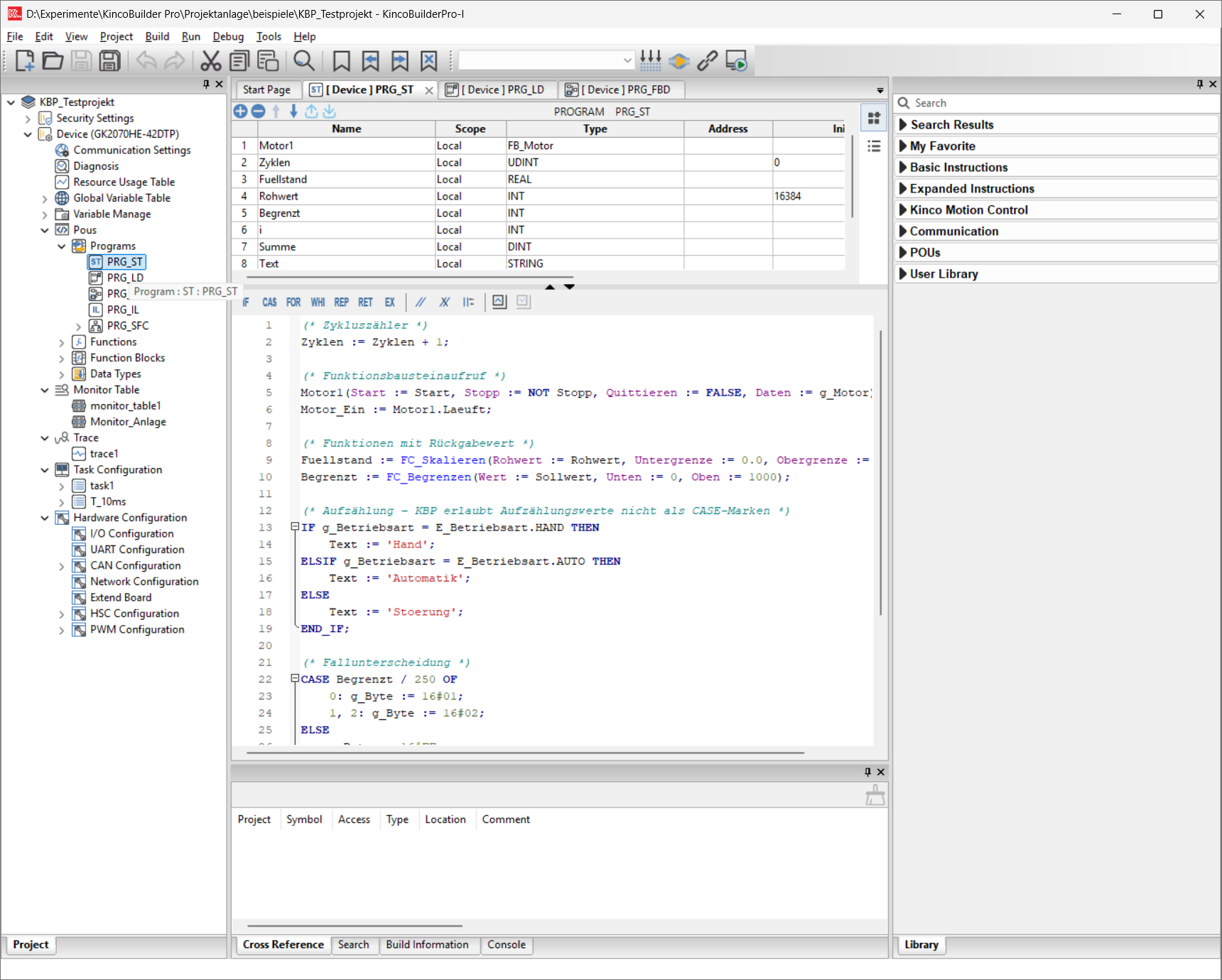

Structured Text (ST), Ladder Diagram (LD), Function Block Diagram (FBD), Instruction List (IL) and Sequential Function Chart (SFC)
User-defined functions, function blocks and data types (enumerations, structures)
Global variable tables, monitor tables and trace
Task configuration with multiple tasks

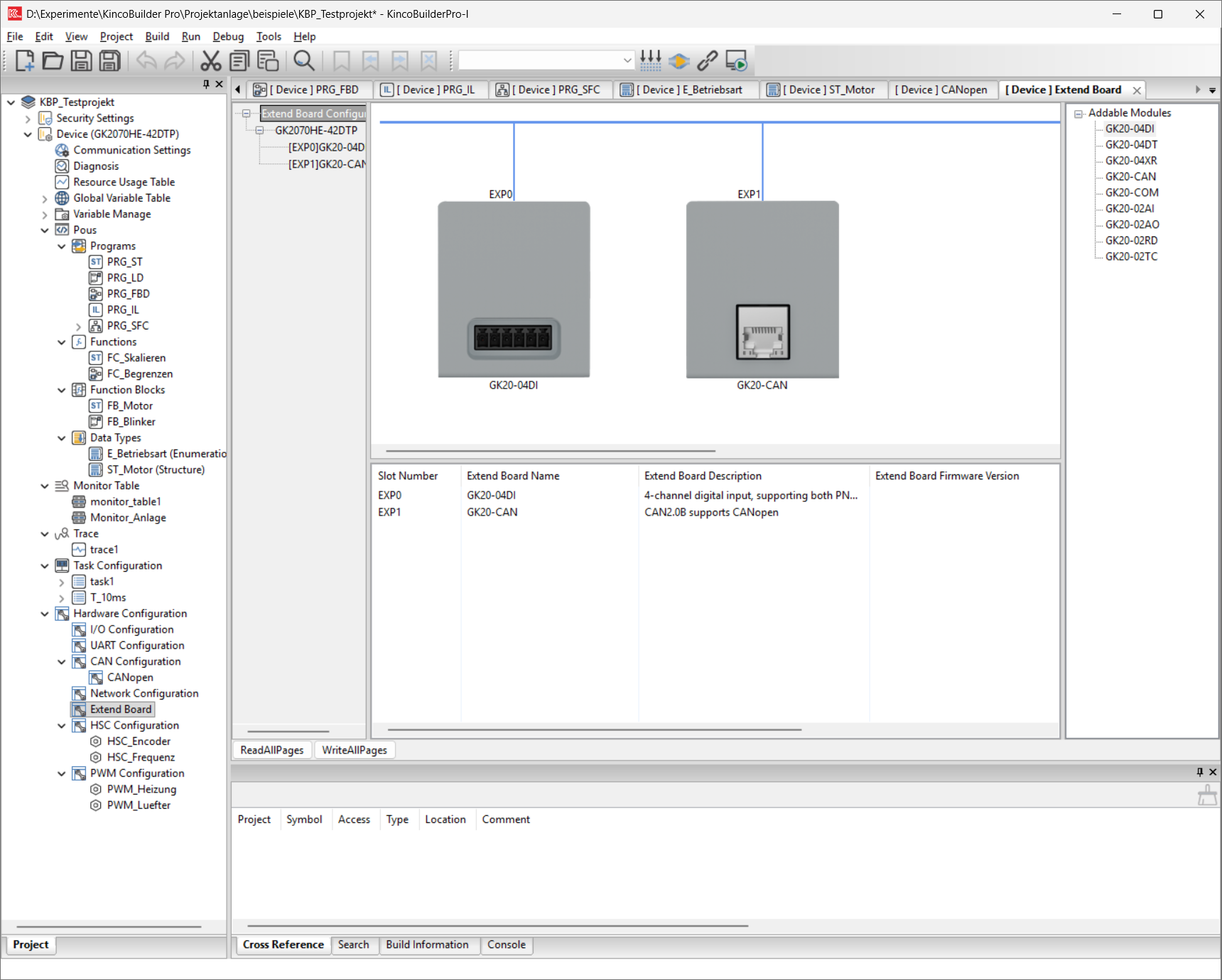

Hardware configuration: I/O, serial interfaces (UART), CANopen, network, expansion modules, high-speed counters (HSC) and PWM
Library with basic and expanded instructions, Kinco motion control and communication instructions

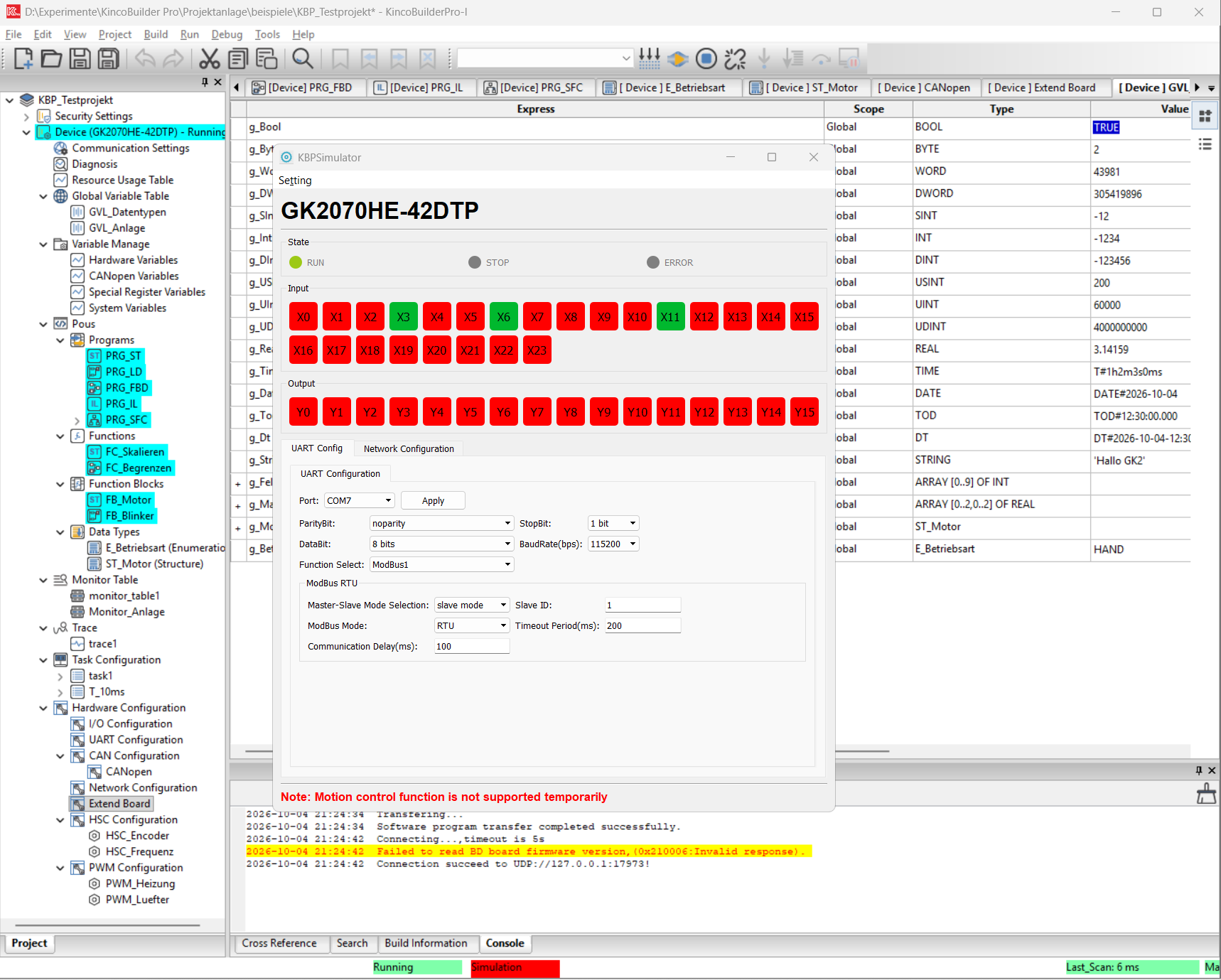

Integrated simulator: test programs without hardware and monitor them online (motion control functions are not simulated yet)
🔗 Which software for which device?
The GK2 has two programming environments: you program the controller with Kinco Builder Pro and the user interface with Kinco DTools Pro. For the MK, KS, K2, K6 and K6S controllers there is the classic Kinco Builder, which works with ladder diagram and instruction list.
📥 Download and manuals
You'll find the current version, the user manual and the function and function block manual in the Downloads tab.
💡 Note: The Kinco Builder Pro user interface is currently available in English only. We are working with Kinco on a German version.
Technical Specifications
| Other properties | |
| Operating System: | Windows |
|---|---|
| Programming | |
| Language of the programming environment: | English |
| Programming languages: | Function chart (FUP) , Instruction list (AWL) , Ladder Diagram (KOP) , Sequential function chart (AS) , Structured text (ST) |
