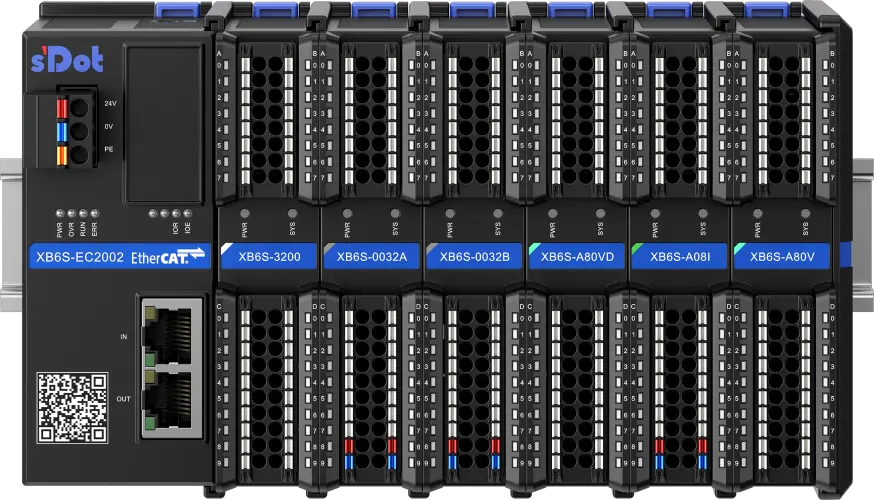

Solidot XB6S-EC2002 EtherCAT Bus Coupler

Quantity	Unit price
To 3	€126.40*
To 19	€120.08*
To 39	€113.76*
To 99	€107.44*
From 100	€101.12*

Prices excl. VAT plus shipping costs

Available, delivery time: 3 bis 5 Tage

Fieldbuses & protocols

Ethercat

Ethernet/IP

Modbus TCP

Profinet

Product number:

SD.XB6S.EC2002

Manufacturer no.:

XB6S-EC2002

Manufacturer

Solidot

Create PDF quotation

Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.

Product information "Solidot XB6S-EC2002 EtherCAT Bus Coupler"

The Solidot XB6S bus coupler forms the central interface between the controller and XB6S I/O modules. It enables reliable communication between the fieldbus and the connected input and output modules and ensures stable, fast data transmission throughout the entire system.

Depending on the variant, the bus coupler supports common industrial Ethernet protocols such as PROFINET, EtherCAT, EtherNet/IP or Modbus TCP and can be seamlessly integrated into existing automation environments. This makes the XB6S platform ideal for mechanical engineering, packaging machines, conveyor technology, intralogistics and distributed production systems.

The connected I/O modules are automatically recognized and supplied cyclically via the integrated backplane bus. The modular structure allows flexible expansion and adaptation to different applications - from simple digital signals to analog measured values or special modules.

Thanks to its compact design for the DIN rail, industrial-grade design and simple commissioning, the XB6S bus coupler offers a reliable solution for decentralized automation concepts in demanding environments.

Electrical properties
Input current (rated current):	600 mA
Nominal supply voltage:	24 V DC
Permissible voltage range:	18 V - 36 V
Interfaces, protocols and connections
Ethercat:	available
Ethernet:	2 x 10/100 (RJ45)
Fieldbuses & protocols:	Ethercat
Maximum possible number of extension modules:	32
Terminal type:	Spring clamp
Dimensions and environmental properties
Assembly:	DIN rail
Cooling:	Ambient air (passive)
Dimensions (width x height x depth):	106 mm x 43 mm x 61 mm
Housing material:	Technical plastic
Operating temperature range:	- 20 °C to + 60 °C
Protection class:	IP20
Storage temperature range:	-40 °C bis +80 °C
Weight:	0,157 kg
Other properties
Model series:	XB6S
Programming
Configurable via:	Web Browser
Language of the programming environment:	Chinese , English , German
Certifications
CE certificate:	EMC EN 61131-2 , EN IEC61000-6-2 , EN IEC61000-6-4

Manufacturer "Solidot"

Solidot was only founded in 2012 and is therefore still a relatively young company. It is now a leading manufacturer of remote I/O in Asia. The company specializes entirely in remote I/O and offers a wide variety of different bus couplers, form factors and assemblies.
