Kinco DTools Pro - free programming software for Kinco F2, G2 and GL2 series HMIs
Product number:
KIH.DTools.Pro
Manufacturer
Kinco
Create PDF quotation
Create PDF quotation for this product
Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.
Product information "Kinco DTools Pro - free programming software for Kinco F2, G2 and GL2 series HMIs"
Kinco DTools Pro is the free programming software for the Kinco HMI of the new F2, G2 and GL2 series
and offers extensive communication drivers for PLCs, many graphics and functions.
Modbus, Codesys, Siemens TIA, Siemens LOGO, Beckhoff ADS, OPC UA and many other PLC protocols are supported for communication.

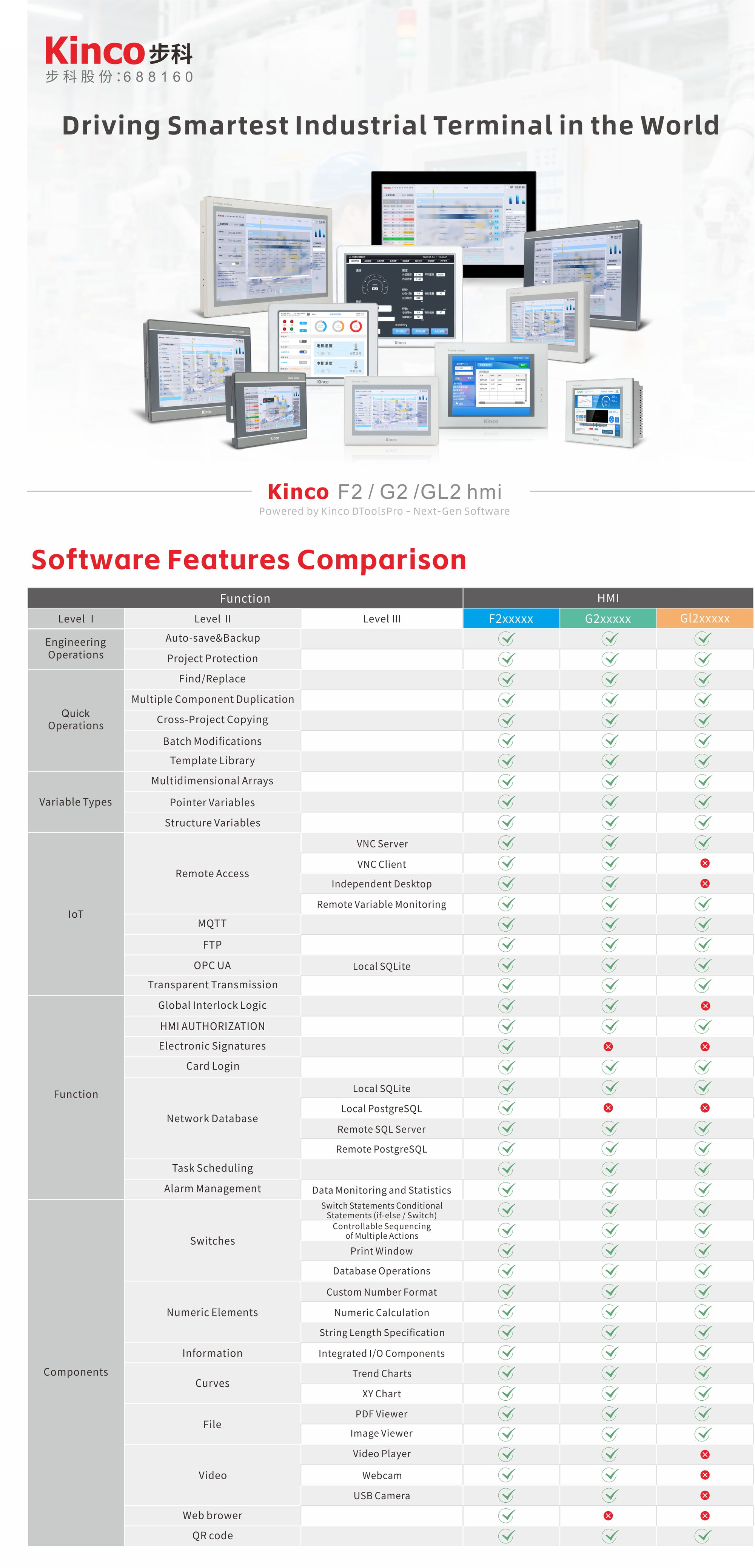

An excerpt from the range of functions:

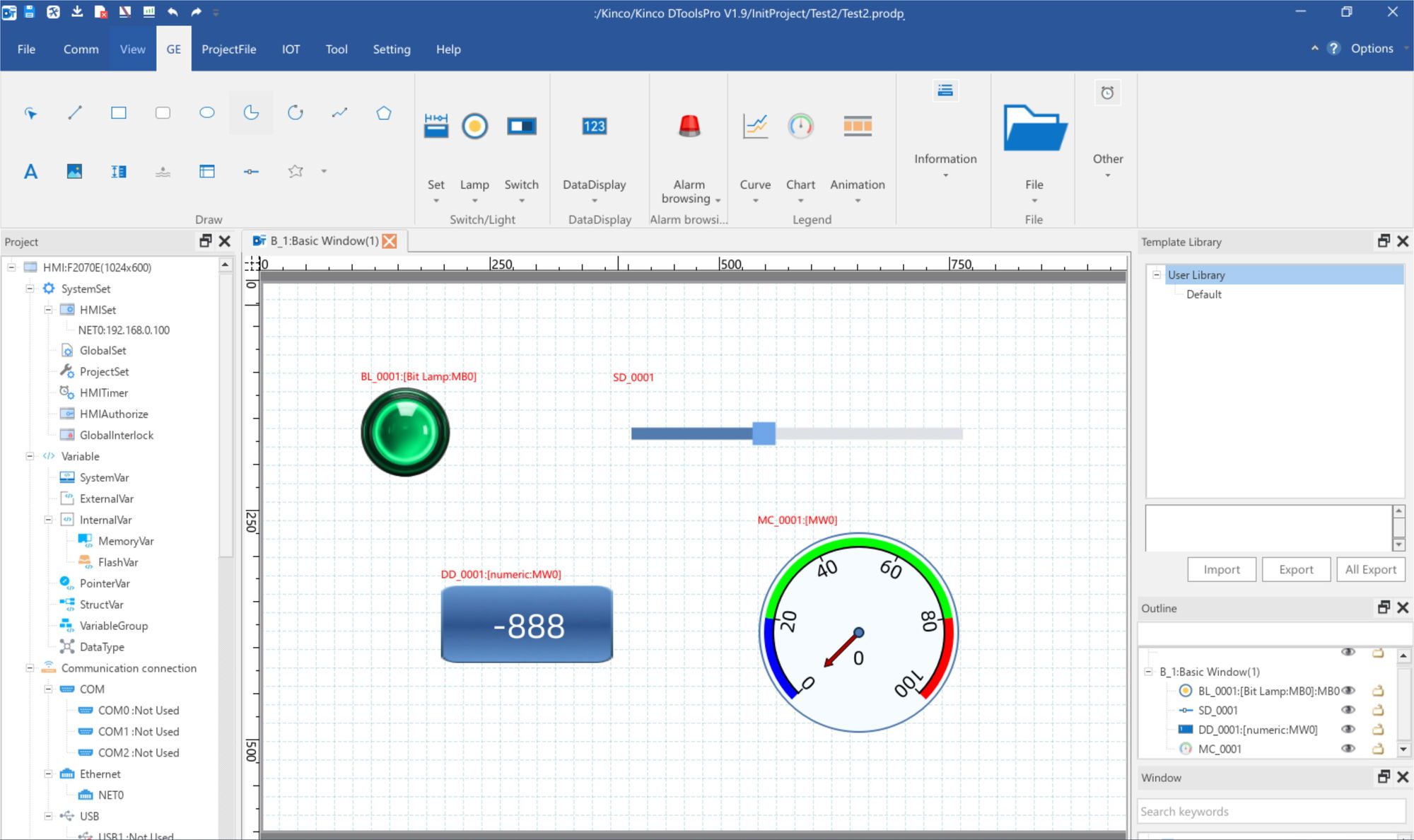

- Lamps, switches, numeric displays, text displays
- sliders, diagrams, scales

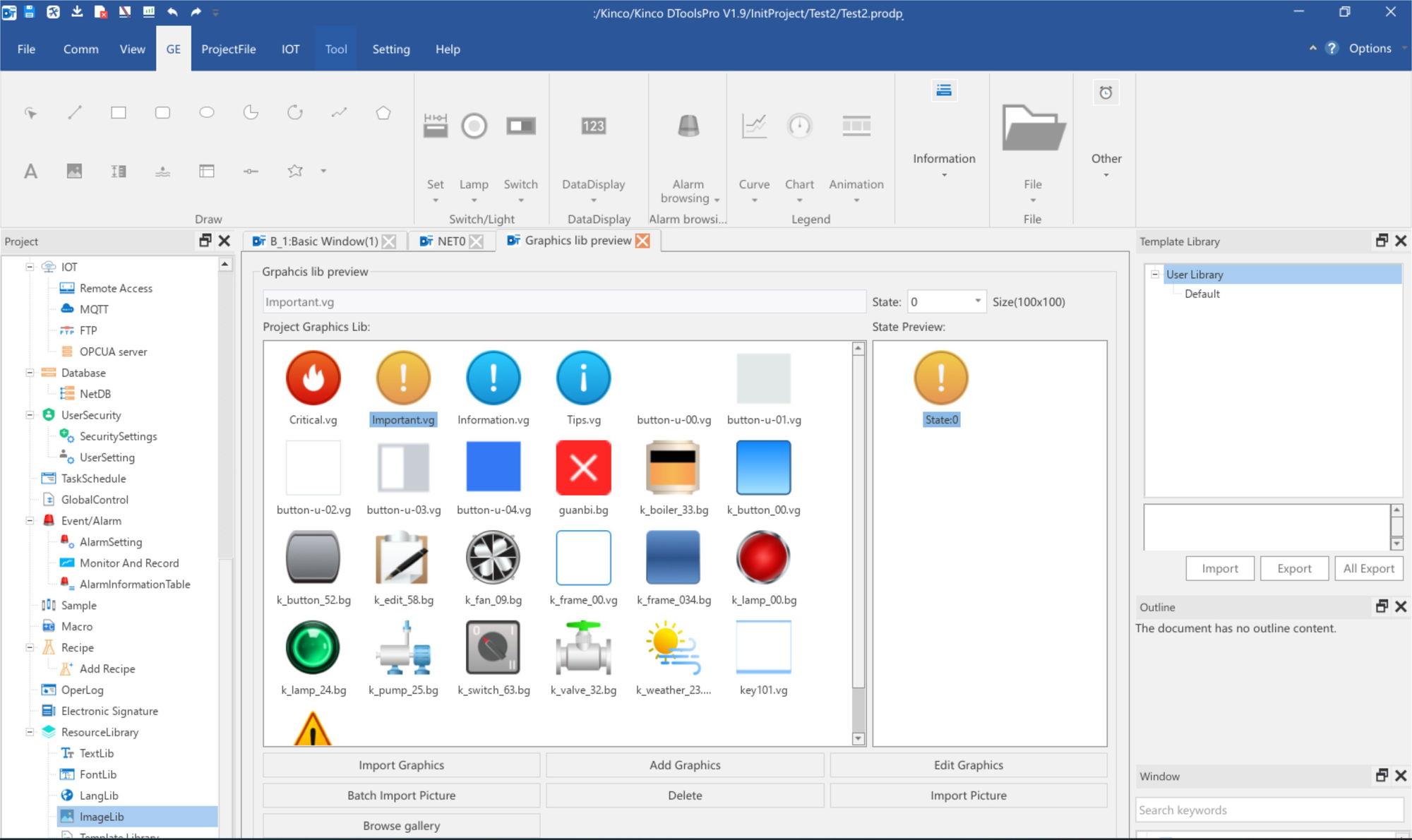

- Images and graphics, PDF display
- Alarms, events
- Recipe management
- Data logging, diagrams and the connection of relational databases
- VNC, MQTT, OPC UA, FTP,
- Remote control and program updates via VPN
- Macros for logic execution
- Text libraries for multilingual HMI
- Web cam, IP camera, videos (only F2 and G2, not GL2)
- Electronic signatures, web browser (only F2, not G2 and GL2)
You can find the current version directly in the Downloads tab.
The user manual is available in DTools Pro in the "Help" menu under "Help Document"

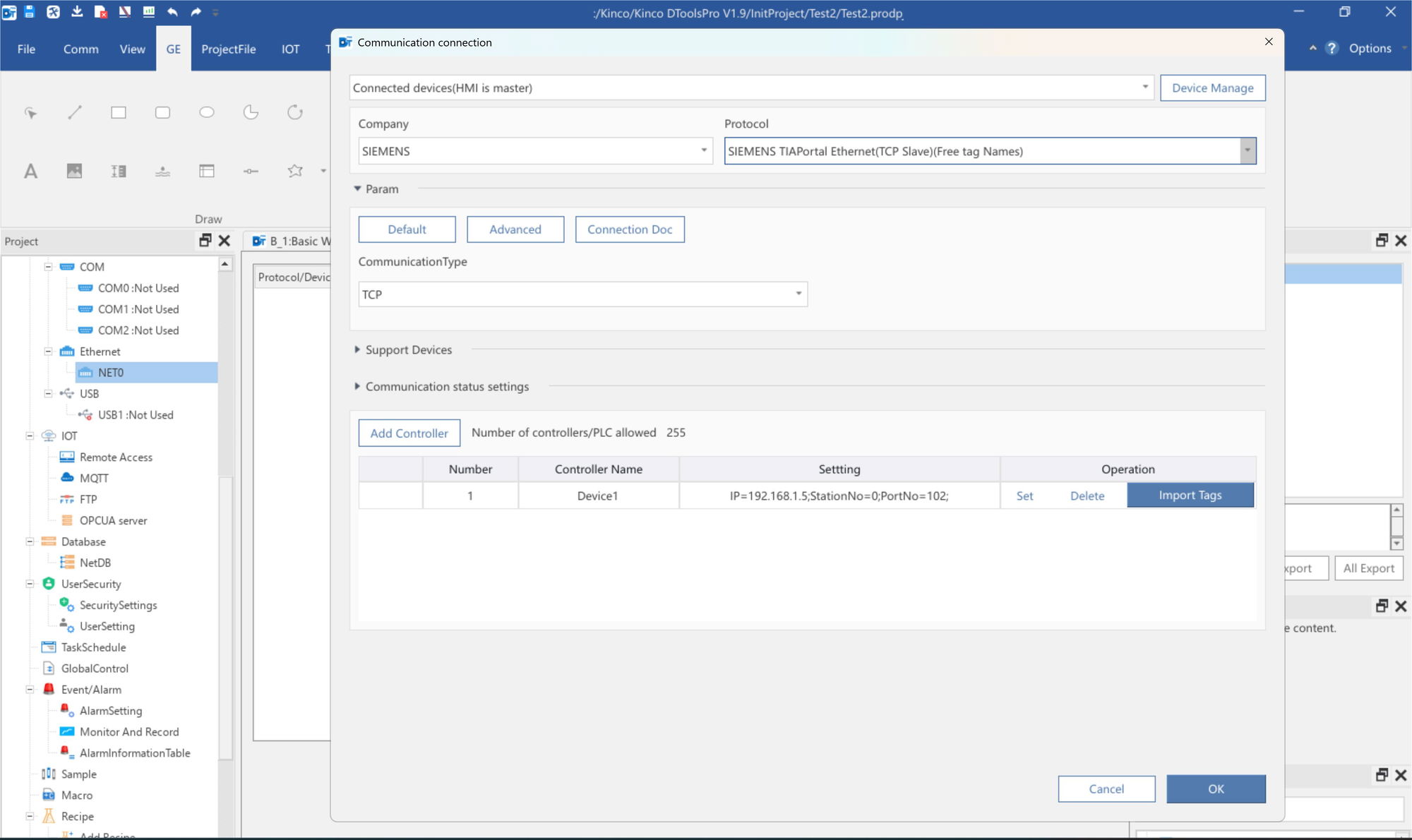

The manuals for the PLC communication drivers can be accessed in the respective driver configuration via the "Connection Doc" button.
Note: If the elements in the software are displayed too small or shifted, right-click the properties in the Windows shortcut for calling up DTools Pro, then select "Compatibility", then "Change high DPI setting". In the following menu, select the tick at the bottom for Overwrite and then "System".
| Other properties | |
| Operating system: | Windows |
|---|---|
| Programming | |
| Language of the programming environment: | Chinese , English |
| Programming languages: | C , Graphical programming interface |

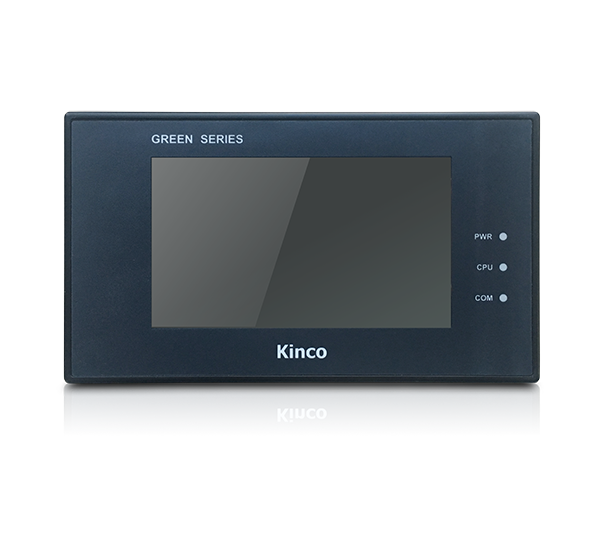

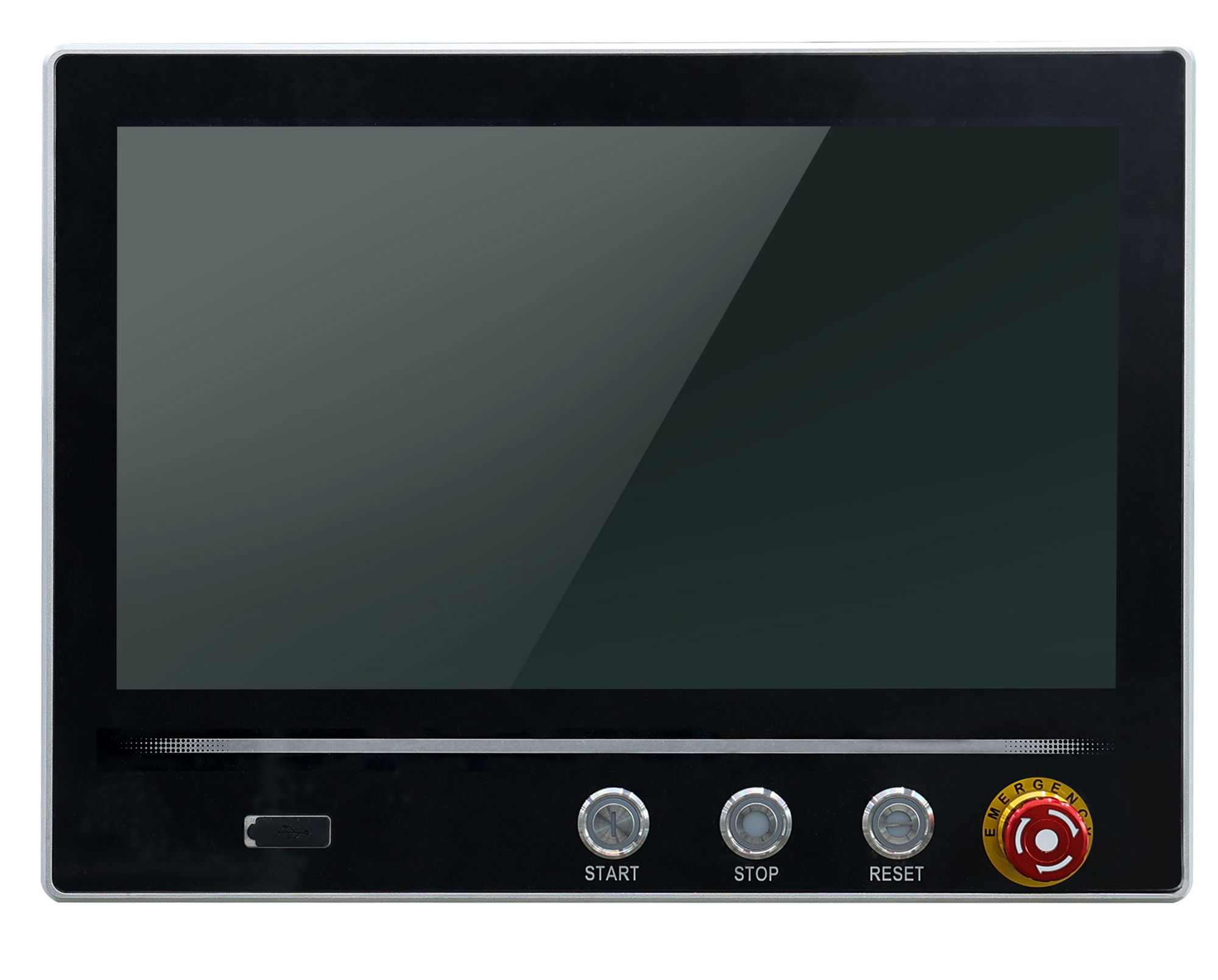

Passende HMI
Manufacturer "Kinco"
Kinco is one of the leading manufacturers of automation technology in Asia. The company's research and development team is based at its headquarters in Shenzhen (China) on the border with Hong Kong, and Kinco also operates a research center in Germany, a unique feature among Chinese companies.
Open manufacturer website
In terms of quality and range of functions, Kinco is strongly oriented towards the European and German markets. Communication drivers for Siemens S7 controllers are therefore included in every HMI. The company has a modern and reliable range of HMIs, drive technology and controllers. Kinco already generates more than 10% of its turnover internationally, and Germany is one of the manufacturer's growth markets.
