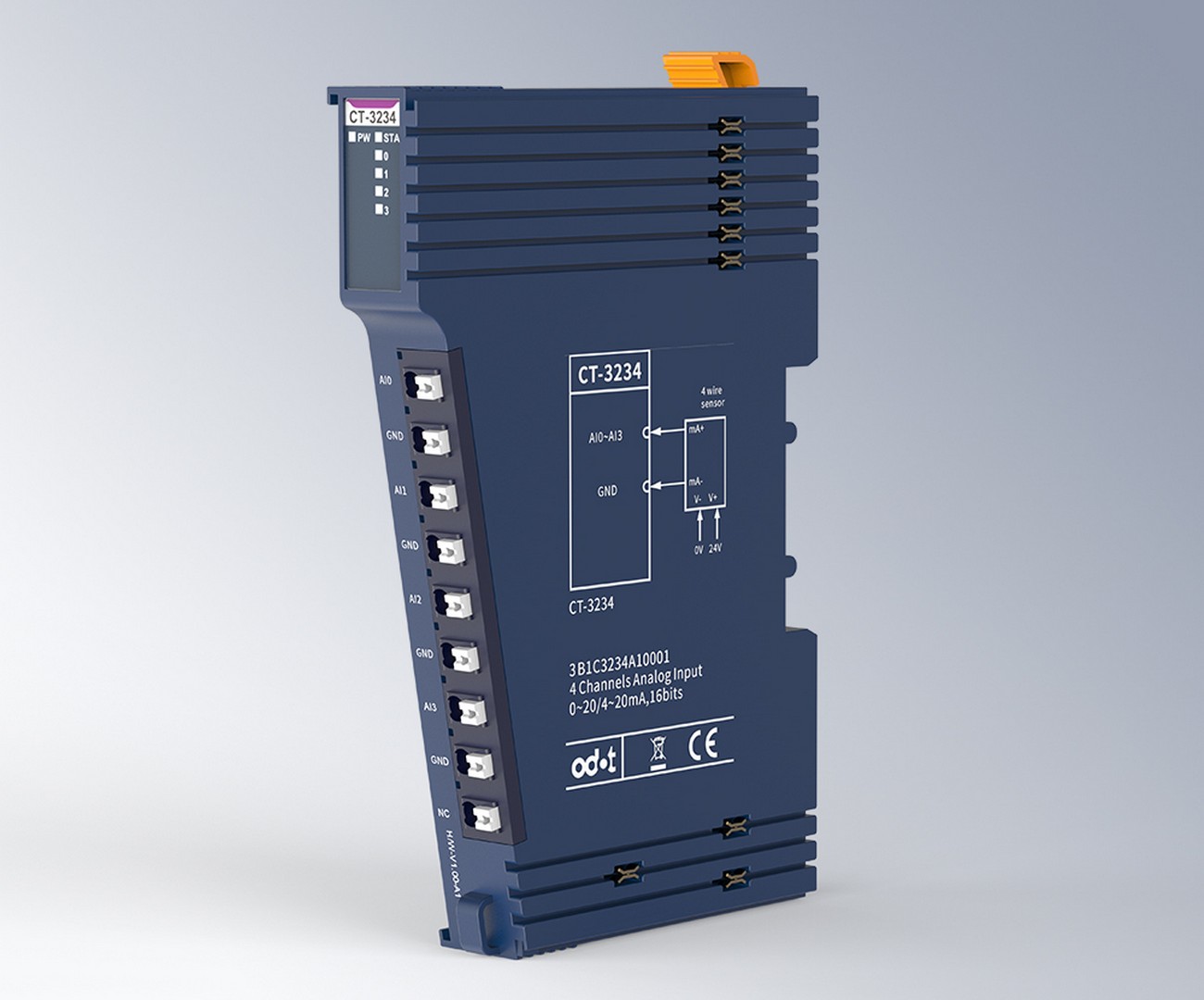

Odot CT-3234 – 4 analog current inputs (0/4 – 20 mA), 15-bit

Do you have questions? Our community may have already answered them!
Connect with others in our support forum.

Compatible PLCs

Odot C3351-B01 – CODESYS 3.5 PLC, expandable up to 32 I/O modules

From €142.40 *

Preis exkl. MwSt., zzgl. Versandkosten

New

Odot C4374 CODESYS PLC with EtherCAT and CANopen master

Odot C4374 – CODESYS 3.5 PLC with EtherCAT and CANopen master, up to 32 I/O modules

From €263.20 *

Available in 14 days, delivery time 3 bis 5 Tage

Preis exkl. MwSt., zzgl. Versandkosten

End module

New

Odot CT-5801 – end module for C-series PLCs and bus couplers

From €4.61 *

Available in 14 days, delivery time 3 bis 5 Tage

Preis exkl. MwSt., zzgl. Versandkosten

Product information "Odot CT-3234 – 4 analog current inputs (0/4 – 20 mA), 15-bit, C series"

Four analog channels when accuracy or clean isolation matters: the 4-channel analog modules of the Odot C series acquire values from sensors and transmitters or output setpoints to drives and valves. Choose input or output, voltage or current.

🏭 Typical applications

Measure voltage signals: CT-3134 with 4 inputs 0–5 V, 0–10 V, ±5 V or ±10 V, 15/16-bit, isolated channels.
Connect transmitters: CT-3234 with 4 current inputs 0–20 mA or 4–20 mA, 15-bit.
Noise-sensitive current measurement: CT-3274 with 4 differential inputs 0–20 mA, 4–20 mA or ±20 mA, 16-bit, isolated channels.
Setpoint as voltage: CT-4154 with 4 outputs 0–5 V, 0–10 V, ±5 V or ±10 V, 16-bit.
Setpoint as current: CT-4234 with 4 outputs 0–20 mA or 4–20 mA, 16-bit.

🔌 Compatible with

Odot C3351 and C4374 PLC (CODESYS 3.5), up to 32 modules directly to the right of the CPU
Odot CN bus couplers for remote I/O – PROFINET, EtherCAT, EtherNet/IP, Modbus TCP/RTU, CANopen and more

📐 Common data

Push-in spring terminals, 35 mm DIN rail
IP20, system bus supplied by the PLC or bus coupler

Important: every module string – on the C3351 / C4374 PLC or on a CN bus coupler – ends with the CT-5801 end module. Odot lists it as a mandatory module.

Manufacturer "Odot"

Odot is an innovative manufacturer of modular PLCs and remote IO modules. Among other things, the manufacturer offers Codesys PLCs.

Technical Specifications

Electrical properties
Power Consumption:	max. 36 mA @ 5 V DC (system bus)
Digital I/O
Switching Indicator:	Green LED
Analogue I/O
Analog Inputs (Designation & Type):	0 – 20 mA , 4 – 20 mA , 15 Bit
Analog Inputs (Quantity):	4
Interfaces, protocols and connections
Terminal Type:	Spring clamp
Dimensions and environmental properties
Cooling:	Ambient air (passive)
Dimensions (Width x Height x Depth):	14 mm × 115 mm × 75 mm
Housing Material:	Plastic
Mounting:	DIN rail
Operating Temperature Range:	−35 °C to +70 °C
Protection Rating:	IP20
Storage Temperature Range:	−40 °C to +85 °C
Weight:	0,065 kg
Other properties
Product Series:	ODOT C-Series
