Lilliput 15.6" AD15 Touch Monitor with HDMI/DP connection, camera, 1000 Nits IP65

If you need a machine display that not only shows and controls but also recognises who is standing in front of it, the Lilliput AD15 is a rugged 15.6-inch industrial monitor with a built-in 8 MP camera, microphone and USB hub – connected to an industrial PC or an edge box with image processing.

🏭 Typical applications

• Operator station with log-in: The front camera provides the image for face recognition on the connected computer – for example to grant operating rights at the machine. The analysis is done by software on the PC, not by the monitor.

• Workstation with peripherals: Four USB-A ports on the monitor take scanners, RFID readers, keyboards or USB sticks. Only one USB-B cable runs to the computer.

• Harsh environments: IP65 and NEMA 4 at the front, 7H hardness and IK07 impact resistance, tested for vibration and shock. The touch works with wet hands and with gloves.

• Outdoor and windows: 1000 cd/m² with automatic dimming and a UV-resistant coating keep the image readable in sunlight.

🖥️ Display

• 15.6" LCD with 1920 × 1080 pixels (16:9)

• Brightness 1000 cd/m² (nits) with automatic dimming

• Contrast 1000:1, viewing angle 170° / 170° (horizontal / vertical)

• Optical bonding: no air gap between glass and panel, so less reflection and no fogging or dust behind the glass

• UV-resistant, anti-glare and anti-fingerprint coating

• Hardness ≥ 7H (ASTM D3363), impact resistance IK07 (IEC 62262)

• LED lifetime 50,000 h

👆 10-point capacitive touch

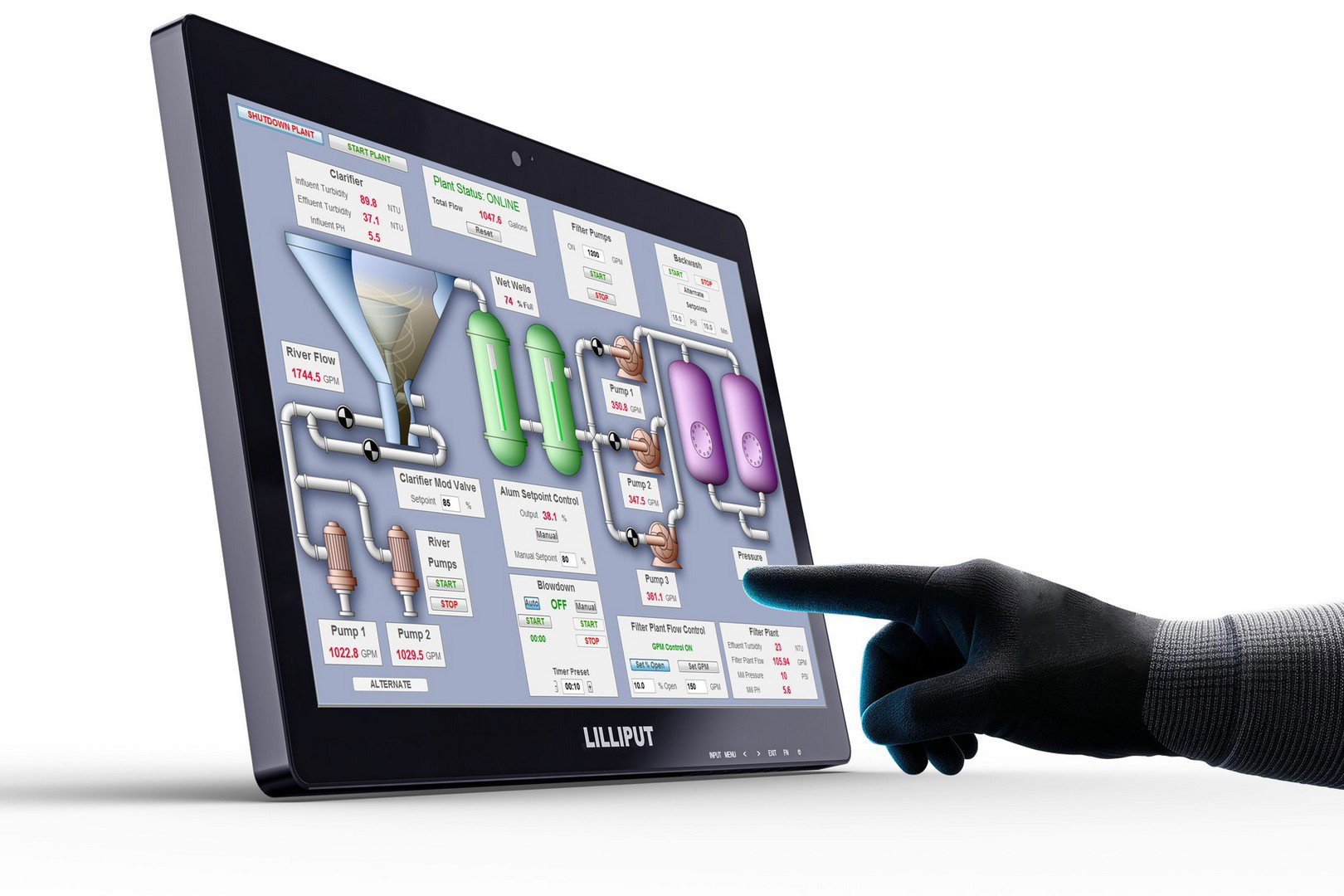

The capacitive touch supports multi-touch gestures and, according to the manufacturer, can be operated with wet hands and with rubber, latex and PVC gloves. It is reported as a standard input device under Windows, Linux, Android and macOS – no drivers need to be installed.

📷 Camera and audio

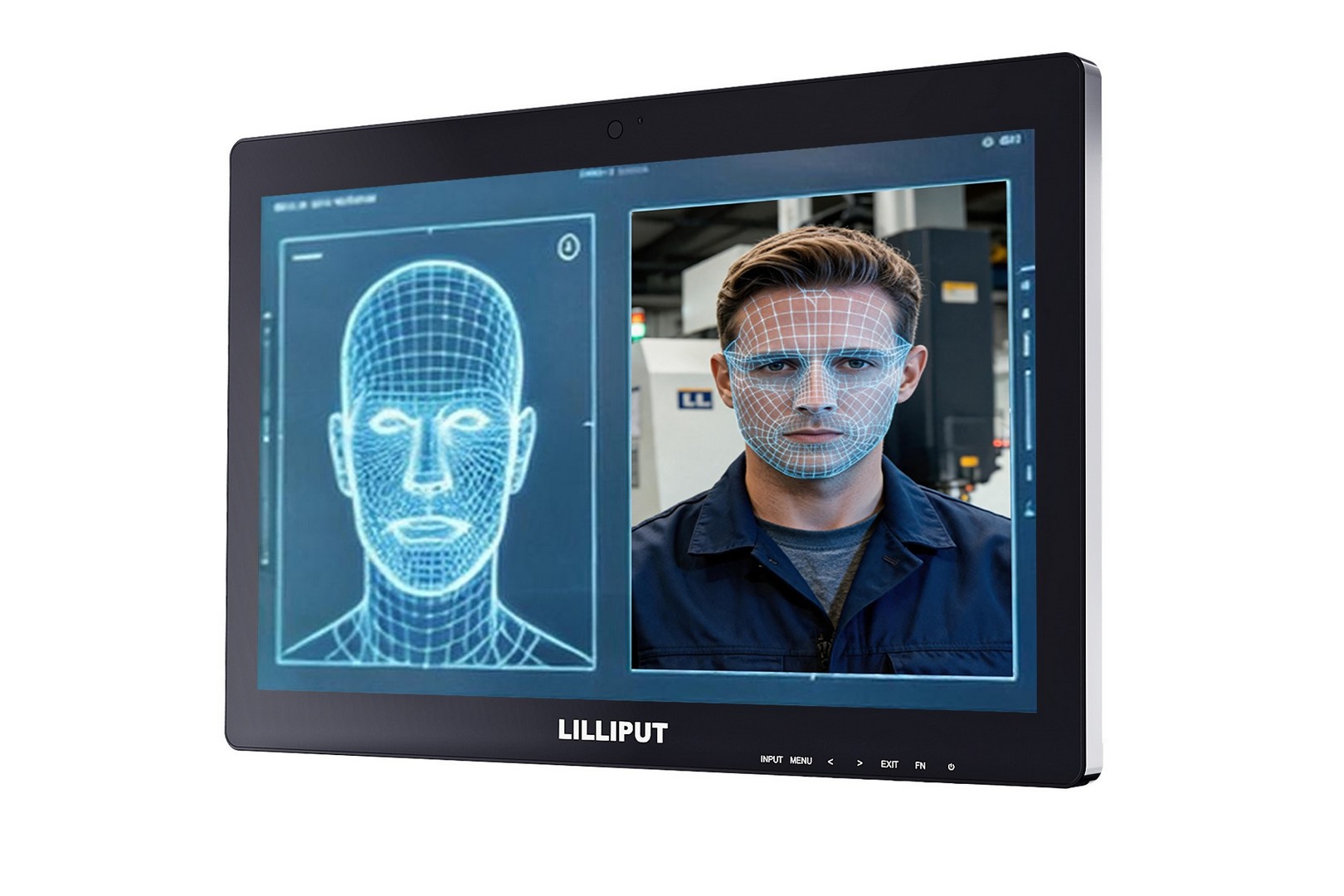

• 8 MP front camera

• Microphone for voice recording and calls

• 2 speakers, 3.5 mm headphone output

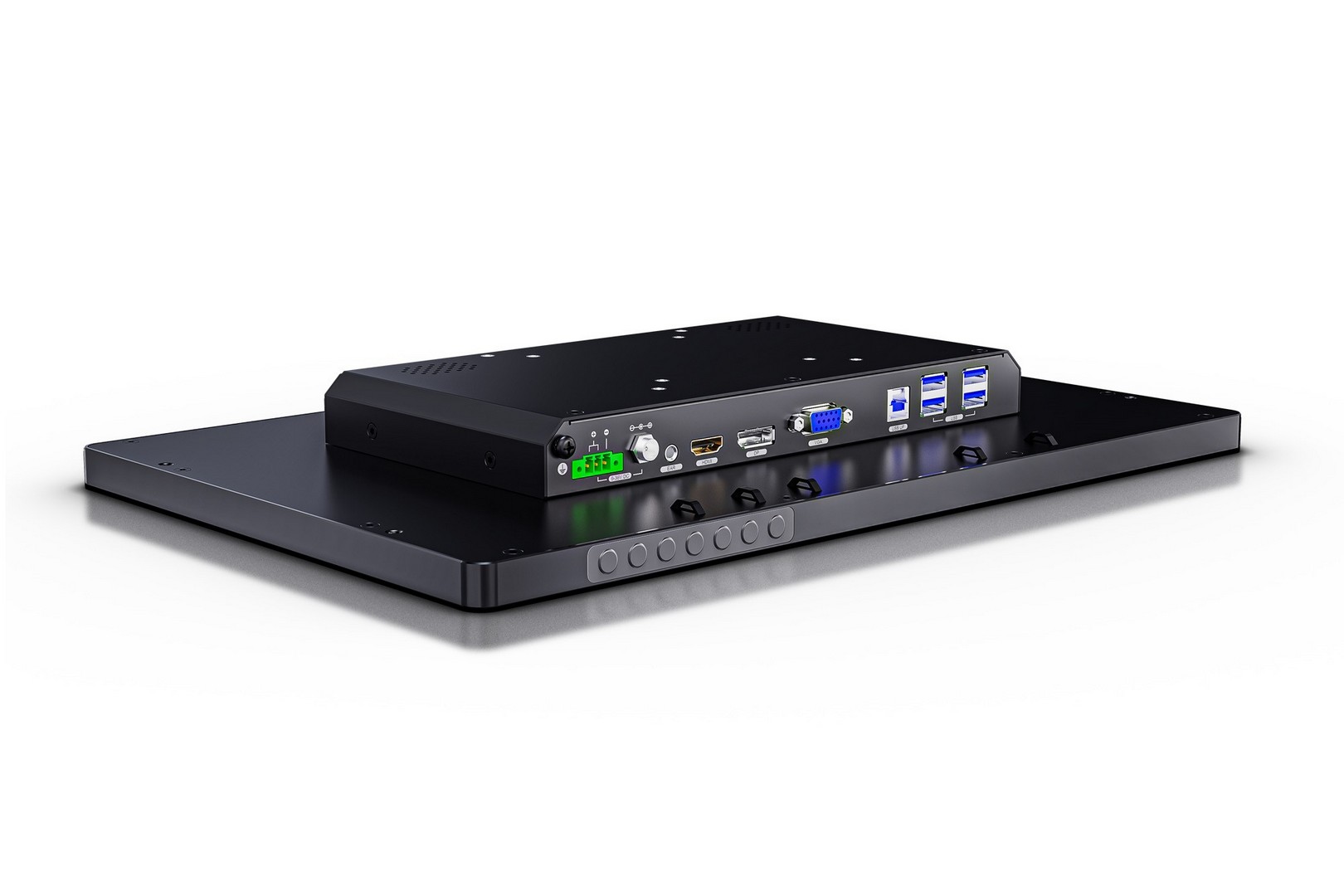

🔌 Connections

The unit is a monitor without its own CPU. The image comes from a PC, industrial PC or controller; touch, camera and USB hub connect to the computer via USB-B.

• HDMI 1.4b (input signal up to 4K at 30 Hz)

• DisplayPort (input signal up to 4K at 30 Hz)

• VGA (up to 1080p at 60 Hz)

• USB-B to the computer, 4× USB-A 3.0 as hub (1.5 A / 3 A)

• Power via 3-pin Phoenix terminal or DC jack, protective earth terminal

💡 The AD15 has no AV (composite) input. If you want to connect an analogue camera and do not need a camera in the monitor, the same-size Lilliput TK1560/T has an AV input.

With 1920 × 1080 it matches the output of the Kinco xF-SiHMI directly.

🔧 Mounting and scope of delivery

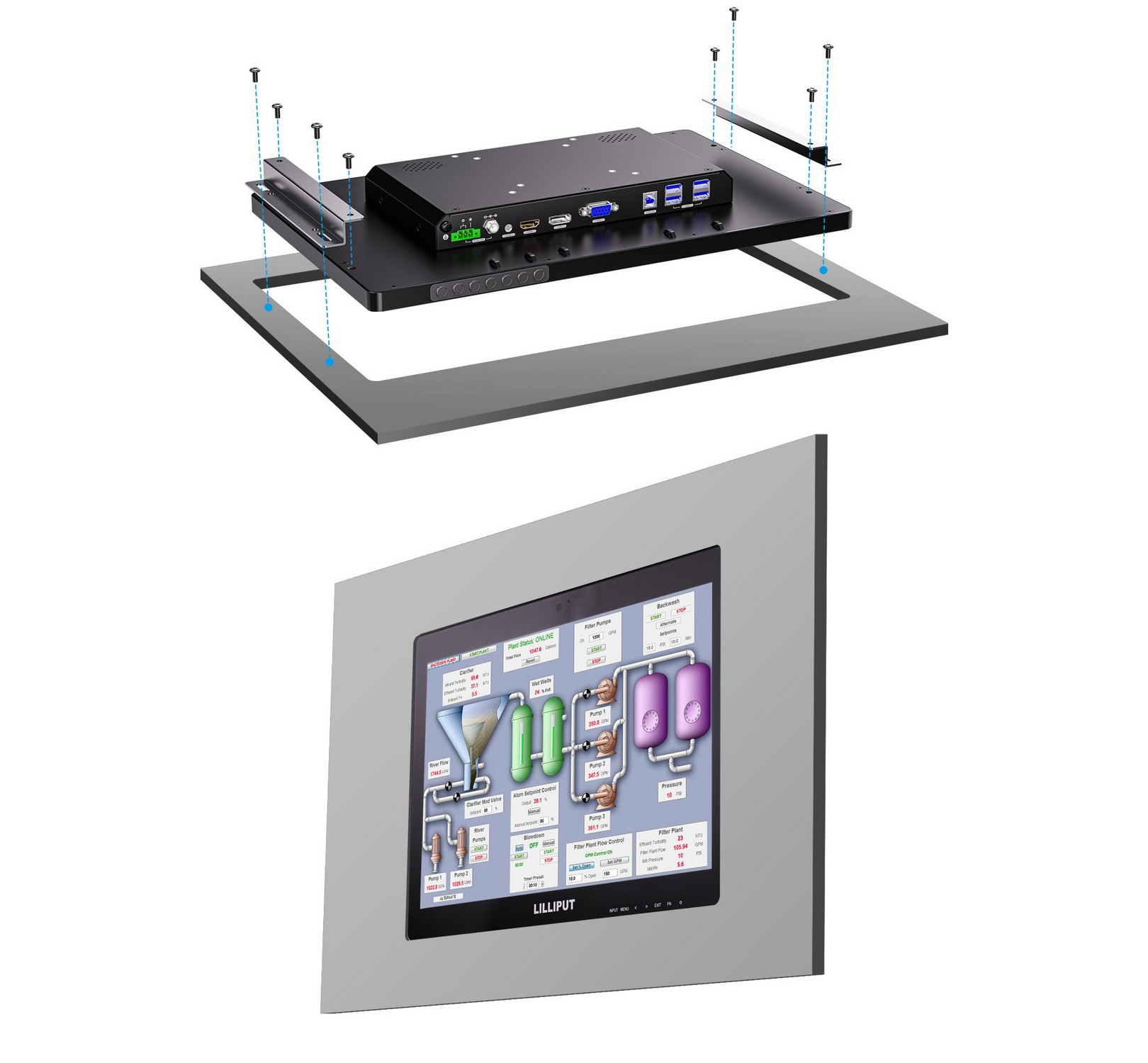

Rear mounting into a panel cut-out with the optional rack-mount brackets, or mounting via VESA 75 / 100 mm.

• Outer dimensions 383 × 245 × 40 mm, weight 2.9 kg

• Supply 9 – 36 V DC, power consumption ≤ 33 W (at 12 V)

• Protection IP65 and NEMA 4 (front panel)

• Vibration 1.5 Grms, 5 – 500 Hz (IEC 60068-2-64), shock 10 g, 11 ms (IEC 60068-2-27)

• Operation -20 °C to +60 °C, storage -30 °C to +70 °C

• Included: 3-pin Phoenix plug, HDMI cable, USB-A to USB-B cable

• ⚠️ No power supply included. Available as options: 12 V power supply (4 A), remote control, VESA stand, rack-mount brackets

🏷️ Manufacturer and reliability

Lilliput Electronic Technology has been developing and manufacturing monitors for industry, broadcast and vehicle applications for over 20 years. The AD15 belongs to Lilliput's metal-housing range and is designed for continuous operation. All specifications on this page have been checked against the manufacturer's datasheet; values marked 🔍 are derived and not confirmed in writing.
