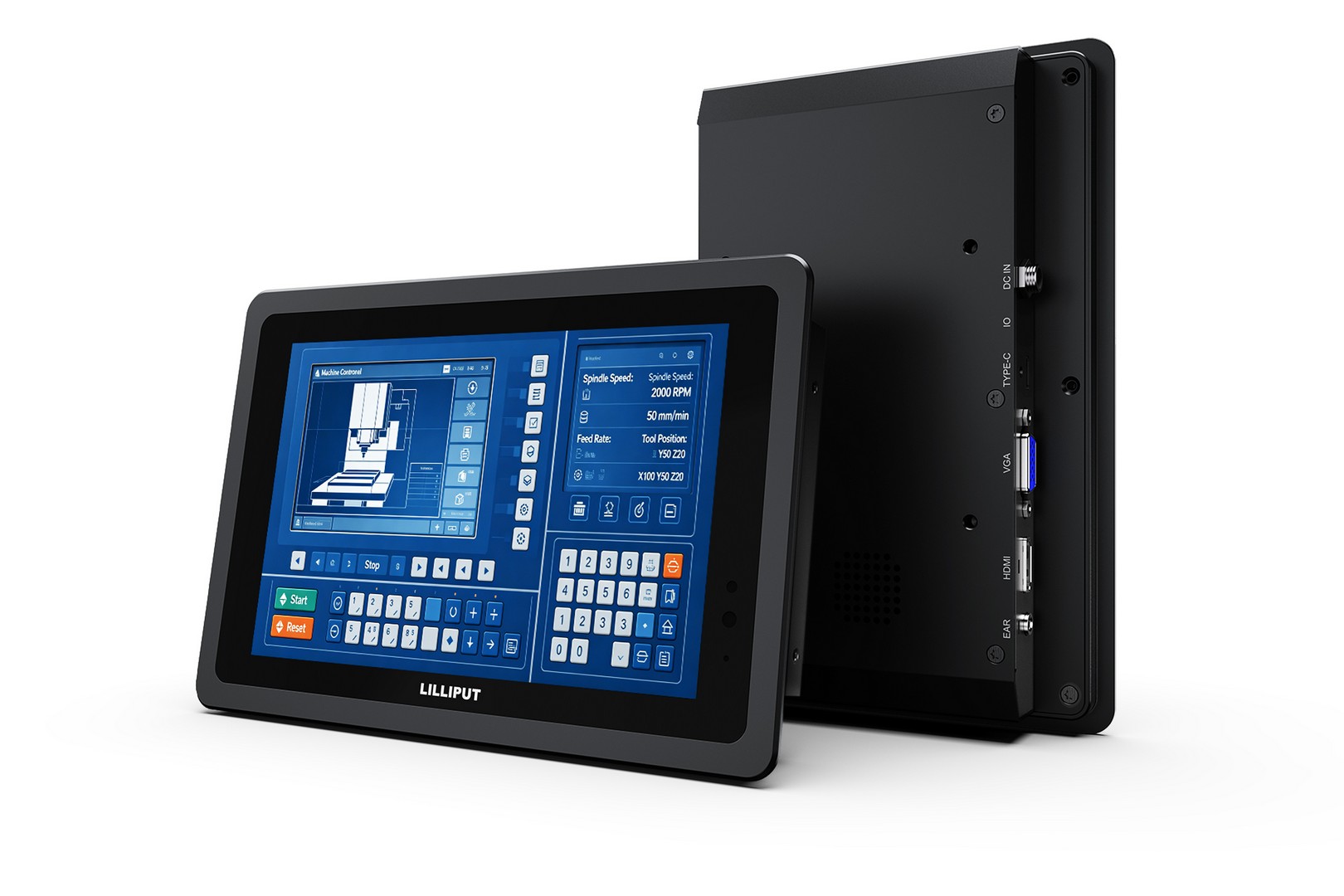

Lilliput 7" TK719.T Touch Monitor with HDMI/USB-C connection 1000 Nits IP65

If you need more pixels, a rugged front and a single-cable connection in the smallest TK format, the Lilliput TK719/T is the modern 7-inch monitor for control cabinets, operator desks and vehicles.

🏭 Typical applications

• Compact operator panel: Seven inches with 1280 × 800 pixels are enough for status display, setpoint entry and acknowledgement – with a much finer image than classic 800 × 480 panels.

• Vehicles and mobile machinery: The 9 to 36 V DC input range covers 12 V and 24 V on-board supplies with headroom – no converter needed. Vibration and shock are tested to IEC 60068.

• Single-cable connection: Video, touch and power run over USB-C if the computer outputs a video signal via USB-C. This saves cabling in tight enclosures.

• Installation in enclosures and machines: With the optional open-frame brackets the unit can be built into control cabinets, kiosks or smart lockers.

🖥️ Display

• 7" LCD with 1280 × 800 pixels (16:10)

• Brightness 1000 cd/m² (nits) with automatic dimming – sunlight readable

• Contrast 800:1, viewing angle 170° / 170° (horizontal / vertical)

• Optical bonding: no air gap between glass and panel, so less reflection and no fogging or dust behind the glass

• LED lifetime 50,000 h

👆 10-point capacitive touch

The capacitive touch responds to a light touch and supports multi-touch gestures such as zooming and scrolling. It is reported as a standard input device under Windows, Linux, Android and macOS – no drivers need to be installed.

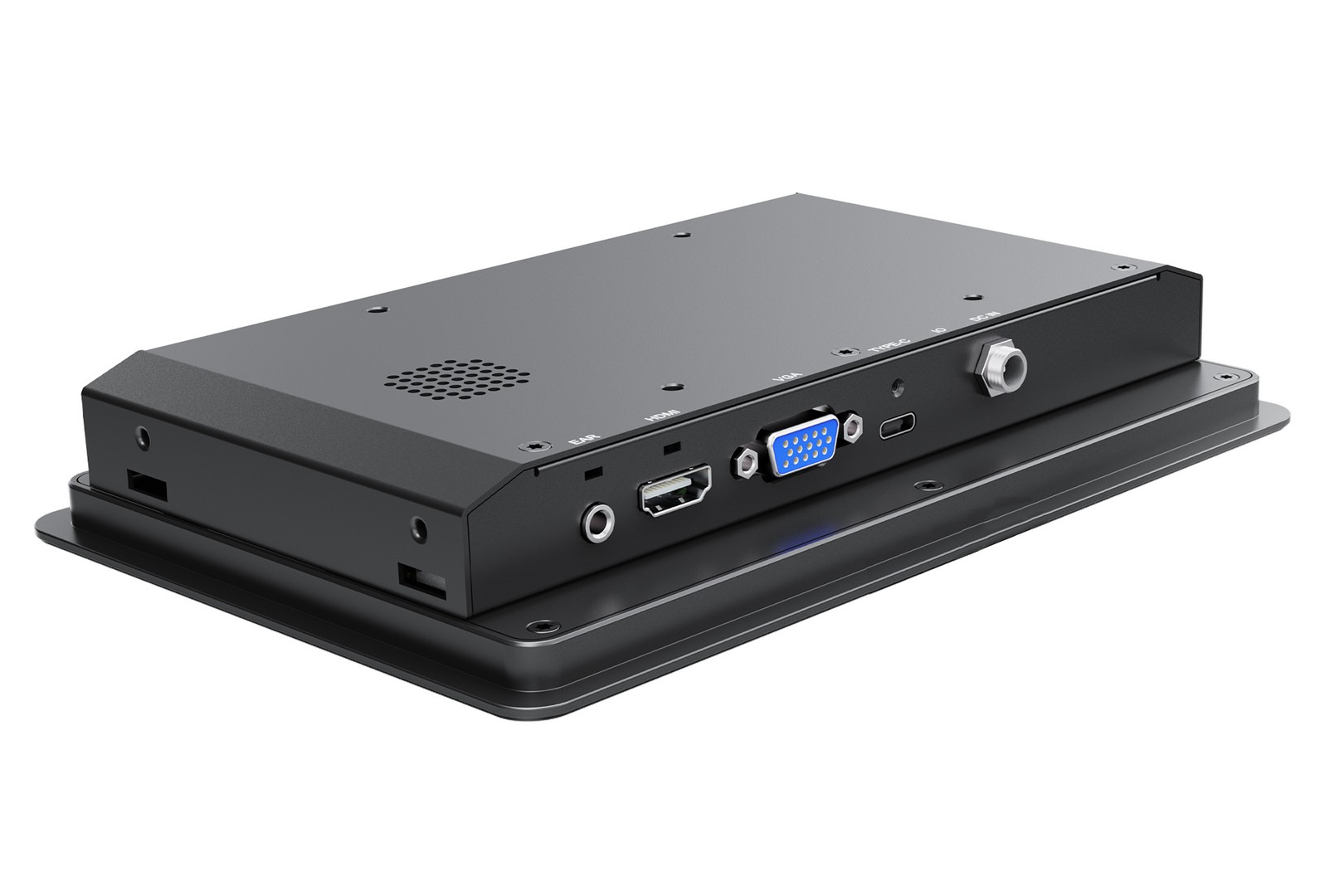

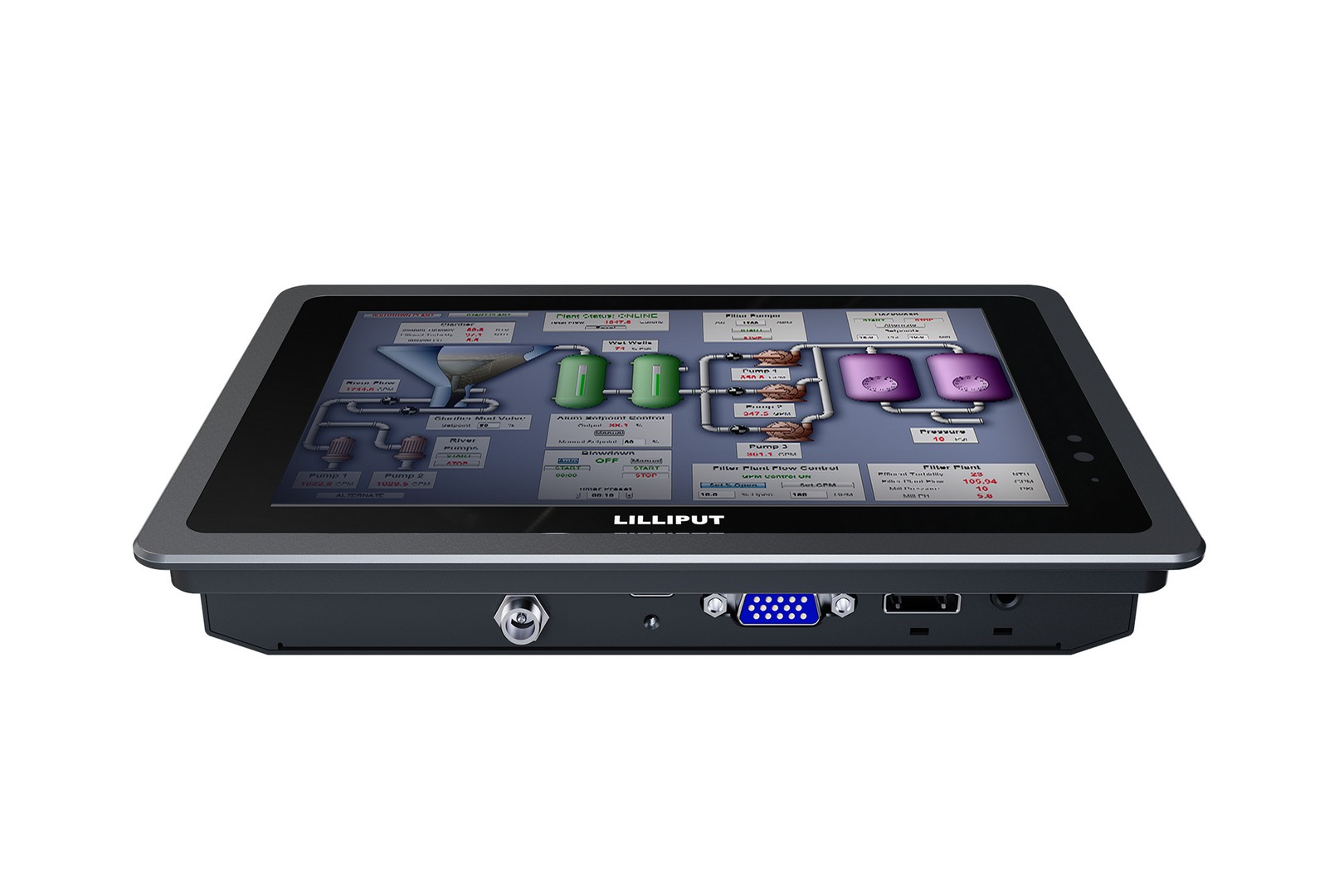

🔌 Connections

The unit is a pure monitor without its own CPU. The image comes from a PC, industrial PC or controller; touch is returned via USB-C.

• HDMI 1.4b

• VGA

• USB-C for video, touch and power

• 3.5 mm headphone output, built-in speaker

💡 The TK719/T has no AV (composite) input. To connect an analogue camera, the Lilliput TK701/T offers two AV inputs.

Can be used with the Kinco xF-SiHMI; its 1920 × 1080 output is scaled to 1280 × 800.

🔧 Mounting and scope of delivery

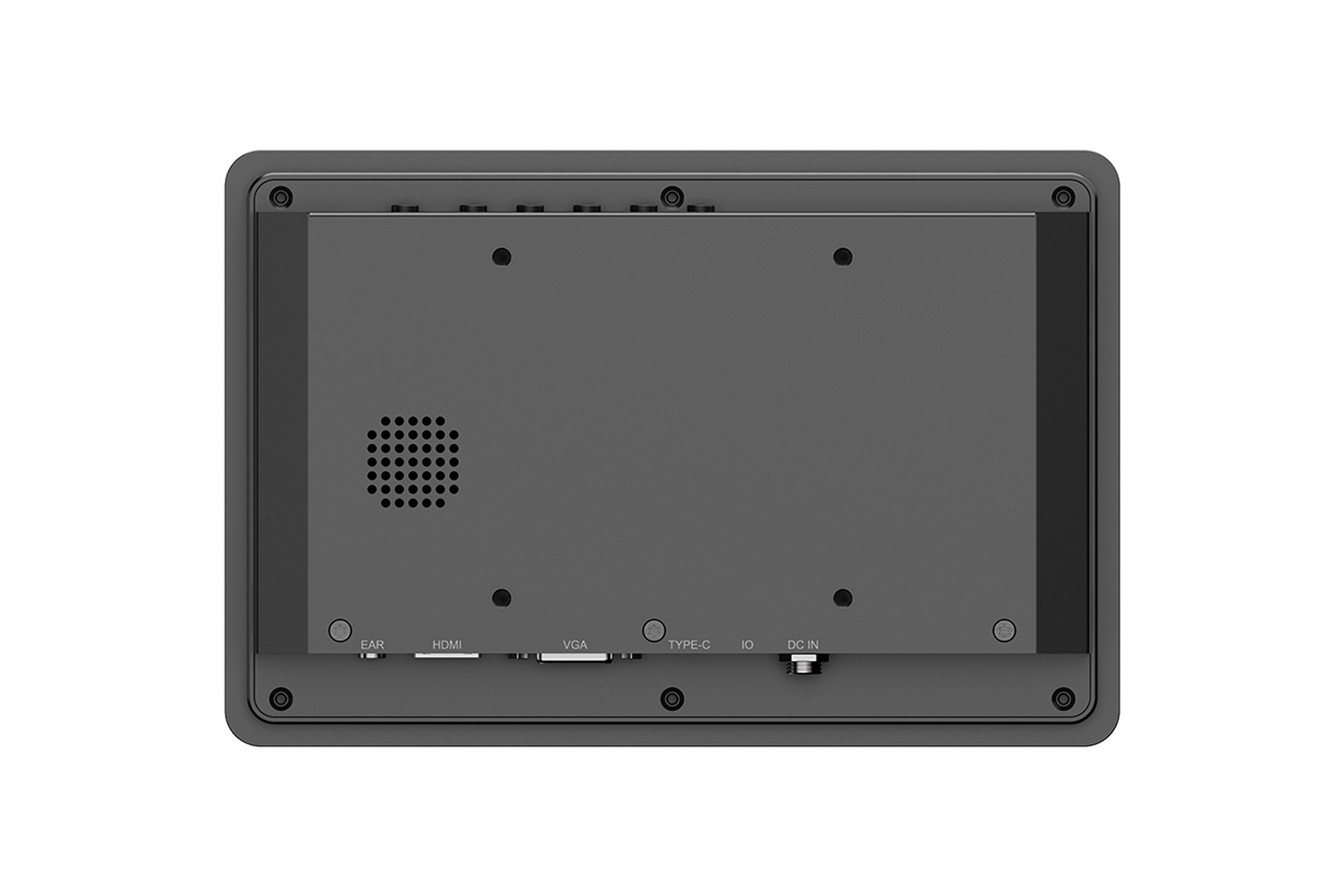

VESA 75 mm hole pattern. Panel mounting uses the supplied screws; VESA and open-frame brackets are available as options.

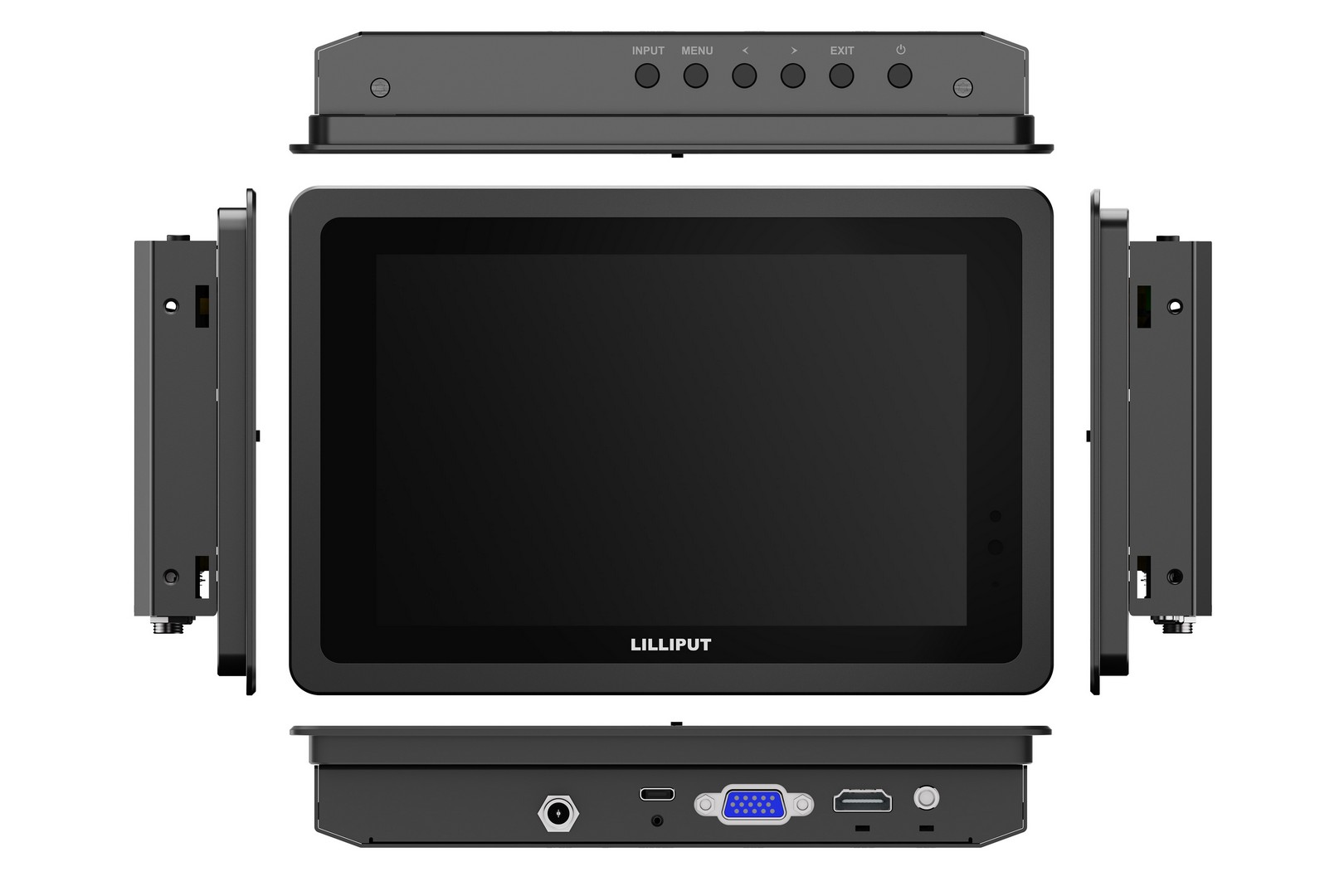

• Outer dimensions 197 × 131 × 32 mm, weight 0.75 kg

• Supply 9 – 36 V DC or via USB-C, power consumption ≤ 8.5 W (at 12 V)

• Protection IP65 and NEMA 4 (front panel)

• Vibration 1.5 Grms, 5 – 500 Hz (IEC 60068-2-64), shock 10 g, 11 ms (IEC 60068-2-27)

• Operation -20 °C to +60 °C, storage -30 °C to +70 °C

• Included: 12 V power supply (2 A), HDMI cable, USB-C cable with screw lock, USB-A to USB-C cable for touch, screw kit

🏷️ Manufacturer and reliability

Lilliput Electronic Technology has been developing and manufacturing monitors for industry, broadcast and vehicle applications for over 20 years. The TK series is designed for continuous operation and is CE compliant. All specifications on this page have been checked against the manufacturer's datasheet; values marked 🔍 are derived and not confirmed in writing.
