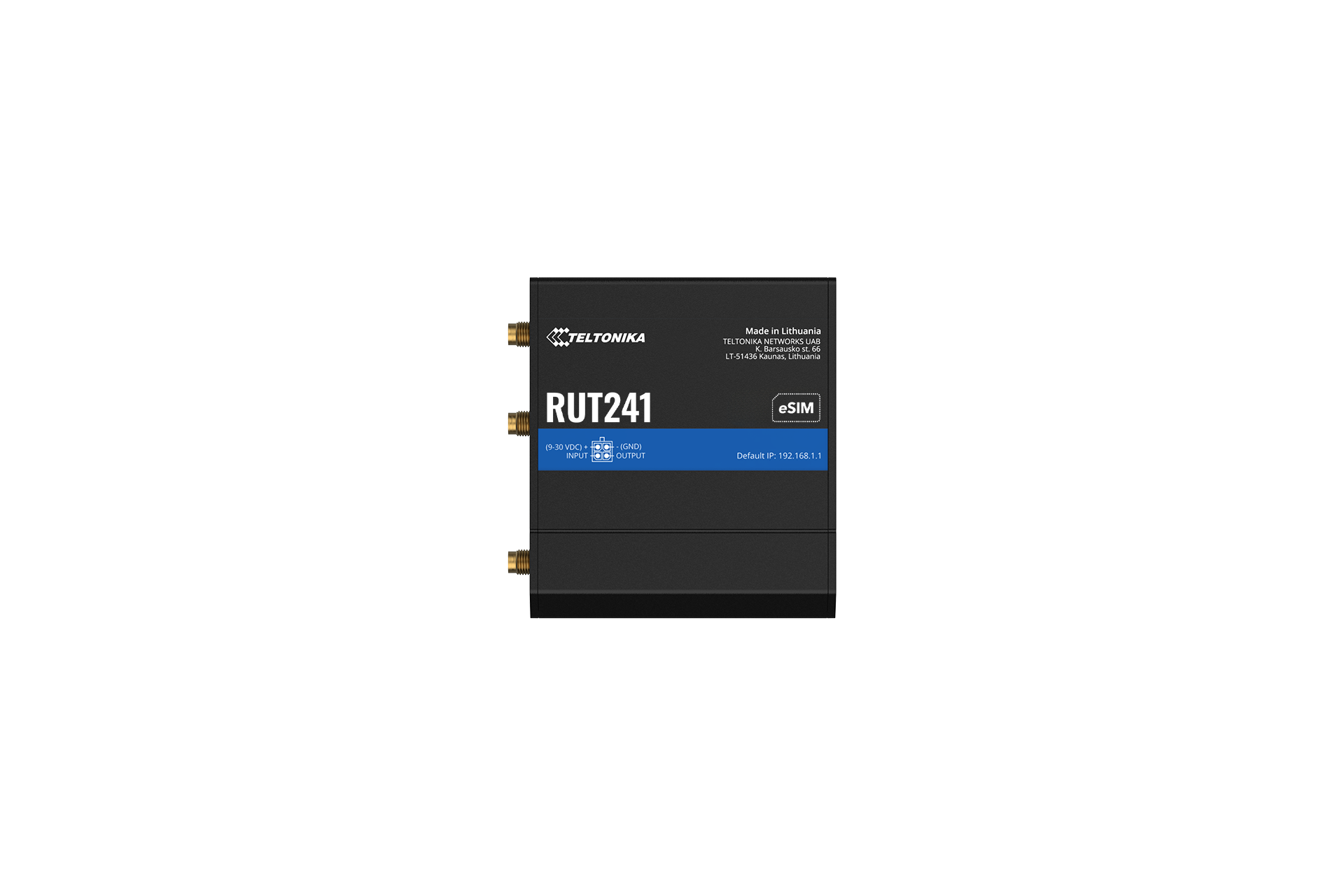

Teltonika LTE Modem / Router RUT241 with 4G and Wifi

Quantity Unit price
To 3
To 19
From 20

Available, delivery time: 3 bis 5 Tage

Product number:
Manufacturer no.:
Create PDF quotation
Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.
Product information "Teltonika LTE Modem / Router RUT241 with 4G and Wifi"
The RUT241 is an LTE router / 4G modem that connects your machines to the network independently of local Internet connections.

The Teltonika modems are industrial grade and very well suited for use in combination with our PLCs and HMIs with Ethernet.
The modem offers a wide range of optional software packages and
has an MQTT broker on board, ideal for exchanging data between devices on the network
The modem can be configured and monitored directly from our HMIs via an optional Modbus TCP server and
can therefore be used as a VPN client and even as a VPN server

You can find the complete configuration instructions here:
Electrical properties
Nominal supply voltage: 24 V DC
Permissible voltage range: 9 - 30 V DC
Power consumption: 6.5 watts
Digital I/O
Digital inputs (number & type): 1 (24 V DC)
Digital outputs (number & type): 1 transistor (24 VDC)
Interfaces, protocols and connections
Ethernet: 2 x 10/100 (RJ45)
Fieldbuses & protocols: Modbus TCP slave (server)
GPS: not integrated
Interfaces: 4G modem , Ethernet , Integrated WLAN
MQTT: MQTT Broker , MQTT Producer
Modbus: Modbus TCP server (slave)
OPC UA: OPC UA Client , OPC UA Server
Supported networks: 2G , 3G , 4G , WLAN 802.11b , WLAN 802.11g , WLAN 802.11n
Terminal type: 4-pin plug
VPN: IPSec VPN , Integrated VPN client (OpenVPN)
Dimensions and environmental properties
Assembly: DIN rail
Cooling: Ambient air (passive)
Dimensions (width x height x depth): 74 mm x 83 mm x 25 mm
Housing material: Aluminum
Operating temperature range: - 40 °C to + 75 °C
Protection class: IP30
Other properties
Memory: 16 MB Flash , 128 MB RAM
Model series: RUT
Processor: Mediatek 580 MHz
Configurable via: MQTT , Modbus TCP , SNMP , Web browser
Standards and certifications: CE marking , RoHS , UL
Manufacturer "Teltonika"
Teltonika aus Litauen ist einer der führenden Anbieter für Industriemodems und Netzwerktechnik. Der Hersteller bietet ein großes Portfolie aus kosteneffektiven und leistungsfähigen Produkte für die Konnektivät von Maschinen und Anlagen an.
