Product information "Solidot XB6S-PC80 Pulse Counter Module, 8 channels, NPN/PNP, 100 kHz (XB6S Slice I/O)"

If you need to count fast pulses – proximity switches on conveyors, flow meters, encoders without direction sensing – and want to do it in the field instead of through expensive high-speed counter cards in the PLC, the Solidot XB6S-PC80 is a compact 8-channel counter module of the XB6S slice series.

🏭 Typical applications

  • Part counting: count items on conveyor and packaging lines via photoelectric sensors or proximity switches.

  • Flow/quantity: count the pulse outputs of flow or quantity sensors.

  • Speed/frequency: measure clock signals without direction sensing.

  • Distributed counting points: collect widely separated counting points over one XB6S segment instead of wiring each back to the PLC.

⚙️ Key specifications

  • 8 counting channels, up to 100 kHz each.

  • Inputs NPN/PNP compatible, common terminal COM.

  • 24 V DC supply (18–36 V), internal 5 V via the X-bus backplane.

  • Status LED per channel, IP20, −20 to +60 °C.

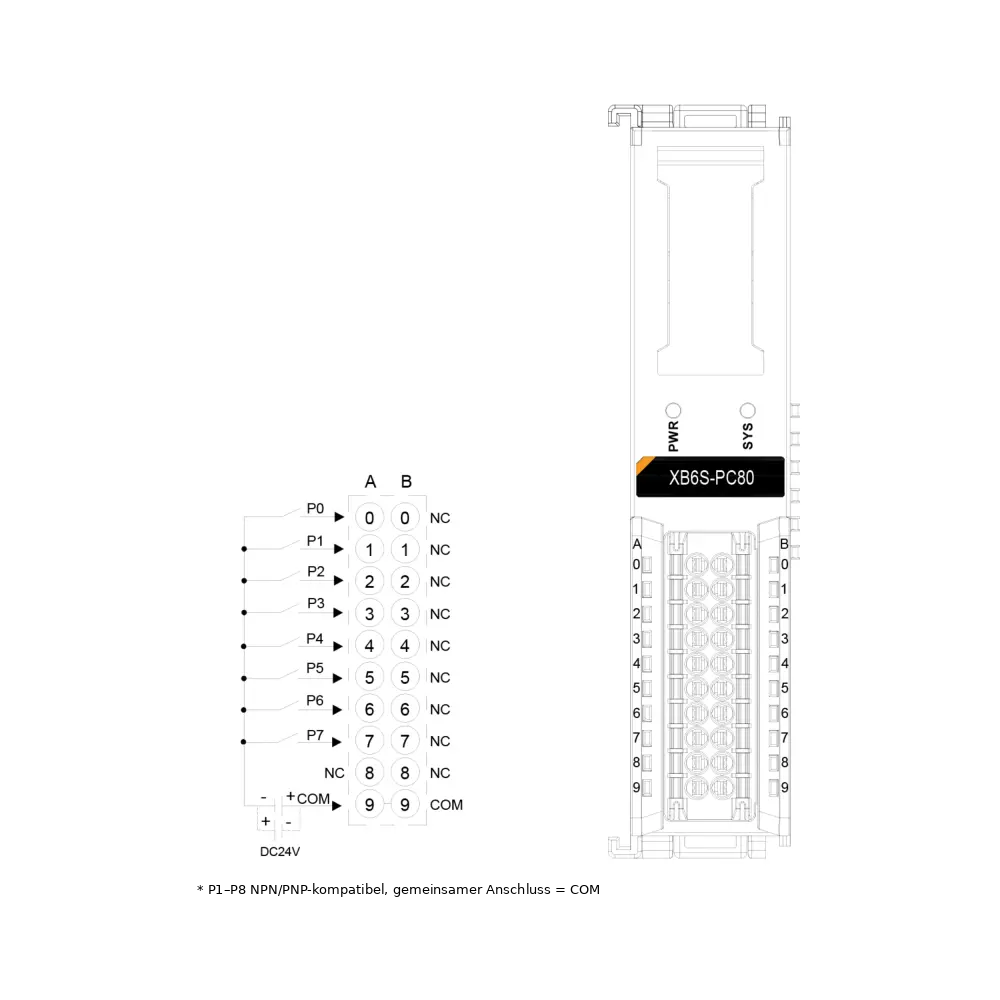

🔌 Connection technology

Pluggable terminal block with spring terminals, backplane communication via the X-bus to the XB6S coupler. Snap on and plug in without tools – quick to install and replace.

🌐 Fieldbus connection

This module is not a standalone fieldbus device: it plugs onto an XB6S bus coupler, which handles the connection to PROFINET, EtherCAT, EtherNet/IP, Modbus and other protocols. You capture or generate the signals right in the field and transmit them over your existing fieldbus.

🔧 Mounting and dimensions

Convenient configuration via the web browser on the coupler. 35 mm DIN rail, dimensions 106 × 72 × 25 mm, approx. 0.09 kg.

🏷️ Manufacturer and reliability

Solidot (Nanjing Solidot Electronic Technology) specialises in decentralised I/O and fieldbus technology. The XB6S slice series is designed for continuous industrial use in Europe, CE-marked and RoHS-compliant.

Passende Buskoppler

Solidot bus coupler for XB6 remote I/O with power supply unit and end cover
Solidot bus coupler for XB6 remote I/O with power supply unit and end cover
Fieldbus & Protocols
From €112.64 *

Available in 30 days, delivery time 3 bis 5 Tage

Preis exkl. MwSt., zzgl. Versandkosten

Manufacturer "Solidot"
Solidot was only founded in 2012 and is therefore still a relatively young company. It is now a leading manufacturer of remote I/O in Asia. The company specializes entirely in remote I/O and offers a wide variety of different bus couplers, form factors and assemblies.
Open manufacturer website

Technical Specifications

Electrical properties
Internal Bus Supply Power: 5 V DC
Nominal Supply Voltage: 24 V DC
Permissible Voltage Range: 18 – 36 V DC
Digital I/O
Pulse inputs (number): 8 x Kanäle , 100 kHz
Switching Indicator: Green LED
Switching Type: PNP + NPN input
Interfaces, protocols and connections
Interfaces: X - Bus (XB6S Erweiterungsbus)
Terminal Type: Spring clamp
Dimensions and environmental properties
Cooling: Ambient air (passive)
Dimensions (Width x Height x Depth): 106 mm x 72 mm x 25 mm
Housing Material: Engineering plastic
Mounting: DIN rail
Mounting Detail: 35 mm standard rail mounting
Operating Temperature Range: -20 °C to +60 °C
Protection Rating: IP20
Storage Temperature Range: -40 °C bis +80 °C
Weight: 0.09 kg
Other properties
Product Series: XB6S
Programming
Configurable via: Web browser
Language of the programming environment: Chinese , English , German
