Kinco F2156E2-PX(UL) 15.6" HMI capacitive, Full HD, UL for USA/Canada
- UL listed (E344264)
- 1920 × 1080 Full HD
- Capacitive glass touch, IP65
- 2 × Ethernet, LAN0 gigabit
- Only 26 mm deep
€719.00*
Available in 14 days, delivery time 3 bis 5 Tage
Compatible programming software
The UL variant of the standard 15.6-inch panel with capacitive glass touch: the Kinco F2156E2-PX(UL) carries the UL marking for the USA and Canada. Full HD behind hardened glass, multi-touch, two separate networks — technically identical to the F2156E2-PX.
🏭 Typical applications
New machines with a modern operating concept: pinch-to-zoom in trend charts, swiping between pages — operators know the gestures from their phone and need no training.
Network separation with gigabit: LAN0 at 10/100/1000 Mbit/s for the upper-level network, LAN1 at 10/100 for the machine network.
Control panel on a support arm: VESA 100 × 100 mm and 26 mm depth — the shallowest device in the series, with the metal housing carrying the load and providing shielding.
Replacing an older 15.6-inch panel: the 382 × 246 mm cut-out and VESA 100 × 100 mm match the F2156E and F2156E2 — a panel swap without sheet-metal work.

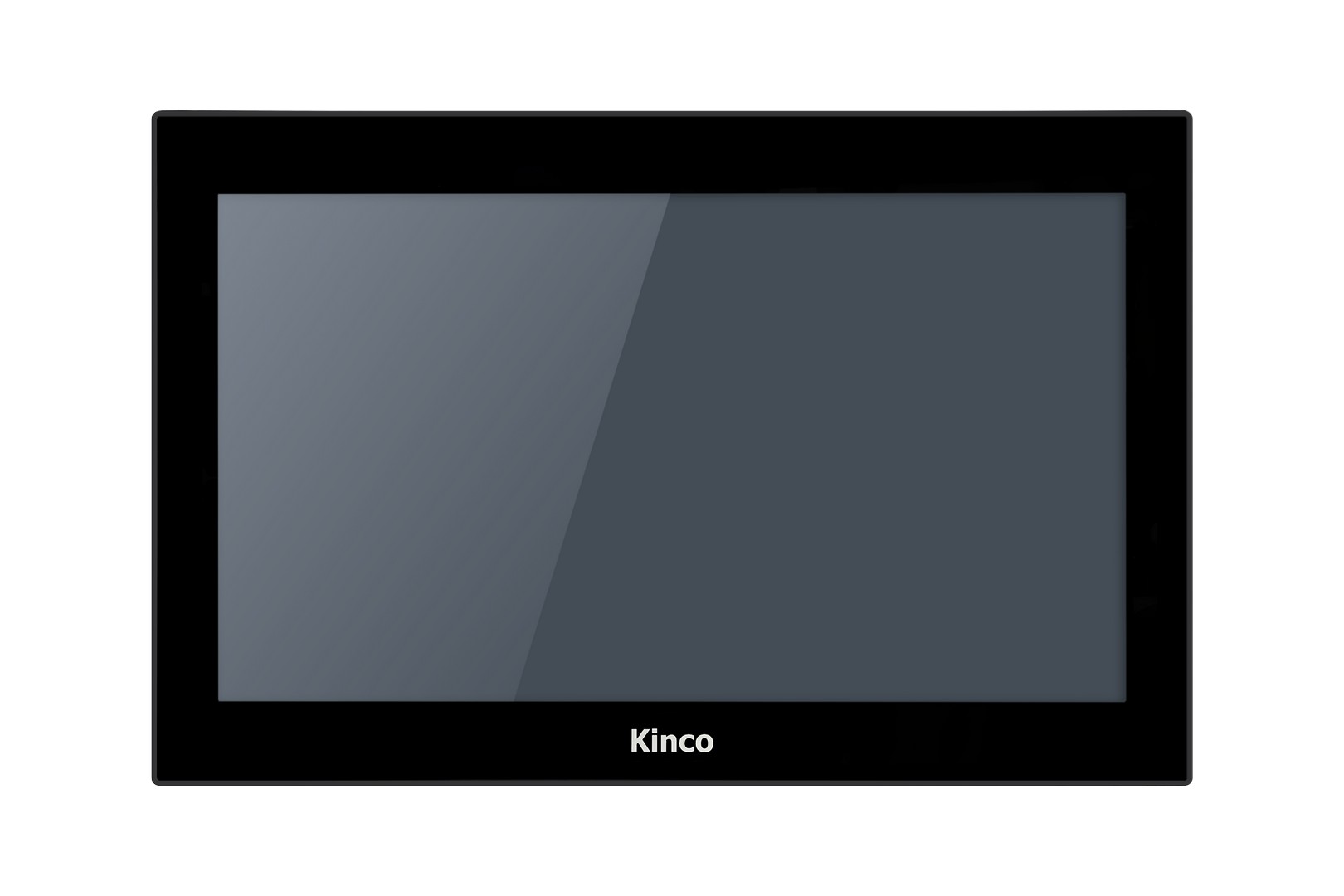

🖥️ Display and performance
1920 × 1080 pixels on 15.6 inches at 1000:1 contrast and 89° viewing angle stability in all four directions. On this area an overview screen, alarm list and trend chart can be shown at the same time without switching views. The quad-core at 1.8 GHz with 1 GB RAM keeps page changes and live values fluid.
Resolution: 1920 × 1080 pixels (Full HD, 16:9)
Brightness: 300 cd/m² | Contrast: 1000:1 | Viewing angle: 89° / 89° / 89° / 89°
Touch: capacitive multi-touch on hardened glass
CPU: Quad-Core ARM 1,8 GHz
Memory: 1 GB RAM + 8 GB eMMC flash
Real-time clock: built in, NTP-synchronisable
👆 Capacitive glass touch: benefits and caveats
Hardened glass front with capacitive multi-touch. Pinch-to-zoom, swiping and multi-point input make trend charts and navigation concepts as fluid as a smartphone.
⚠️ Please note: thick safety gloves or very wet fingers can impair detection. For glove-mandatory or wet environments, use the resistive sibling model: Kinco F2156E2 (resistiv, sonst identisch).

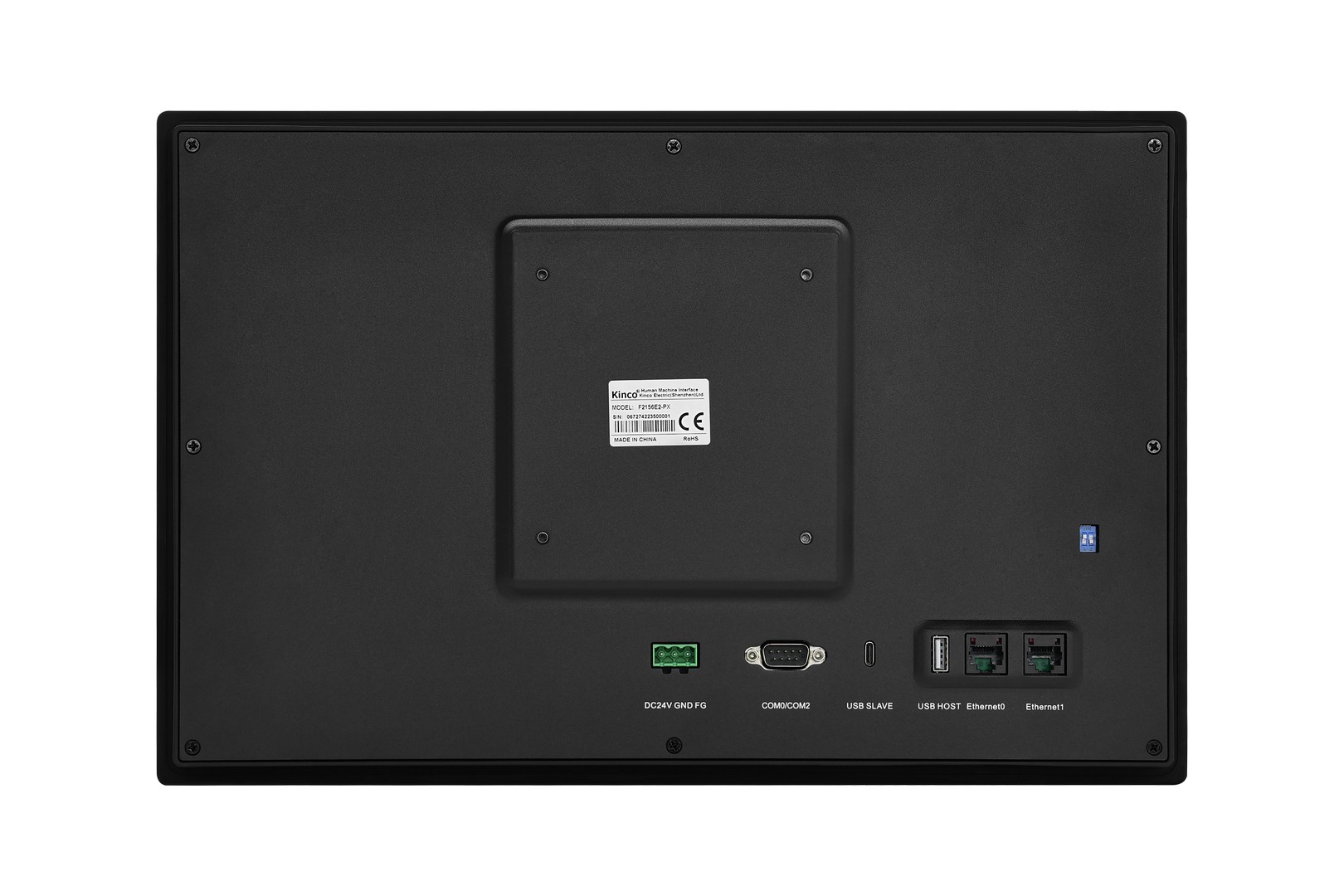

🔌 Interfaces and connectivity
Ethernet LAN0: 10/100/1000 Mbit/s (Gigabit), RJ45
Ethernet LAN1: 10/100 Mbit/s, RJ45 — second independent port for separated networks
COM0 (3-in-1): RS-232, RS-485 and RS-422 in one DB9 connector — one of them usable at a time
COM1: RS-485/RS-422
COM2: RS-232
USB: 1 × USB host (stick, keyboard, barcode scanner, webcam) + 1 × USB slave (program download)
🇺🇸 UL for export to the USA and Canada
This is the UL-marked order variant of the F2156E2-PX. Technically identical to the standard model — the difference is the marking your machine needs for the North American market.
UL file: E344264, holder Kinco Electric (Shenzhen) Ltd.
USA: UL category NRAQ — Programmable Controllers
Canada: UL category NRAQ7 — Programmable Controllers Certified for Canada
Standard: UL 61010-1 (manufacturer specification)
💡 For machines staying in Europe the F2156E2-PX is sufficient — same technology, lower price.
⚠️ When planning the installation, check which marking your customer or the accepting insurer actually requires. We are happy to send you the UL file as evidence in advance.
📦 Availability: orderable here in the shop like any other article. We keep the UL variants in stock — if one is temporarily unavailable, the delivery time extends accordingly.
💡 The 15.6-inch devices of the F2 series compared
F2156E2-PX: capacitive glass touch, 2 × Ethernet — the standard for new machines
F2156E2: same device but with resistive touch — for mandatory gloves and wet areas
F2156E: resistive, only 1 × Ethernet, 2 × COM — the price entry
F2156E2-PX MAX: like the F2156E2-PX but 64 GB flash and 2 GB RAM
F2156E-TX: as a control station with a dual-channel emergency stop, three metal buttons and a support arm
🌐 Protocols and PLC compatibility
If you need to merge data from different sources or visualise plants across vendor boundaries, the drivers shipped with Kinco DToolsPro do it directly — no separate communication processor, no licence fees. The software is free.
Modbus RTU (client and server) via RS-485/RS-422 — the standard for compact machines and legacy installations
Modbus TCP (client and server) via Ethernet — for networked controllers
OPC UA server and client — for cross-vendor networking and MES integration
MQTT publisher and subscriber, BACnet IP, NTP
Siemens TIA Portal: symbolic tags can be imported directly — no manual retyping of addresses
Vendor drivers (selection): Siemens S7-200/200 SMART/300/400/1200/1500 and LOGO!, Beckhoff TwinCAT, Mitsubishi MELSEC FX/FX5U/Q/iQ-R, Omron CJ/CS/CP/NJ/NX, Allen Bradley CompactLogix, Schneider Modicon, Delta DVP, Inovance, Panasonic FP, Xinje XC/XD/XL, CODESYS V3 — over 60 drivers in total
Remote access: built-in VPN function, EdgeAccess 2.0 for remote access and PLC pass-through
💡 Projects from the predecessor software DTools can be imported into DToolsPro.
🏷️ Manufacturer and reliability
Kinco Automation is an established manufacturer with years of experience developing HMI and drive technology for the global industrial market. The F2156E2-PX(UL) is CE certified (EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019) and meets the EMC requirements for industrial use in Europe. For export to the USA and Canada the device is listed under UL file E344264 (UL categories NRAQ and NRAQ7, Programmable Controllers). Kinco HMIs are in service at well over 100 spstiger customers in Germany.
🔧 Mounting, environment and scope of delivery
Overall dimensions: 395 × 259 × 26 mm
Panel cut-out: 382 × 246 mm
Mounting: Panel mounting in the cabinet door plus VESA mount 100 × 100 mm
Housing: Metal, PCB with protective coating (three-proof coating)
Weight: 3.0 kg
Power supply: 18 – 28 V DC, galvanically isolated, 15 W at 24 V DC
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +60 °C
Humidity: 0 – 90 % RH, non-condensing
Protection rating: IP65 (Front)
