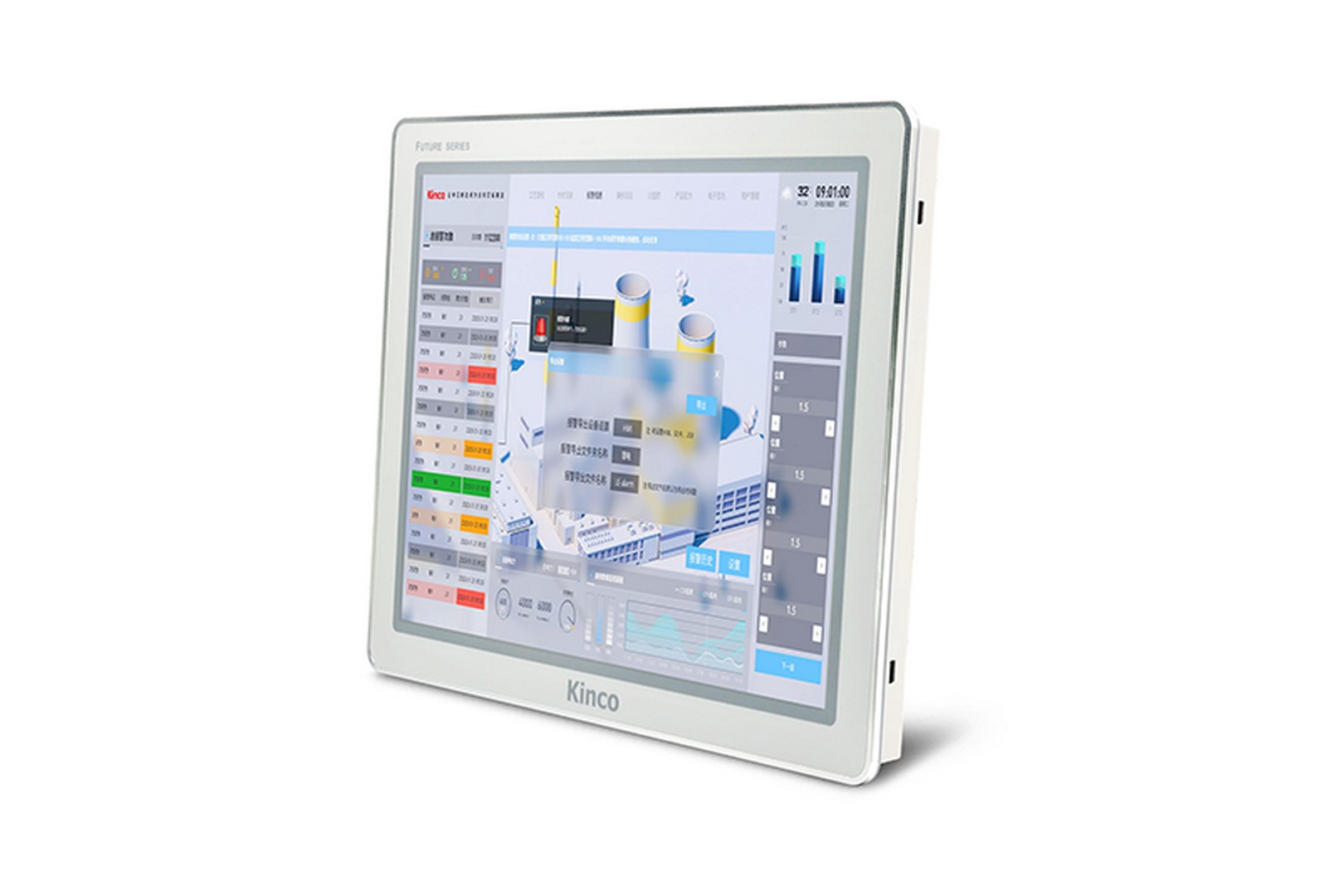

Kinco F2150E2 15" HMI touch panel with WLAN, 1024 × 768, 2 × Ethernet
- Built-in WLAN 802.11 b/g/n
- 1024 × 768, 2500:1 contrast
- 2 × Ethernet, LAN0 gigabit
- 3 COM ports (RS232/485/422)
- Metal housing, IP65
€879.00*
Available in 14 days, delivery time 3 bis 5 Tage
Compatible programming software
The Kinco F2150E2 is the only device in the F2 series with built-in WLAN — and the only one in 4:3 format. 15 inches, 1024 × 768 pixels, a 2500:1 contrast ratio and three serial interfaces. A specialist, not an all-rounder.
🏭 Typical applications
WLAN directly in the panel: for plants with no network cable at the operating position — mobile machines, retrofitted lines, control panels where no cable runs.
4:3 legacy visualisation: if you are continuing an old 1024 × 768 project you do not have to redraw the screens — widescreen would distort everything or leave borders.
High contrast requirement: 2500:1 is the best the series offers — for dark environments or displays with large black areas.
Network separation plus serial: two Ethernet ports and three COM ports in one device.
🖥️ Display and performance
1024 × 768 pixels in 4:3 format on 15 inches — the classic industrial format for legacy visualisations that were never redrawn for widescreen. The 2500:1 contrast ratio is the highest figure in the entire F2 series, viewing angle stability is 88° all round.
Resolution: 1024 × 768 pixels (4:3)
Brightness: 350 cd/m² | Contrast: 2500:1 | Viewing angle: 88° / 88° / 88° / 88°
Touch: 4-wire resistive, 4H surface hardness
CPU: Quad-Core ARM 1,8 GHz
Memory: 1 GB RAM + 8 GB eMMC flash
Real-time clock: built in, NTP-synchronisable
🧤 Resistive touch: for gloves and damp environments
The 4-wire resistive touch responds to mechanical pressure. It works with safety gloves, with wet fingers and with any stylus — exactly where capacitive panels give up.
💡 No multi-touch, no swipe gestures. If you need pinch-to-zoom in trend charts, choose Kinco F2156E2-PX (15,6", kapazitiv, Full HD).

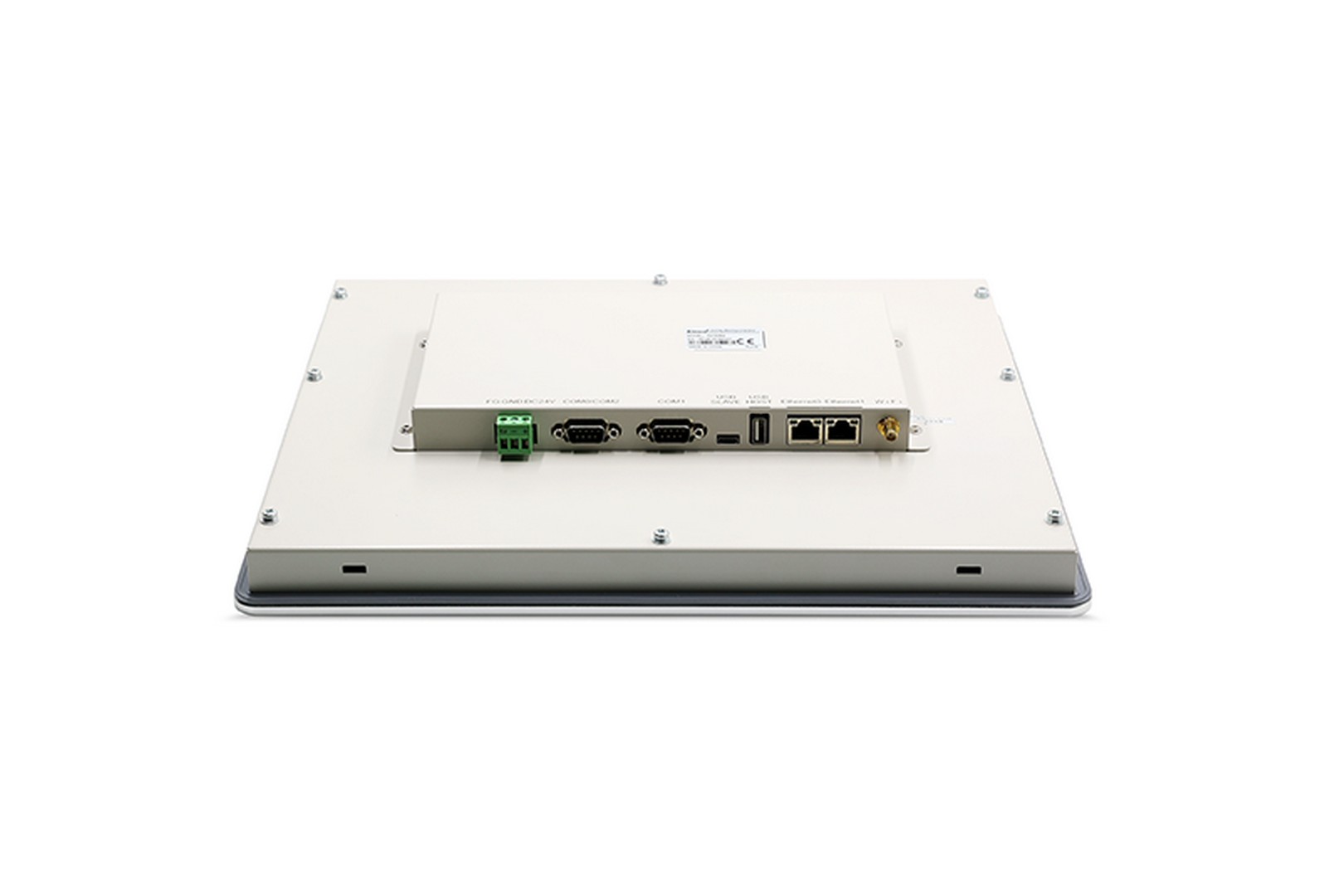

🔌 Interfaces and connectivity
Ethernet LAN0: 10/100/1000 Mbit/s (Gigabit), RJ45
Ethernet LAN1: 10/100 Mbit/s, RJ45 — second independent port for separated networks
WLAN: IEEE 802.11 b/g/n, built in
COM0 (3-in-1): RS-232, RS-485 and RS-422 in one DB9 connector — one of them usable at a time
COM1: RS-485/RS-422
COM2: RS-232
USB: 1 × USB host (stick, keyboard, barcode scanner, webcam) + 1 × USB slave (program download)
⚠️ Two things to check before ordering
1. The panel cut-out is a special size. The F2150E2 needs 352 × 279 mm. The classic Kinco 15-inch dimension of the DTools devices (GH150E, GL150E, G2150E2, GT2150E2) is 383 × 283 mm. When swapping devices the cut-out has to be modified.
2. Full HD is available for less. The 15.6-inch devices in the series deliver 1920 × 1080 instead of 1024 × 768 — for example the F2156E2. The F2150E2 pays off when WLAN or the 4:3 format is explicitly required. Otherwise not.
🌐 Protocols and PLC compatibility
If you need to merge data from different sources or visualise plants across vendor boundaries, the drivers shipped with Kinco DToolsPro do it directly — no separate communication processor, no licence fees. The software is free.
Modbus RTU (client and server) via RS-485/RS-422 — the standard for compact machines and legacy installations
Modbus TCP (client and server) via Ethernet — for networked controllers
OPC UA server and client — for cross-vendor networking and MES integration
MQTT publisher and subscriber, BACnet IP, NTP
Siemens TIA Portal: symbolic tags can be imported directly — no manual retyping of addresses
Vendor drivers (selection): Siemens S7-200/200 SMART/300/400/1200/1500 and LOGO!, Beckhoff TwinCAT, Mitsubishi MELSEC FX/FX5U/Q/iQ-R, Omron CJ/CS/CP/NJ/NX, Allen Bradley CompactLogix, Schneider Modicon, Delta DVP, Inovance, Panasonic FP, Xinje XC/XD/XL, CODESYS V3 — over 60 drivers in total
Remote access: built-in VPN function, EdgeAccess 2.0 for remote access and PLC pass-through
💡 Projects from the predecessor software DTools can be imported into DToolsPro.
🏷️ Manufacturer and reliability
Kinco Automation is an established manufacturer with years of experience developing HMI and drive technology for the global industrial market. The F2150E2 is CE certified (EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019) and meets the EMC requirements for industrial use in Europe. Kinco HMIs are in service at well over 100 spstiger customers in Germany.
🔧 Mounting, environment and scope of delivery
Overall dimensions: 366 × 293 × 50 mm
Panel cut-out: 352 × 279 mm
Mounting: Panel mounting in the cabinet door, mounting clamps included
Housing: Metal, PCB with protective coating (three-proof coating)
Weight: 3.3 kg
Power supply: 18 – 28 V DC, galvanically isolated, 15 W at 24 V DC
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +60 °C
Humidity: 0 – 90 % RH, non-condensing
Protection rating: IP65 (Front)
