The Lilliput TK2380/T is the best-equipped monitor in the TK series: 23.8 inches of Full HD, DisplayPort with 4K at 60 Hz, USB-C for touch and video, a 9 to 36 V DC input range and the full ruggedness package with 7H, IK07 and NEMA 4.

🏭 Typical applications

• Control room with high frame rate: DisplayPort accepts 4K at 60 Hz — for camera feeds, live trends and animated process views it is the only port in the series that delivers this.

• Vehicles and mobile plant: 9 to 36 V DC covers 12 V and 24 V on-board supplies including voltage dips, with no ballast.

• Large-format outdoor terminal: Anti-glare 7H glass, IK07, IP65 and NEMA 4 at the front, operation from -20 °C, automatic dimming.

• Single-cable operator station: USB-C carries touch and video together. The optional screw-lock cable prevents accidental disconnection.

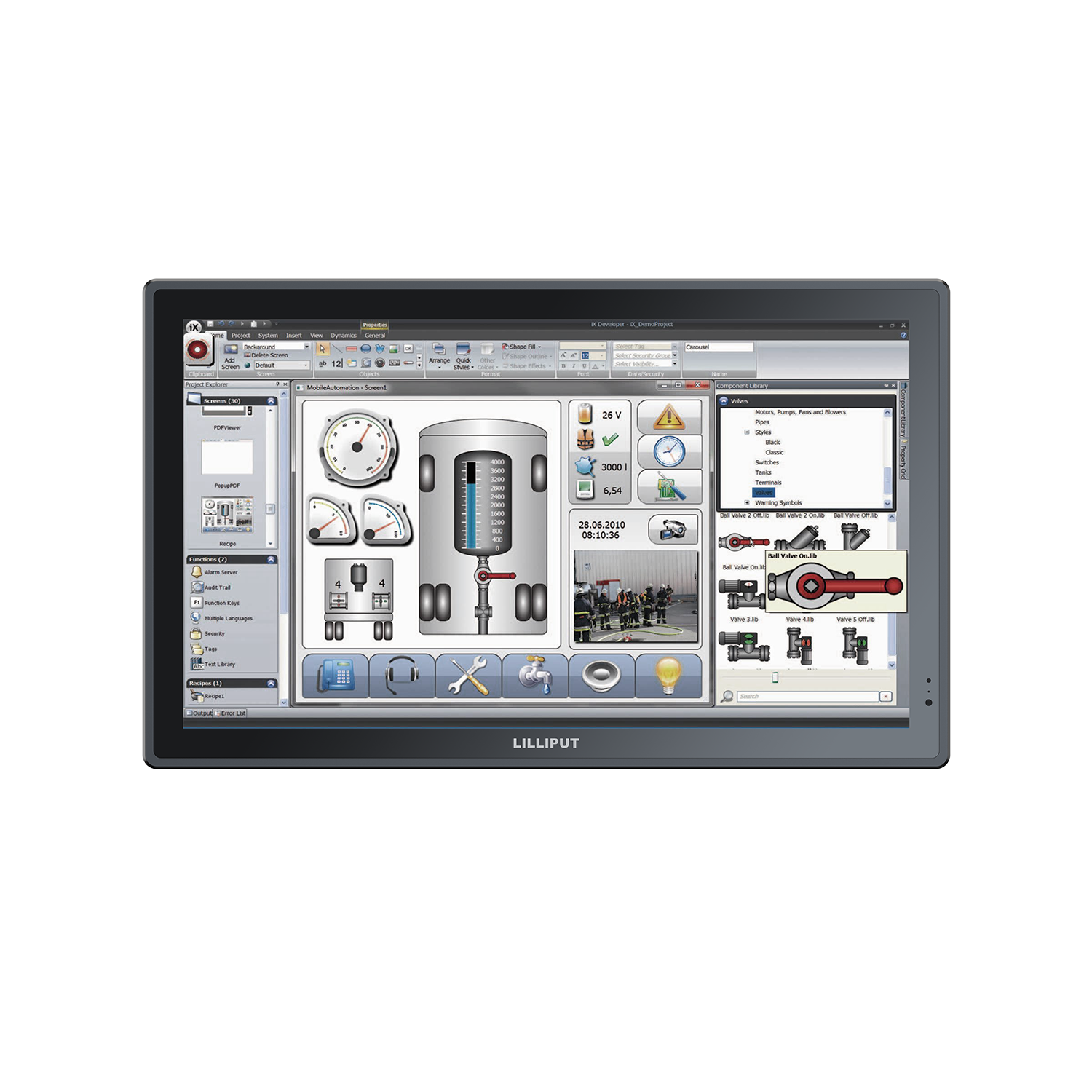

🖥️ Display

• 23.8" LCD with 1920 × 1080 pixels

• Brightness 1000 cd/m² (nits) — sunlight readable

• Contrast 1000:1, viewing angle 178° / 178° (horizontal / vertical)

• Anti-glare and anti-fingerprint surface

• Hardness ≥ 7H (ASTM D3363), impact resistance ≥ IK07 (EN 62262)

• Automatic brightness control based on ambient light

👆 10-point capacitive touch

The capacitive touch responds to a light touch and supports multi-touch gestures such as zooming and scrolling. It is reported to the computer as a standard input device — no drivers need to be installed. Operation is also possible with wet hands and with rubber, latex or PVC gloves.

🔌 DisplayPort and USB-C — new in the TK series

The TK2380/T is the first unit in the series with DisplayPort. The difference matters in practice: over HDMI the monitor accepts 4K at 30 Hz, over DisplayPort 4K at 60 Hz. If you need smooth rendering at high resolution, use DisplayPort.

The USB-C port carries the touch data and, optionally, the video signal — then a single cable to the computer is enough. The wide 9 to 36 V DC input range is also unique in the series and covers 12 V and 24 V on-board supplies with headroom in both directions.

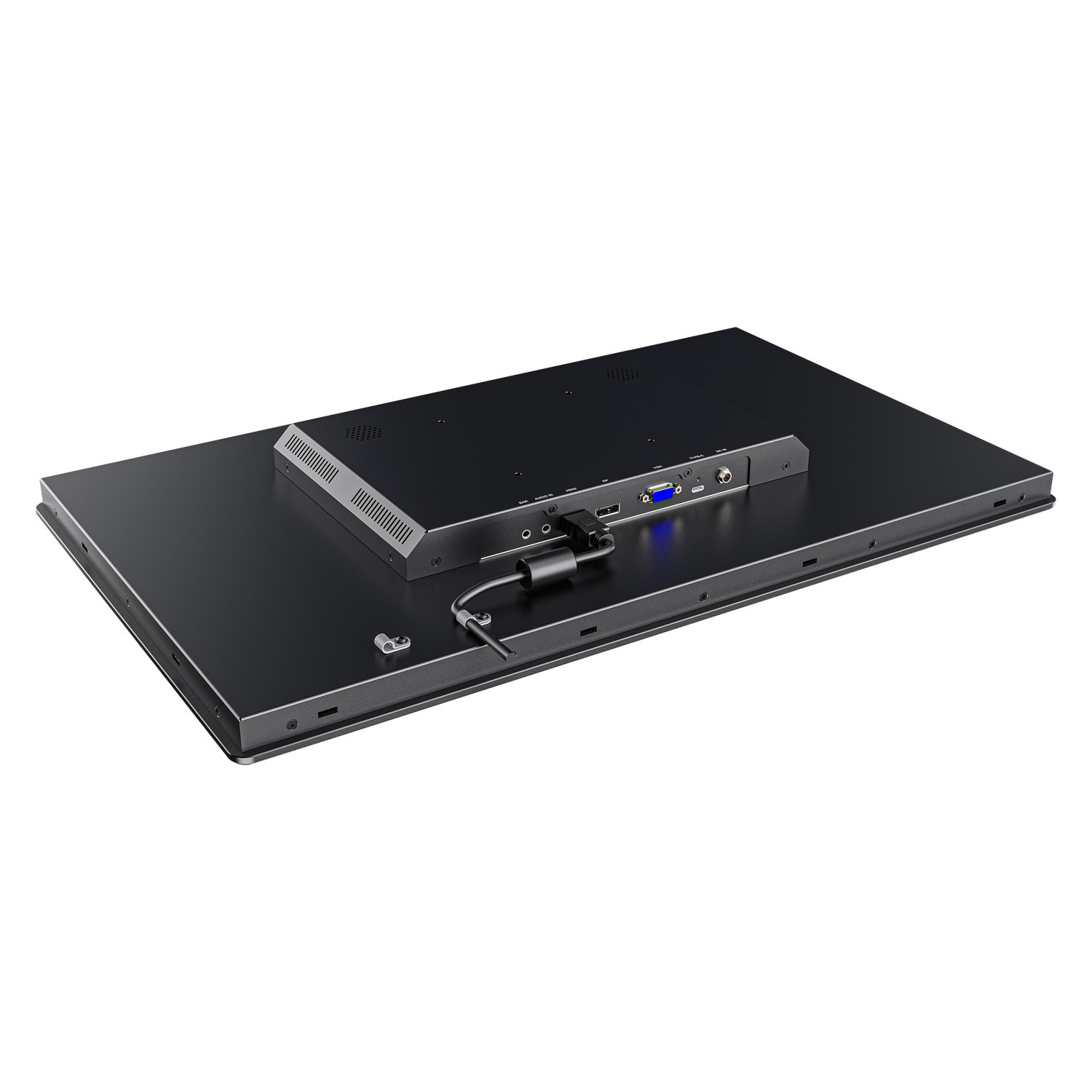

🔌 Connections

The unit is a pure monitor without its own CPU. The image comes from a PC, industrial PC or controller; touch is returned via USB.

• HDMI (up to 4K at 30 Hz)

• DisplayPort (up to 4K at 60 Hz)

• VGA (up to 1080p at 60 Hz)

• USB-C for touch and optionally video

• 3.5 mm audio input

• 3.5 mm headphone output

The 1920 × 1080 resolution matches the output of a Kinco xF-SiHMI exactly — as well as any industrial PC or Raspberry Pi.

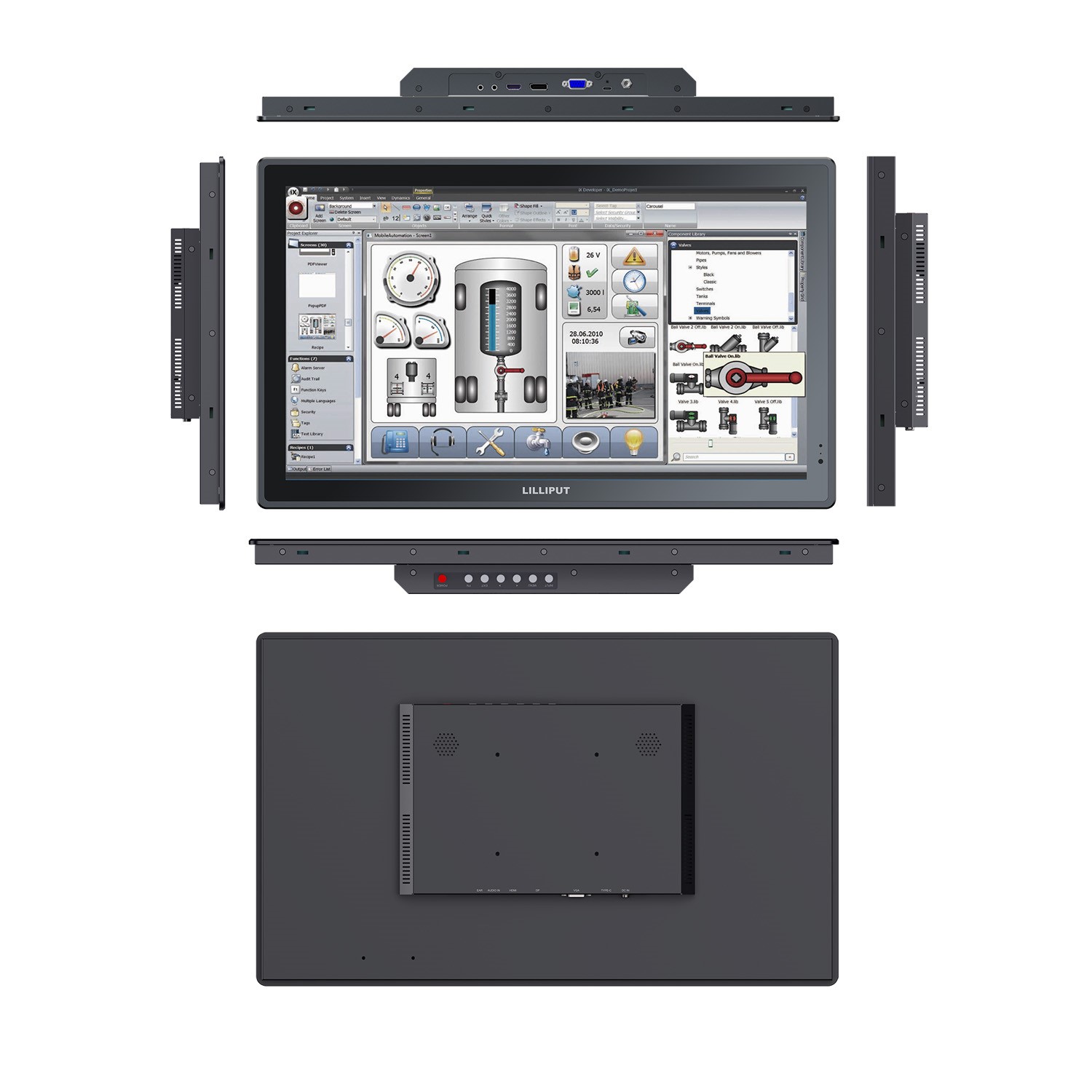

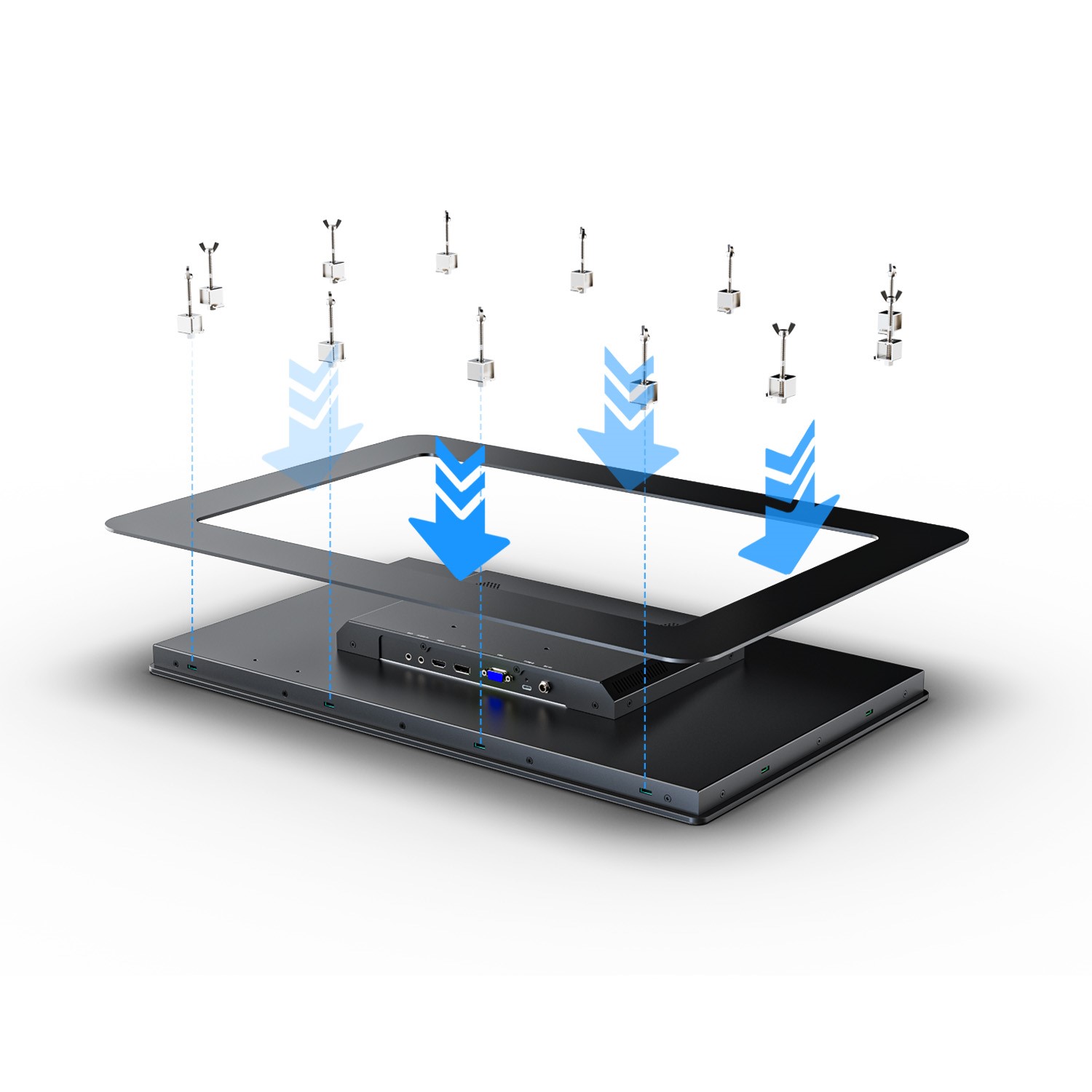

🔧 Mounting and scope of delivery

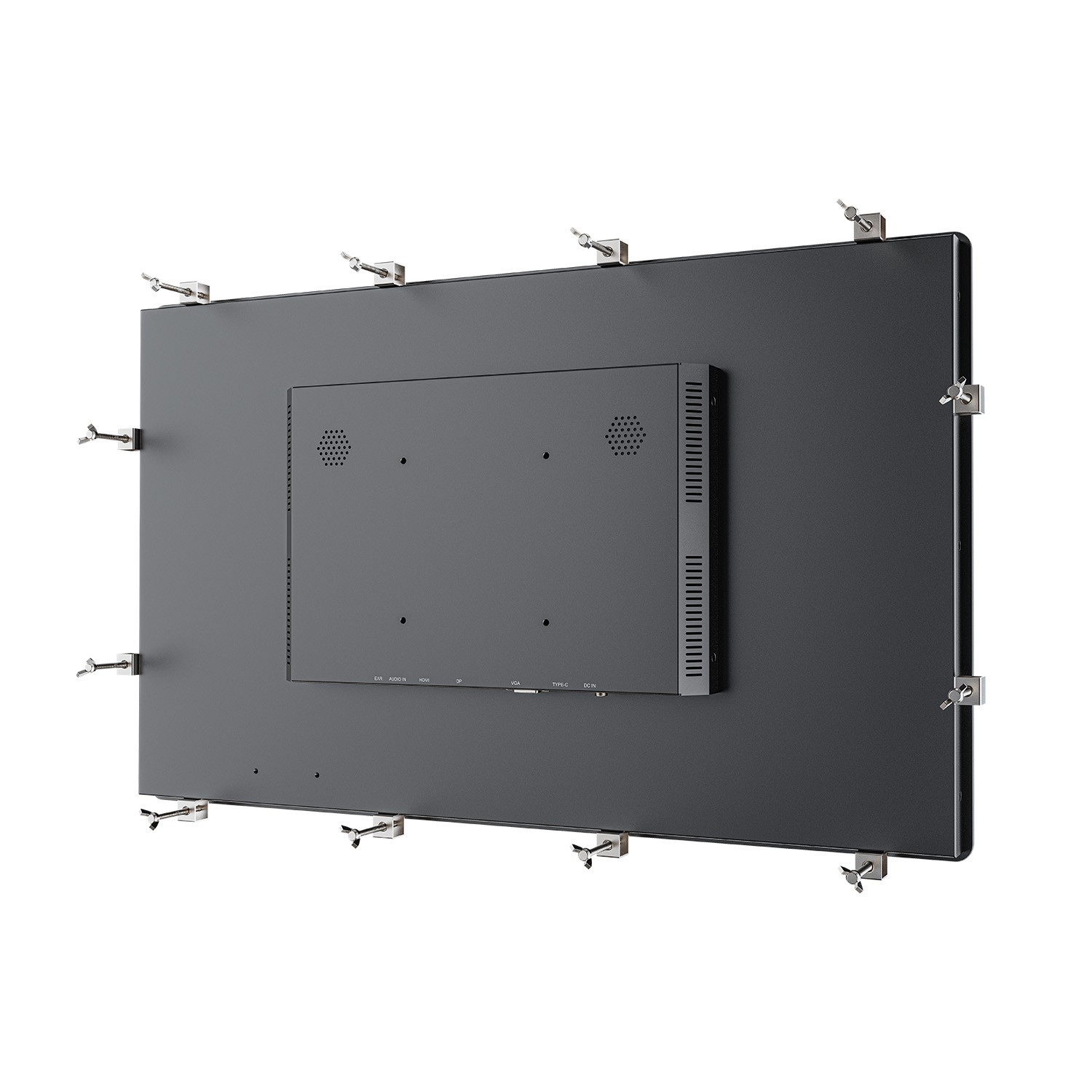

VESA 100 mm. Twelve screw kits and four cable clamps for panel mounting are included; a remote control and a USB-C cable with screw lock are available as options.

• Outer dimensions 587 × 357 × 55 mm, weight 7.6 kg

• Supply 9 – 36 V DC, power consumption ≤ 55 W

• Protection IP65 (front panel), NEMA 4

• Operation -20 °C to +60 °C, storage -30 °C to +70 °C

• Included: 12 V power supply (5 A), HDMI cable, VGA cable, USB cable for touch

Tested for vibration (1.5 Grms, 5 – 500 Hz, 1 h per axis to IEC 60068-2-64) and shock (10 g, half-sine, 11 ms to IEC 60068-2-27).

🏷️ Manufacturer and reliability

Lilliput Electronic Technology has been developing and manufacturing monitors for industry, broadcast and vehicle applications for over 20 years. The TK series is designed for continuous operation and is CE compliant. All specifications on this page have been checked against the manufacturer's datasheet; values marked 🔍 are derived and not confirmed in writing.
