Lilliput 10" touch monitor with HDMI connection 1500 Nits IP65
- Enhanced Full HD 1920 x 1200
- HDMI, VGA & USB-C
- Touch
- 1500 Nits
- IP65
€350.00*
Available in 30 days, delivery time 3 bis 5 Tage
Customers also viewed
Customers also viewed
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
Available in 30 days, delivery time 3 bis 5 Tage
Preis exkl. MwSt., zzgl. Versandkosten
The Lilliput TK1331/T is the first 13-inch unit to combine what is usually sold separately: optically bonded cover glass, anti-glare surface, 7H hardness, IK07 impact resistance and a capacitive touch that also works with gloves.
🏭 Typical applications
Machine operation in wet areas: IP65 and NEMA 4 at the front, plus operation with gloves and wet fingers. Suitable for food processing and washdown zones.
Workshop and maintenance: 7H hardness and IK07 mean a tool trolley bumping into it leaves no crack. The anti-glare surface keeps hall lighting out of the picture.
Outdoor terminals: Optical bonding prevents condensation and dust between glass and panel; automatic dimming reduces power draw at night.
Retrofit with an existing controller: The 1920 × 1080 resolution matches the output of a Kinco xF-SiHMI or any industrial PC exactly.
🖥️ Display
13.3" LCD with 1920 × 1080 pixels
Brightness 1000 cd/m² (nits) — sunlight readable
Contrast 1000:1, viewing angle 160° / 160° (horizontal / vertical)
Anti-glare and anti-fingerprint surface
Hardness ≥ 7H (ASTM D3363), impact resistance ≥ IK07 (EN 62262)
Automatic brightness control based on ambient light

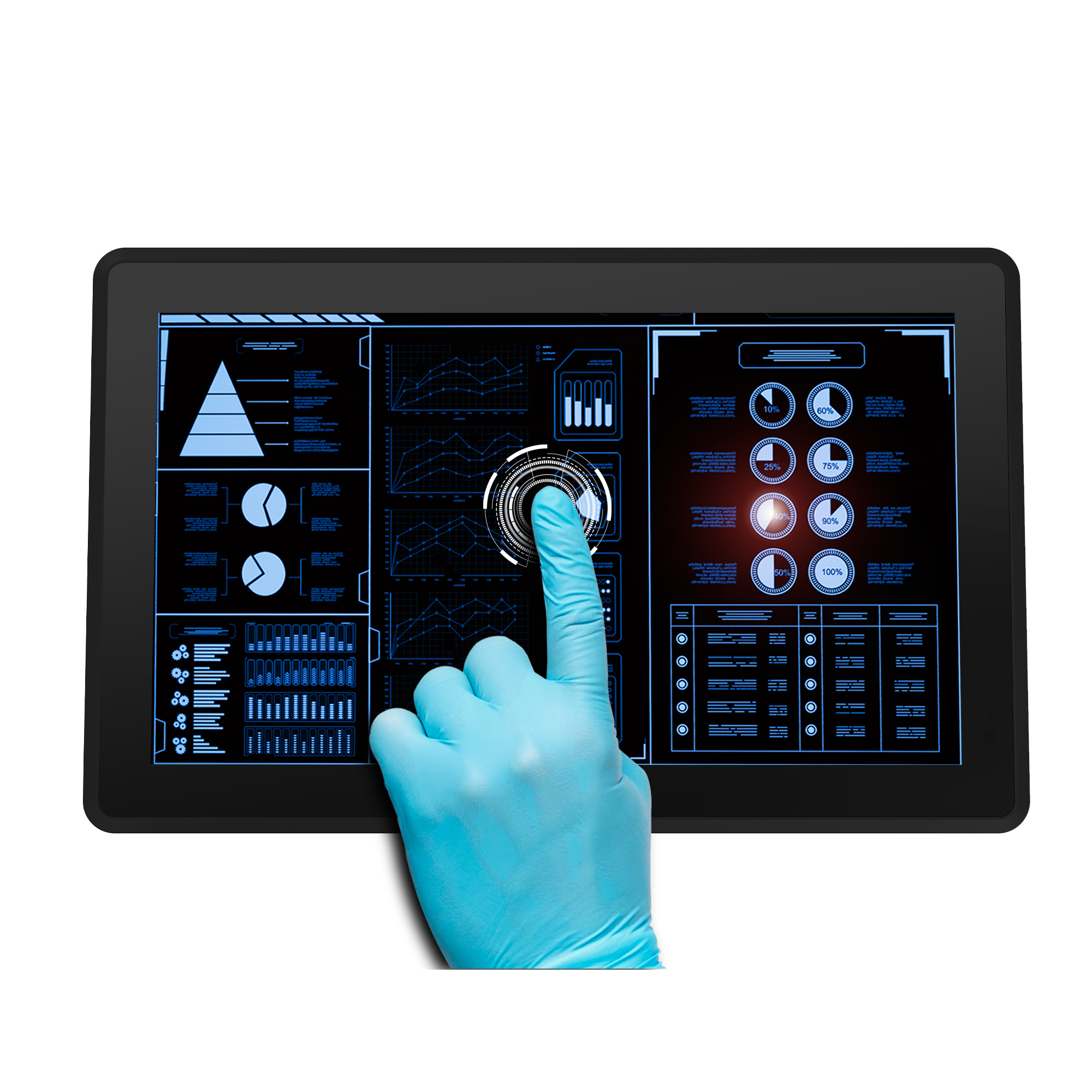

👆 10-point capacitive touch
The capacitive touch responds to a light touch and supports multi-touch gestures such as zooming and scrolling. It is reported to the computer as a standard input device — no drivers need to be installed. Operation is also possible with wet hands and with rubber, latex or PVC gloves.

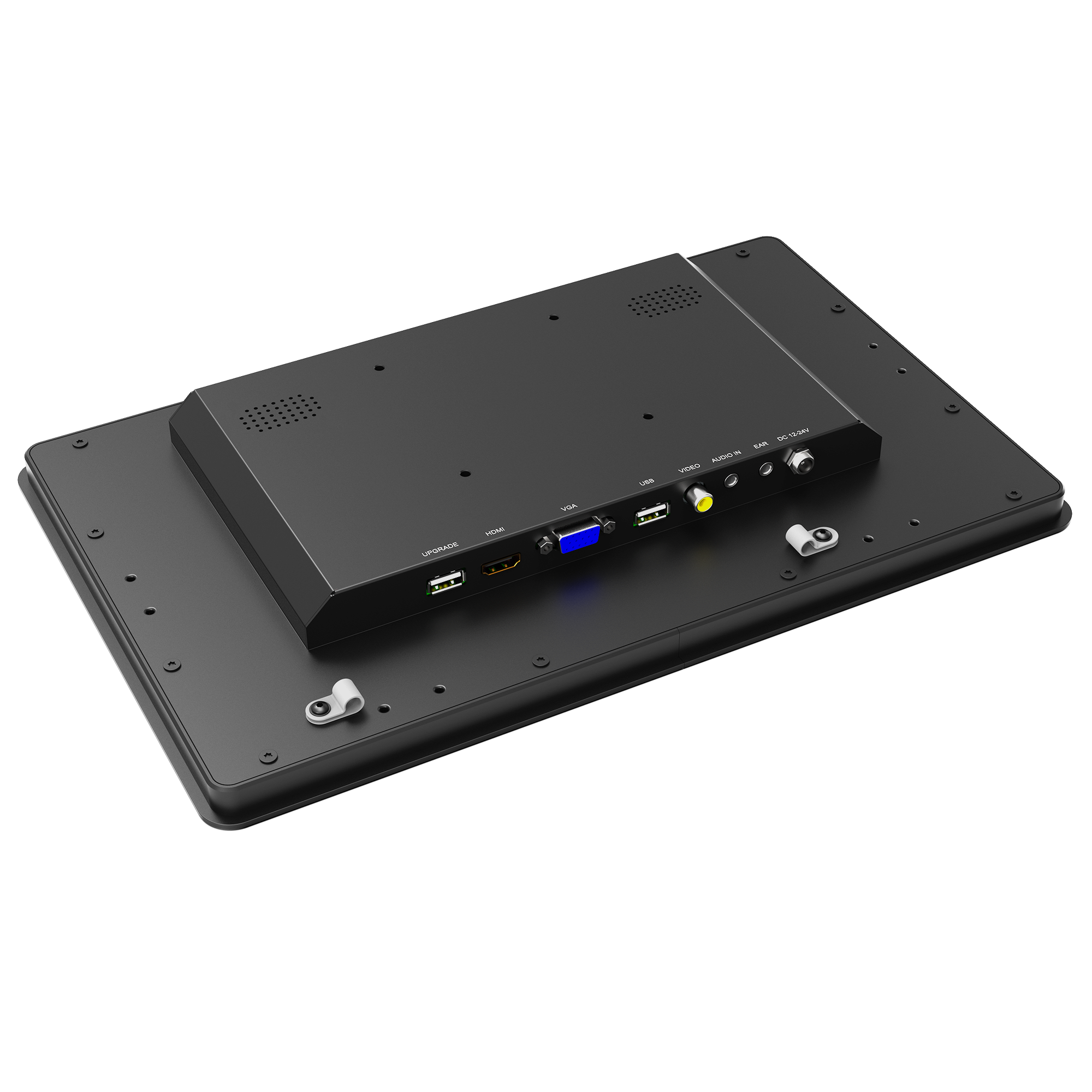

🔌 Connections
The unit is a pure monitor without its own CPU. The image comes from a PC, industrial PC or controller; touch is returned via USB.
HDMI (up to 4K at 30 Hz)
VGA (up to 1080p at 60 Hz)
AV input (RCA) for video
3.5 mm audio input
3.5 mm headphone output
USB-A for the touch function
USB-A for firmware updates
The 1920 × 1080 resolution matches the output of a Kinco xF-SiHMI exactly — as well as any industrial PC or Raspberry Pi.
🔧 Mounting and scope of delivery

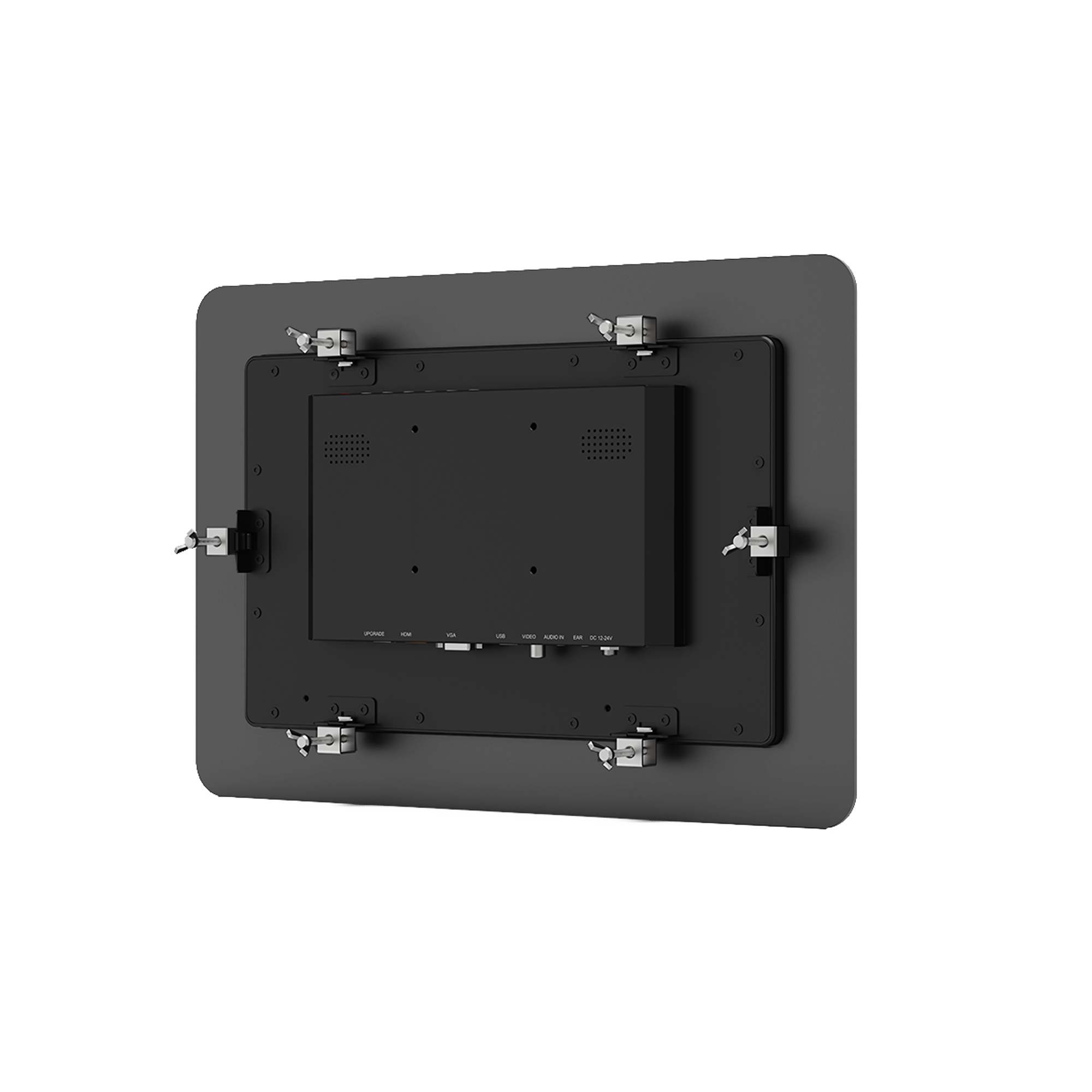

VESA 75 mm. The folding bracket for desk or ceiling mounting is optional; six screw kits and four cable clamps for panel mounting are included.
Outer dimensions 340 × 211 × 36 mm, weight 1.8 kg
Supply 12 – 24 V DC, power consumption ≤ 13 W
Protection IP65 (front panel), NEMA 4
Operation -20 °C to +60 °C, storage -30 °C to +70 °C
Included: 12 V power supply (2 A), HDMI cable, VGA cable, USB cable for touch
🏷️ Manufacturer and reliability
Lilliput Electronic Technology has been developing and manufacturing monitors for industry, broadcast and vehicle applications for over 20 years. The TK series is designed for continuous operation and is CE compliant. All specifications on this page have been checked against the manufacturer's datasheet; values marked 🔍 are derived and not confirmed in writing.
LILLIPUT is a global manufacturer of industrial display solutions and embedded systems based in Zhangzhou, China. Since 1993, the company has been developing and manufacturing robust touch monitors, panel PCs and special displays for professional use in machines and systems.
With its many years of experience, LILLIPUT offers customized OEM and ODM solutions for mechanical engineering - from electronics development and housing adaptation to series production. The displays are characterized by compact designs, diverse interfaces(e.g. HDMI, VGA, USB, RS232/485) and high reliability in continuous industrial use.
Whether for visualization, operation or system integration: LILLIPUT products are used in industrial environments worldwide and are manufactured in accordance with ISO 9001. An experienced engineering team, short development times and high delivery reliability make LILLIPUT a strong partner for machine builders and system integrators.
