Kinco F2156E2(UL) 15.6" Future 2 Series HMI touch panel, UL for USA/Canada
- UL listed (E344264)
- 1920 × 1080 Full HD
- 2 × Ethernet, LAN0 gigabit
- Resistive touch, glove-proof
- 89° viewing angle all round
€679.00*
Available in 14 days, delivery time 3 bis 5 Tage
Compatible programming software
The UL variant of the Full HD 15-inch panel with resistive touch: the Kinco F2156E2(UL) carries the UL marking for the USA and Canada. 1920 × 1080 pixels, glove-capable operation, two separate networks — technically identical to the F2156E2.
🏭 Typical applications
Network separation with gigabit: LAN0 at 10/100/1000 Mbit/s for the upper-level network, LAN1 at 10/100 for the machine network — no gateway, no route through corporate IT.
Wet areas and mandatory gloves: resistive touch at Full HD — food, chemicals, cleaning cycles with foam.
New machines with Full HD visualisation: overview, alarms and trends at the same time, plus symbolic tags imported straight from the TIA Portal.
Remote access and MES integration: OPC UA server and client, MQTT and built-in VPN — the data goes upstream with no additional hardware in the cabinet.

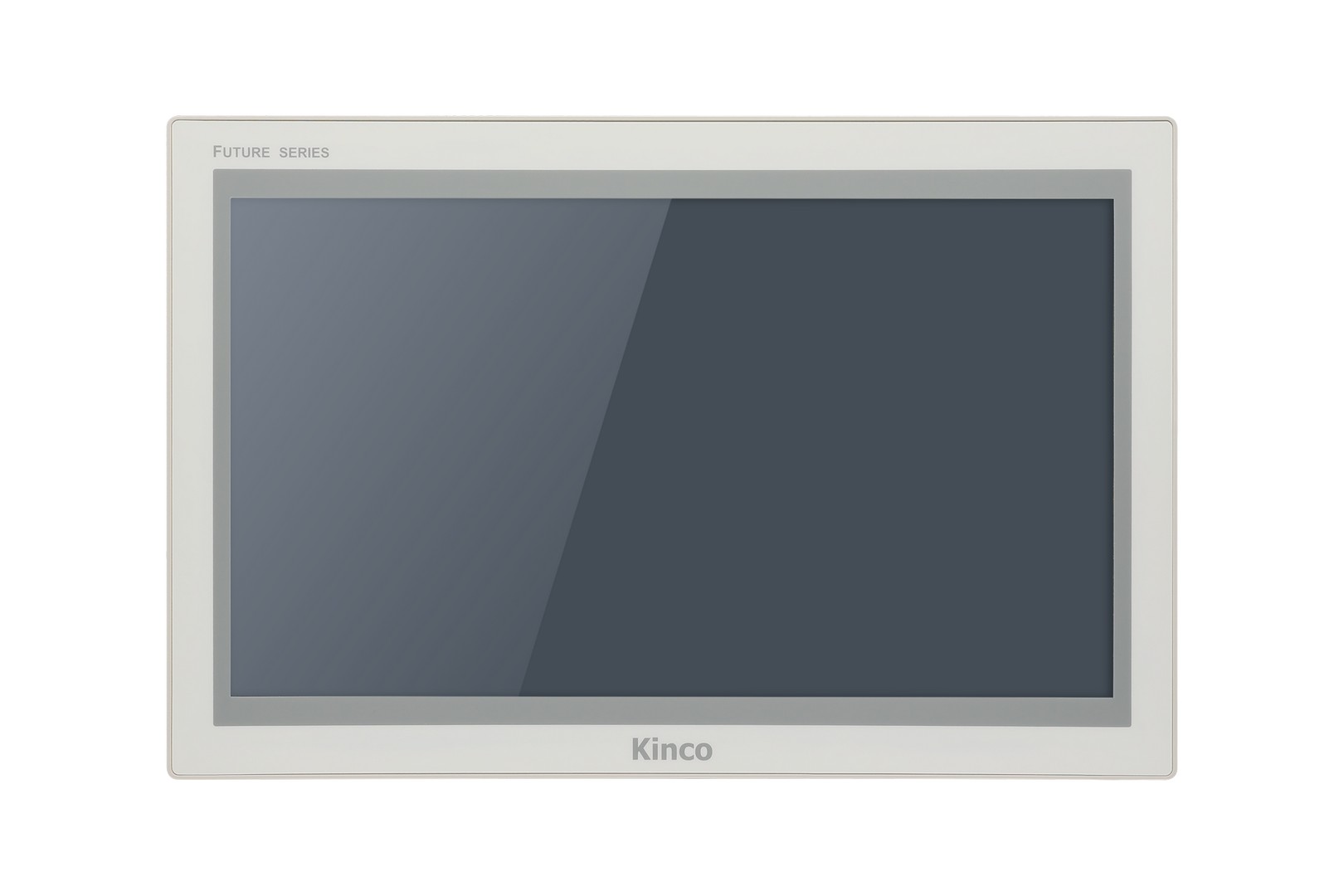

🖥️ Display and performance
1920 × 1080 pixels on 15.6 inches, 1000:1 contrast and 89° viewing angle stability in all four directions — the image stays colour-accurate even from below or from the side. That is the difference to the F2156E, whose panel drops off at 85° vertically. The quad-core at 1.8 GHz with 1 GB RAM keeps pages with many live values fluid.
Resolution: 1920 × 1080 pixels (Full HD, 16:9)
Brightness: 300 cd/m² | Contrast: 1000:1 | Viewing angle: 89° / 89° / 89° / 89°
Touch: 4-wire resistive, 4H surface hardness
CPU: Quad-Core ARM 1,8 GHz
Memory: 1 GB RAM + 8 GB eMMC flash
Real-time clock: built in, NTP-synchronisable
🧤 Resistive touch: for gloves and damp environments
The 4-wire resistive touch responds to mechanical pressure. It works with safety gloves, with wet fingers and with any stylus — exactly where capacitive panels give up.
💡 No multi-touch, no swipe gestures. If you need pinch-to-zoom in trend charts, choose Kinco F2156E2-PX (kapazitiv, sonst identisch).

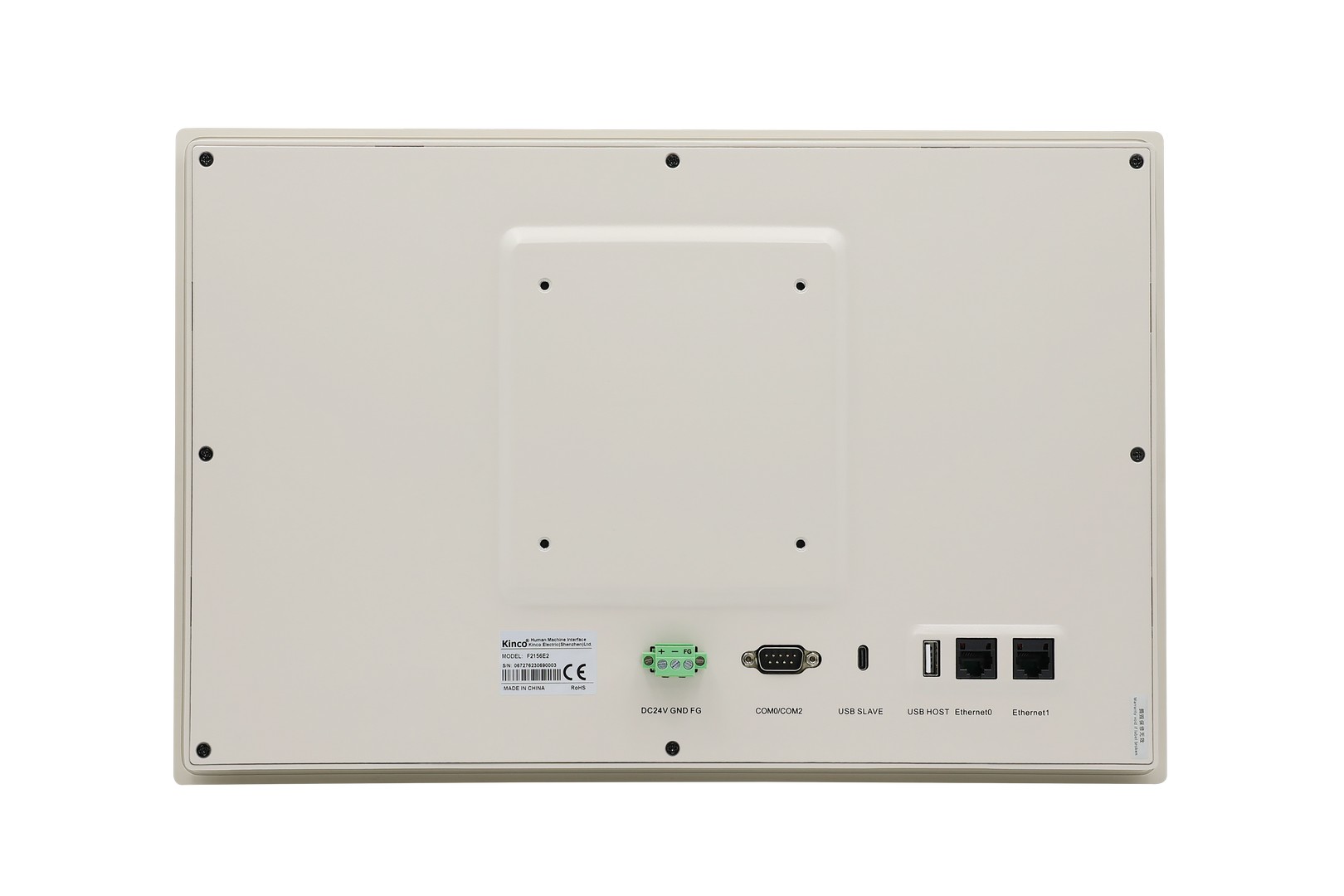

🔌 Interfaces and connectivity
Ethernet LAN0: 10/100/1000 Mbit/s (Gigabit), RJ45
Ethernet LAN1: 10/100 Mbit/s, RJ45 — second independent port for separated networks
COM0 (3-in-1): RS-232, RS-485 and RS-422 in one DB9 connector — one of them usable at a time
COM1: RS-485/RS-422
COM2: RS-232
USB: 1 × USB host (stick, keyboard, barcode scanner, webcam) + 1 × USB slave (program download)
🇺🇸 UL for export to the USA and Canada
This is the UL-marked order variant of the F2156E2. Technically identical to the standard model — the difference is the marking your machine needs for the North American market.
UL file: E344264, holder Kinco Electric (Shenzhen) Ltd.
USA: UL category NRAQ — Programmable Controllers
Canada: UL category NRAQ7 — Programmable Controllers Certified for Canada
Standard: UL 61010-1 (manufacturer specification)
💡 For machines staying in Europe the F2156E2 is sufficient — same technology, lower price.
⚠️ When planning the installation, check which marking your customer or the accepting insurer actually requires. We are happy to send you the UL file as evidence in advance.
📦 Availability: orderable here in the shop like any other article. We keep the UL variants in stock — if one is temporarily unavailable, the delivery time extends accordingly.
💡 F2156E2, F2156E or F2156E2-PX
F2156E2: 2 × Ethernet, resistive, 3 × COM, 89° viewing angle all round
F2156E: 1 × Ethernet, resistive, 2 × COM — cheaper
F2156E2-PX: like the F2156E2 but with capacitive glass touch and multi-touch
F2156E2 MAX: like the F2156E2 but 64 GB flash and 2 GB RAM — for trend archives and recipe management
🌐 Protocols and PLC compatibility
If you need to merge data from different sources or visualise plants across vendor boundaries, the drivers shipped with Kinco DToolsPro do it directly — no separate communication processor, no licence fees. The software is free.
Modbus RTU (client and server) via RS-485/RS-422 — the standard for compact machines and legacy installations
Modbus TCP (client and server) via Ethernet — for networked controllers
OPC UA server and client — for cross-vendor networking and MES integration
MQTT publisher and subscriber, BACnet IP, NTP
Siemens TIA Portal: symbolic tags can be imported directly — no manual retyping of addresses
Vendor drivers (selection): Siemens S7-200/200 SMART/300/400/1200/1500 and LOGO!, Beckhoff TwinCAT, Mitsubishi MELSEC FX/FX5U/Q/iQ-R, Omron CJ/CS/CP/NJ/NX, Allen Bradley CompactLogix, Schneider Modicon, Delta DVP, Inovance, Panasonic FP, Xinje XC/XD/XL, CODESYS V3 — over 60 drivers in total
Remote access: built-in VPN function, EdgeAccess 2.0 for remote access and PLC pass-through
💡 Projects from the predecessor software DTools can be imported into DToolsPro.
🏷️ Manufacturer and reliability
Kinco Automation is an established manufacturer with years of experience developing HMI and drive technology for the global industrial market. The F2156E2(UL) is CE certified (EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019) and meets the EMC requirements for industrial use in Europe. For export to the USA and Canada the device is listed under UL file E344264 (UL categories NRAQ and NRAQ7, Programmable Controllers). Kinco HMIs are in service at well over 100 spstiger customers in Germany.
🔧 Mounting, environment and scope of delivery
Overall dimensions: 395 × 259 × 26 mm
Panel cut-out: 382 × 246 mm
Mounting: Panel mounting in the cabinet door plus VESA mount 100 × 100 mm
Housing: Metal, PCB with protective coating (three-proof coating)
Weight: 3.0 kg
Power supply: 18 – 28 V DC, galvanically isolated, 15 W at 24 V DC
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +60 °C
Humidity: 0 – 90 % RH, non-condensing
Protection rating: IP65 (Front)
