Kinco F2121E2(UL) 12.1" Future 2 Series HMI touch panel, UL for USA/Canada
- UL listed (E344264)
- 1280 × 800 IPS, 1200:1
- 2 × Ethernet, LAN0 gigabit
- 3 COM ports (RS232/485/422)
- Metal housing, IP65
€709.00*
Available in 14 days, delivery time 3 bis 5 Tage
Compatible programming software
The UL variant of the 12.1-inch panel: the Kinco F2121E2(UL) carries the UL marking for the USA and Canada. IPS panel with 1280 × 800 pixels in a metal housing, two separate networks, three serial interfaces.
🏭 Typical applications
Network separation in the mid-range: LAN0 with gigabit and LAN1 at 10/100 separate machine and office network with no separate gateway.
Process visualisation with trend curves: 1280 × 800 and 1200:1 contrast show several curves stacked without labels blurring.
Serial peripherals as well: three COM ports for drives, scales and Modbus RTU nodes in parallel with Ethernet.
Data logging in the device: data logger, real-time clock with NTP sync and recipe management keep running locally — even when the network is down.
🖥️ Display and performance
1280 × 800 pixels on a 12.1" IPS panel with 1200:1 contrast — the highest contrast figure in the 12-inch class. Axis labels in trend charts and small process values stay sharp, black looks black even under stray light. Viewing angle stability 85° in all directions.
Resolution: 1280 × 800 pixels (16:10)
Brightness: 400 cd/m² | Contrast: 1200:1 | Viewing angle: 85° / 85° / 85° / 85°
Touch: 4-wire resistive, 4H surface hardness
CPU: Quad-Core ARM 1,8 GHz
Memory: 1 GB RAM + 8 GB eMMC flash
Real-time clock: built in, NTP-synchronisable
🧤 Resistive touch: for gloves and damp environments
The 4-wire resistive touch responds to mechanical pressure. It works with safety gloves, with wet fingers and with any stylus — exactly where capacitive panels give up.
💡 No multi-touch, no swipe gestures. If you need pinch-to-zoom in trend charts, choose Kinco F2156E2-PX (15,6", kapazitiv, Full HD).

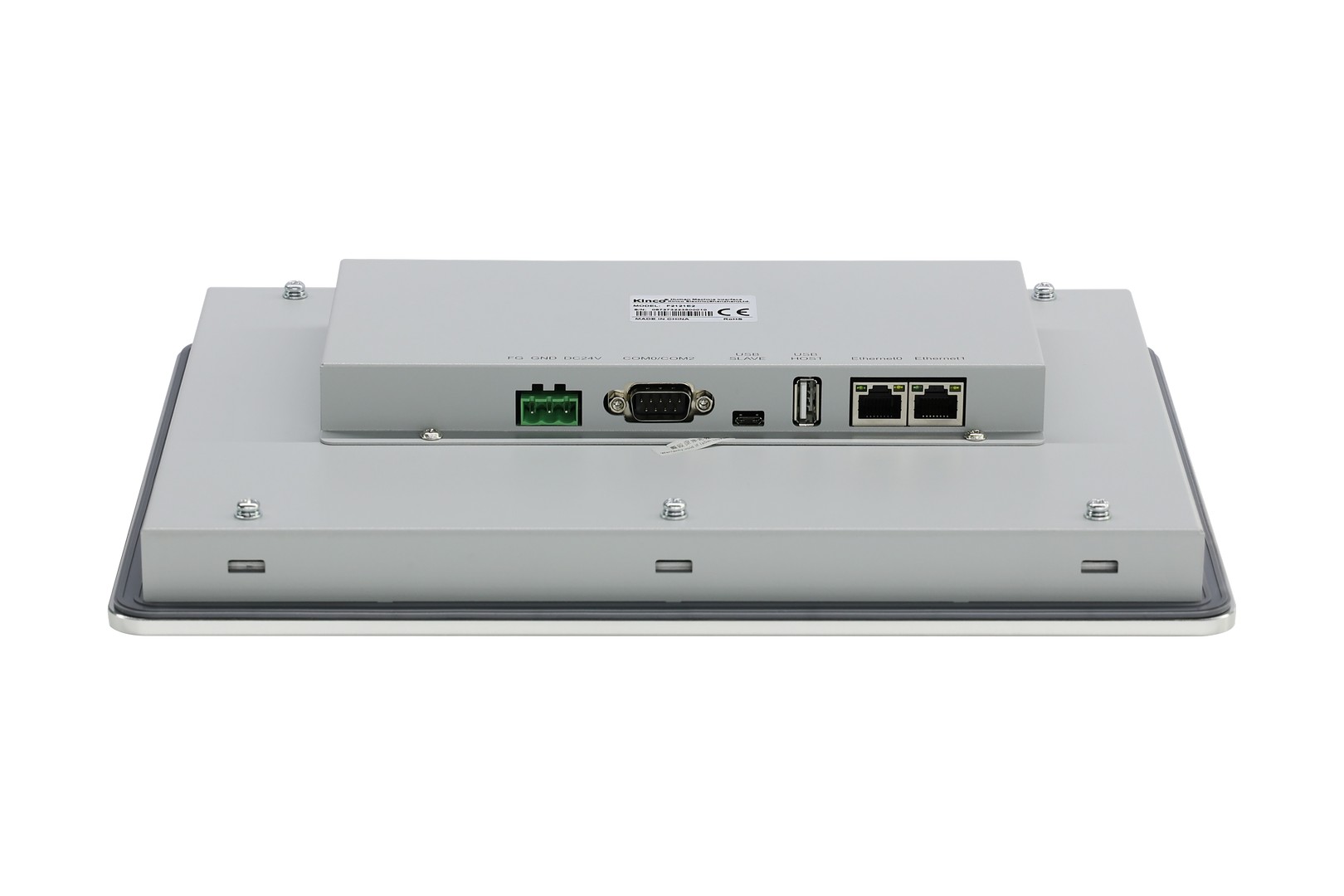

🔌 Interfaces and connectivity
Ethernet LAN0: 10/100/1000 Mbit/s (Gigabit), RJ45
Ethernet LAN1: 10/100 Mbit/s, RJ45 — second independent port for separated networks
COM0 (3-in-1): RS-232, RS-485 and RS-422 in one DB9 connector — one of them usable at a time
COM1: RS-485/RS-422
COM2: RS-232
USB: 1 × USB host (stick, keyboard, barcode scanner, webcam) + 1 × USB slave (program download)
🇺🇸 UL for export to the USA and Canada
This is the UL-marked order variant of the F2121E2. Technically identical to the standard model — the difference is the marking your machine needs for the North American market.
UL file: E344264, holder Kinco Electric (Shenzhen) Ltd.
USA: UL category NRAQ — Programmable Controllers
Canada: UL category NRAQ7 — Programmable Controllers Certified for Canada
Standard: UL 61010-1 (manufacturer specification)
💡 For machines staying in Europe the F2121E2 is sufficient — same technology, lower price.
⚠️ When planning the installation, check which marking your customer or the accepting insurer actually requires. We are happy to send you the UL file as evidence in advance.
📦 Availability: orderable here in the shop like any other article. We keep the UL variants in stock — if one is temporarily unavailable, the delivery time extends accordingly.
💡 F2121E2 or F2121E
Technically identical except for two points: the F2121E2 has two Ethernet ports (LAN0 gigabit), the F2121E only one. In exchange the F2121E is around 12 mm shallower at 37 mm versus 49 mm — an argument for tight cabinet doors, and it has a shorter lead time.
🌐 Protocols and PLC compatibility
If you need to merge data from different sources or visualise plants across vendor boundaries, the drivers shipped with Kinco DToolsPro do it directly — no separate communication processor, no licence fees. The software is free.
Modbus RTU (client and server) via RS-485/RS-422 — the standard for compact machines and legacy installations
Modbus TCP (client and server) via Ethernet — for networked controllers
OPC UA server and client — for cross-vendor networking and MES integration
MQTT publisher and subscriber, BACnet IP, NTP
Siemens TIA Portal: symbolic tags can be imported directly — no manual retyping of addresses
Vendor drivers (selection): Siemens S7-200/200 SMART/300/400/1200/1500 and LOGO!, Beckhoff TwinCAT, Mitsubishi MELSEC FX/FX5U/Q/iQ-R, Omron CJ/CS/CP/NJ/NX, Allen Bradley CompactLogix, Schneider Modicon, Delta DVP, Inovance, Panasonic FP, Xinje XC/XD/XL, CODESYS V3 — over 60 drivers in total
Remote access: built-in VPN function, EdgeAccess 2.0 for remote access and PLC pass-through
💡 Projects from the predecessor software DTools can be imported into DToolsPro.
🏷️ Manufacturer and reliability
Kinco Automation is an established manufacturer with years of experience developing HMI and drive technology for the global industrial market. The F2121E2(UL) is CE certified (EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019) and meets the EMC requirements for industrial use in Europe. For export to the USA and Canada the device is listed under UL file E344264 (UL categories NRAQ and NRAQ7, Programmable Controllers). Kinco HMIs are in service at well over 100 spstiger customers in Germany.
🔧 Mounting, environment and scope of delivery
Overall dimensions: 313 × 235 × 49 mm
Panel cut-out: 295 × 217 mm
Mounting: Panel mounting in the cabinet door, mounting clamps included
Housing: Metal, PCB with protective coating (three-proof coating)
Weight: 3.2 kg
Power supply: 18 – 28 V DC, galvanically isolated, 15 W at 24 V DC
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +60 °C
Humidity: 0 – 90 % RH, non-condensing
Protection rating: IP65 (Front)
