Kinco SZ7PE 7" Handheld HMI-Touchpanel mit Ethernet und RS-485
- Ethernet & RS-485
- Emergency stop, 6 keys
- Resistive touch, IP54
- Kinco DTools Pro
- Handheld, 5 m cable
Customers also viewed
Customers also viewed
Anyone who needs a rugged interface for mobile operation right at the machine – mounted on a support arm or held by hand during commissioning – will find the Kinco SZ7PE built exactly for that: a physical emergency stop, six freely assignable keys, and a rugged plastic housing rated IP54.
🏭 Typical Applications
Mobile machine control: With the 5- or 10-meter cable, the SZ7PE can be carried freely – ideal for robot cells or systems where the operator needs to move around during setup.
Commissioning and maintenance: The built-in emergency stop and six keys allow direct access to enables and test functions without opening the control cabinet.
Retrofitting existing systems: Via Ethernet or RS-485, the SZ7PE connects to existing PLCs without replacing the controller itself.
Harsh environments: IP54 protection for the whole unit makes the SZ7PE suitable for workshops with dust and splash-water exposure.
🖥️ Display and Operation
The 7" widescreen display resolves at 1024 × 600 pixels with 16.7 million colors and offers an 85° viewing angle in all directions. With a contrast ratio of 800:1 and 450 cd/m² brightness, the display stays legible even in daylight conditions at the point of use.
🧤 Resistive Touch: rugged and glove-friendly
The 4-wire resistive touchscreen responds to mechanical pressure – regardless of whether it's operated with a bare finger, a glove, or a stylus. For mobile use with work gloves, this is the more practical choice over capacitive screens.
🔌 Connectivity
1× Ethernet: for connecting to a PLC or network.
1× RS-485 (COM0): for serial Modbus communication with existing systems.
1× USB Host: for project transfer via USB stick.
🌐 Remote Maintenance with EdgeAccess
Anyone servicing devices at customer sites or on remote systems without being on-site every time can use EdgeAccess 2.0: Kinco's remote maintenance platform allows remote access to the HMI project for diagnostics and updates.
🔗 Programming with Kinco DTools Pro
The SZ7PE is programmed with the free Kinco DTools Pro software – the same software generation as the current F2, G2, and GL2 series. Projects can largely be transferred between device families, which makes switching from a stationary to a mobile operator device easier.
🏷️ Manufacturer and Reliability
Kinco Automation is an established manufacturer with years of experience developing HMI and drive technology for the global industrial market. The SZ7PE is CE-certified (EN 61000-6-4:2019, EN 61000-6-2:2019) and meets EMC requirements for industrial use in Europe. Kinco HMIs are in use at well over 100 spstiger customers in Germany.
🔧 Mounting and Scope of Delivery

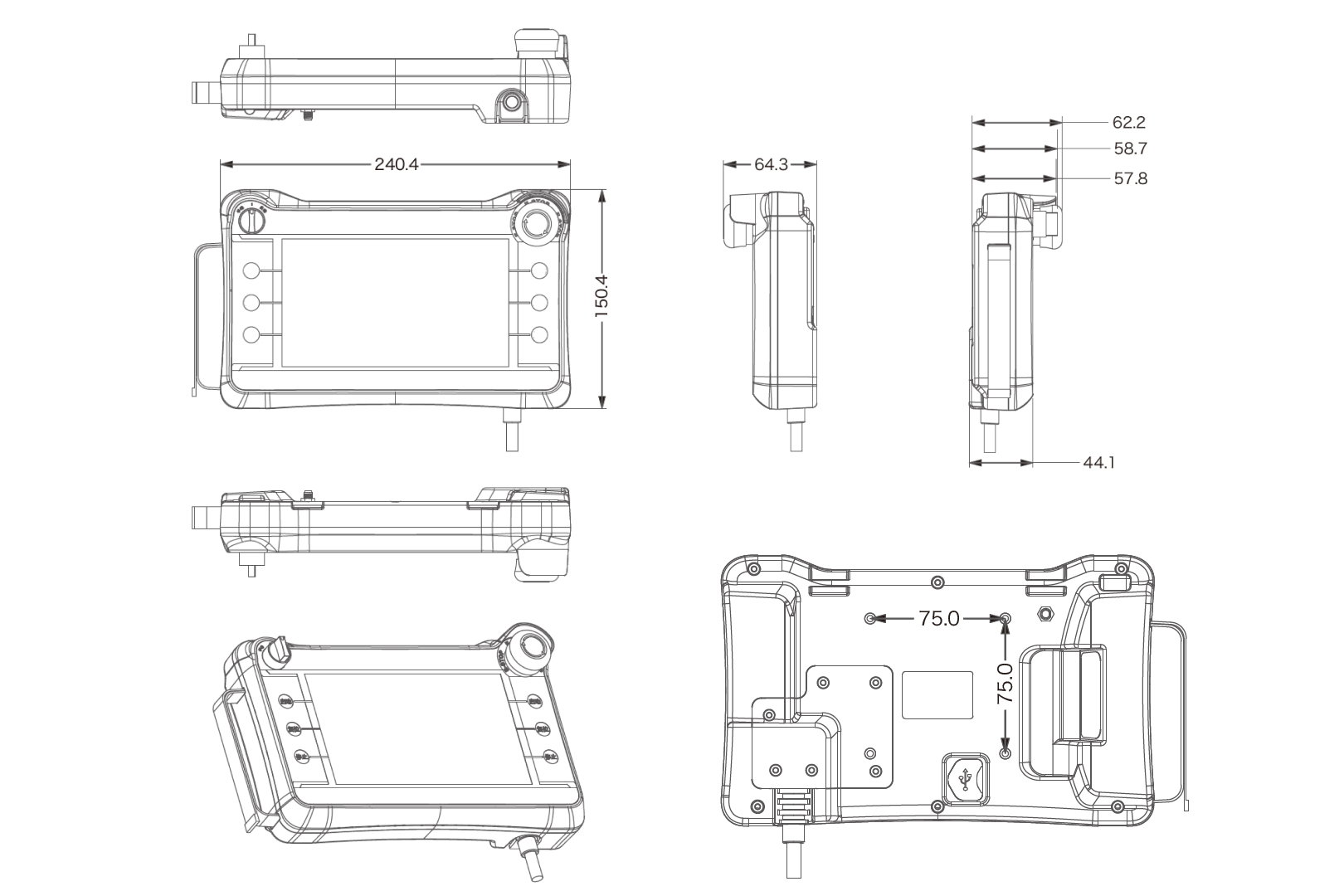

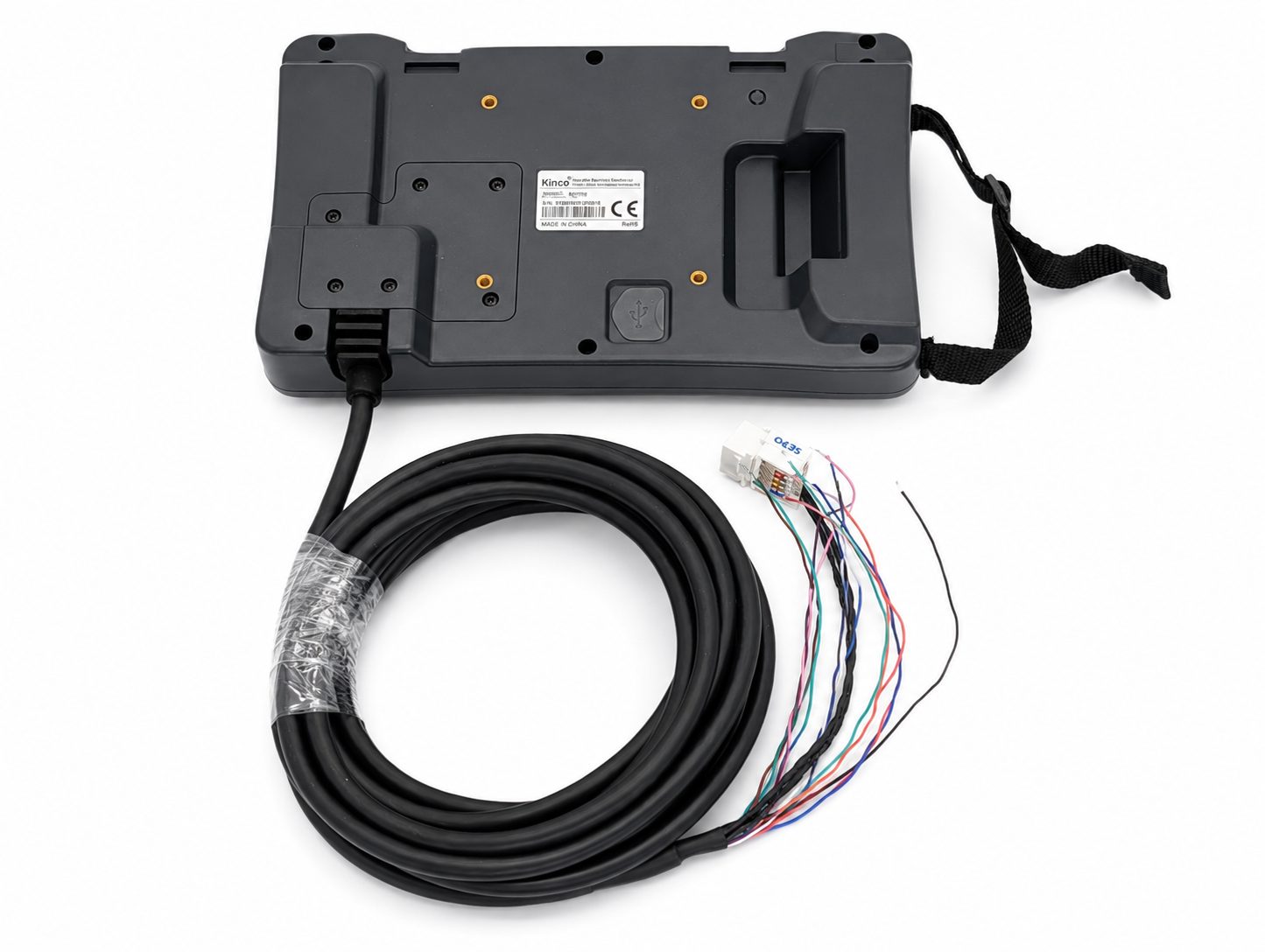

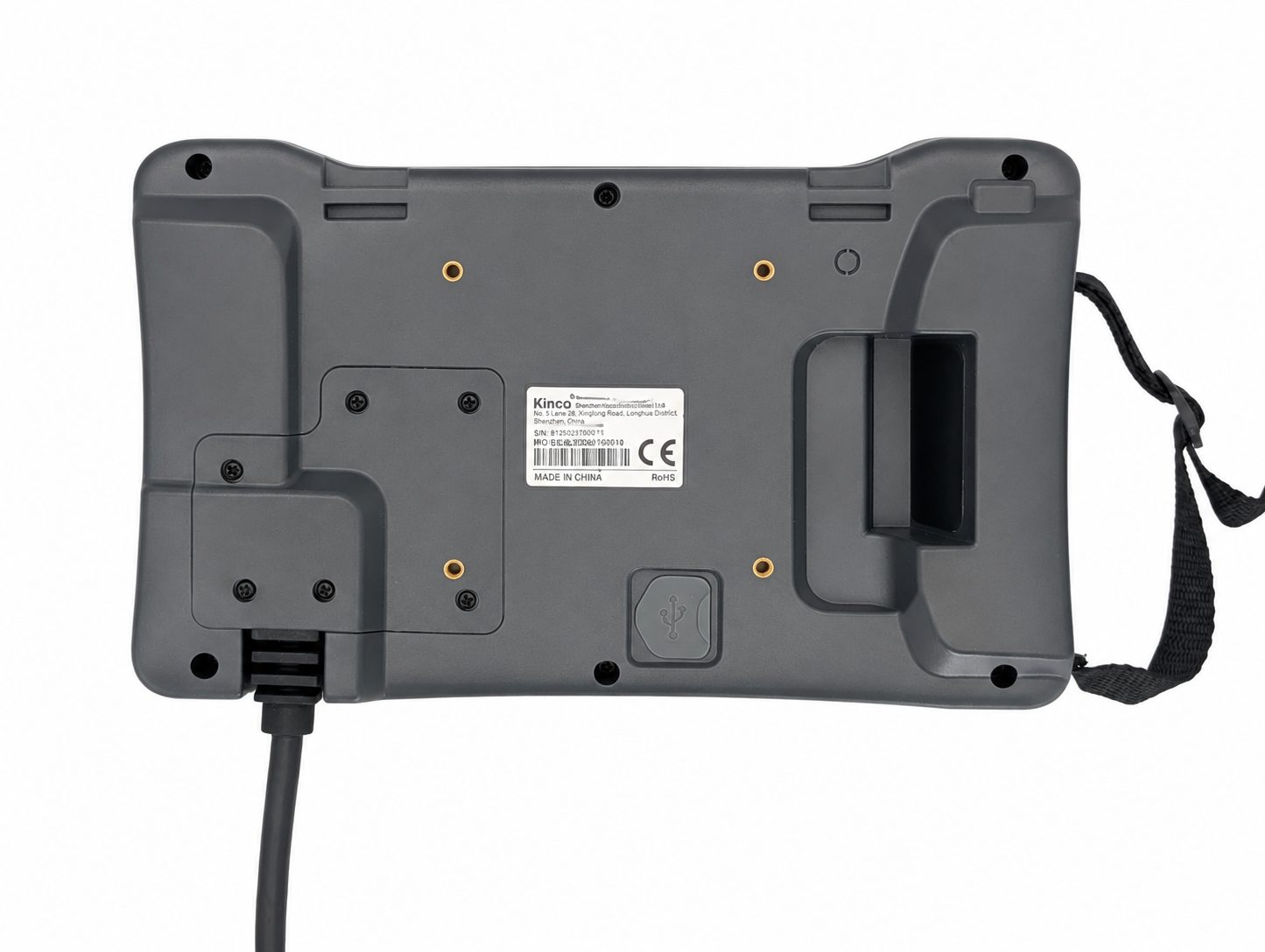

The SZ7PE is powered via a 5-meter 14-core cable and can be mounted either handheld or via a bracket with a 75 × 75 mm (VESA-compatible) mounting pattern. Dimensions: 204 × 150 × 44 mm.
