Kinco F2070E2 7" Future 2 Series widescreen HMI touch panel with 2 x Ethernet

Quantity Unit price
To 3
€340.00*
To 19
€323.00*
To 39
€306.00*
To 99
€289.00*
From 100
€272.00*

Available, delivery time: 2-5 days

Product number:
KIH.F2070E2
Manufacturer no.:
F2070E2
Manufacturer
Kinco
Create PDF quotation
Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.
Product information "Kinco F2070E2 7" Future 2 Series widescreen HMI touch panel with 2 x Ethernet"

The F2070E2 is the latest high-end model of the Kinco HMI touch panel with a 7'' screen diagonal. It has a resolution of 800 * 480 pixels and an Ethernet interface.

Compared to the Green Series, the F2070E2 of the Future 2 Series has a significantly faster processor (quad-core ARM with 1.8 GHz) and more internal memory (8 GB eMMC + 1 GB RAM). This means that even more complex applications for machine control with many images and data logging are possible and the speed of response during operation is continuously very high. Compared to NAND flash, the eMMC memory is durable and can be written to quickly, making it very suitable as a memory for data loggers.


The Future Series also supports IP cameras to display video surveillance images directly on the HMI. The device also has an audio output. This allows loudspeakers to be connected to create more pleasant sounds, e.g. for alarms, than the beeping of the Green Series' internal loudspeaker. Even voice output would be possible.


The device has the same dimensions as the GL070E and the G070E. At 400 cd/m², the HMI is also relatively bright, significantly brighter than the GL070E with only 250 cd/m².

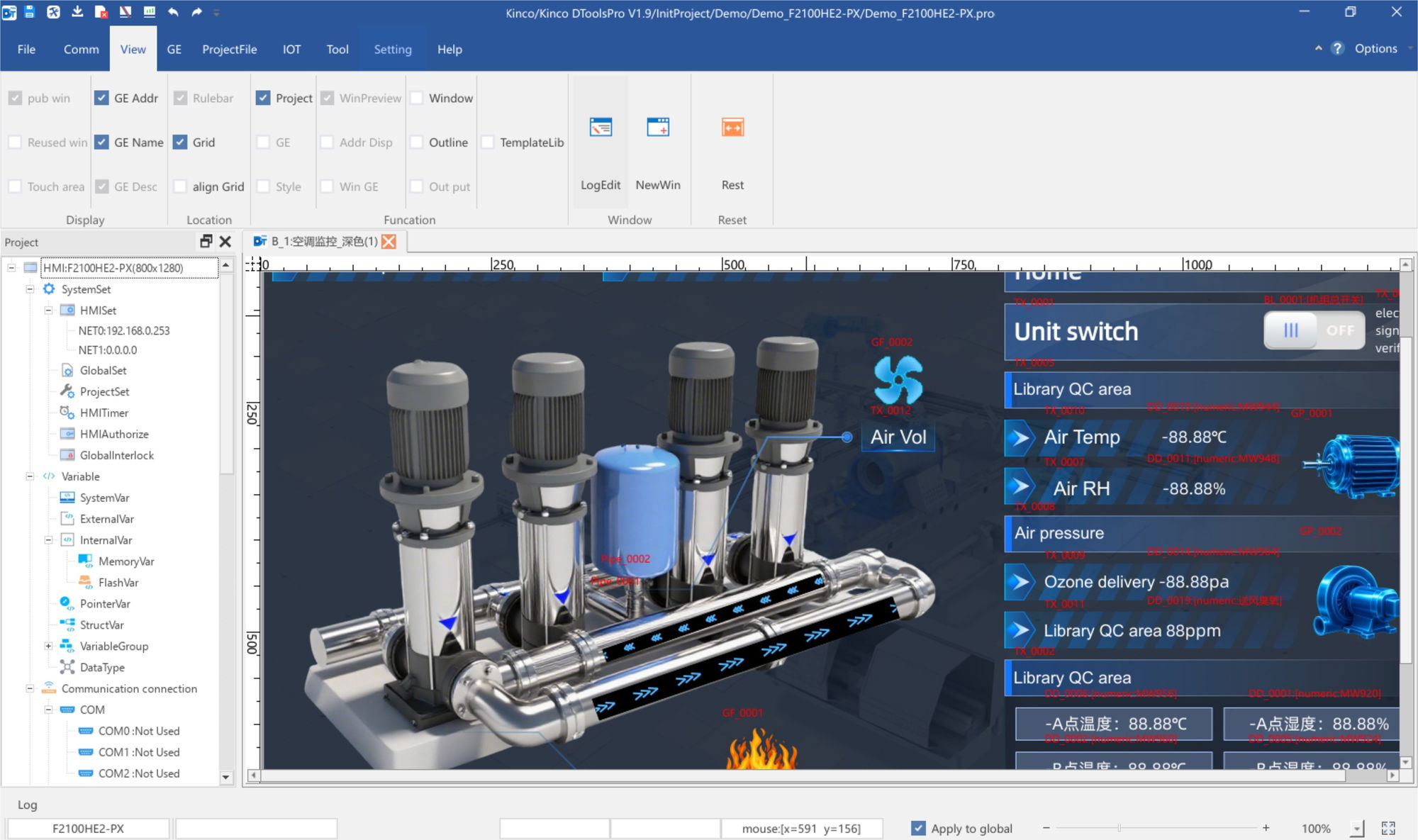

The HMI is programmed using the free Kinco DTools software. This can be downloaded further down on this page. The software is available in German.

PLCs, frequency inverters and other devices that you want to visualize or control can be connected via Ethernet and serial interface. The touch panel offers you a versatile range of functions and simple graphical configuration of PLC communication. The touch panel is ideal for machine control systems or smaller system control elements.

The device supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many others.

Functions (excerpt):

  • Versatile graphic elements for display and operation
  • Animations
  • Individual graphic elements and images possible
  • Extensive data logging
  • Recipe management
  • VNC server and client for remote control (e.g. from smartphone or browser)
  • PDF display on the HMI (new)
  • User management and security
  • Alarms and events
  • Own language switching for users programmable via text tables
  • C macros for complex calculations
  • Program and recipe download via USB, USB stick or Ethernet
  • FTP server for retrieving CSVs and log files
  • XY graphs with up to 64 characteristic curves possible, histograms
  • Generation and display of QR codes
  • Scheduler for calendar-controlled functions
  • Display of IP cameras
  • ...

Kinco HMIs are now in use at well over 100 of our customers in Germany.

We are convinced that Kinco HMI touch panels also offer you, as an automation specialist or machine and plant manufacturer, a particularly cost-effective way of providing your customers with modern and versatile user interfaces.

Electrical properties
Dielectric strength: 500 VAC 1 minute
Isolated power supply: Yes
Nominal supply voltage: 24 V DC
Permissible voltage range: 18 - 28 V DC
Power consumption: 7 watts
Display
Backlight: LED
Brightness: 400 cd/m²
Contrast ratio: 800:1
Display colors: 16.7 million
Screen diagonal: 7" / 18 cm
Screen resolution: 800 * 480
Touchtype: 4-wire resistive
Viewing angle stability (left / right / top / bottom): 80° / 80 ° / 80° / 60°
Interfaces, protocols and connections
CANopen: no CANopen
Communication driver for PLCs: ABB AC500 (serial + Ethernet) , Allen Bradley (serial + Ethernet) , BACnet (serial + Ethernet) , Beckhoff Twincat ADS (Ethernet) , Codesys V2 (Ethernet) , Codesys V3 (Ethernet) , Emerson RX3i (Ethernet) , GE SNP (serial) , IDEC MicroSmart (Ethernet only) , IDEC MicroSmart (serial + Ethernet) , Kinco PLC (serial + Ethernet) , Mitsubishi FX (serial + Ethernet) , Mitsubishi Q (serial + Ethernet) , Modbus master and slave (serial + Ethernet) , Omron (serial + Ethernet) , Schneider (serial + Ethernet) , Siemens LOGO! (Ethernet) , Siemens S7-200 (serial + Ethernet) , Siemens S7-300/400 (serial + Ethernet) , Siemens S7-1200/1500 (Ethernet) , Unitronics (serial + Ethernet) , Xinje XC (serial) , Xinje XD (serial + Ethernet) , Xinje XD/XL (serial + Ethernet)
Ethercat: no Ethercat
Ethernet: 2 x 10/100 (RJ45)
Fieldbuses & protocols: Free serial communication (ASCII) , Modbus RTU Master , Modbus RTU slave , Modbus TCP Master (Client) , Modbus TCP slave (server) , Siemens MPI (as PPI for one participant only)
Free serial communication: Yes (ASCII)
Interfaces: Audio output , Ethernet , RS-232 , RS-485 , USB host , USB slave
Isolated serial interface: no
MQTT: Publisher (Client) , Subscriber (Client)
Modbus: Modbus RTU Master , Modbus RTU slave , Modbus TCP Client (Master) , Modbus TCP server (slave)
OPC UA: OPC UA Client , OPC UA Server
Profibus DP: No Profibus
RS-232 connection type: DB9 Female
RS-485 connection type: DB9 Female
SD card: none
Serial connections: COM0: RS-232/RS-485/RS-422 , COM1: RS-232/RS-485/RS-422 , COM2: RS-232
Support for camera input (CCTV): IP camera , USB camera
USB host ports: 1 x USB host (for USB memory, keyboard, webcam, barcode reader, etc.)
USB slave connections: 1 x USB slave (program download only)
VPN: Integrated VPN function for remote control and remote maintenance
Dimensions and environmental properties
Assembly: Slide-in unit (e.g. switch cabinet door with clips from behind)
Assembly detail: 192 mm x 138 mm cut-out; 32 mm depth after installation, mounting brackets supplied
Brightness: 400 cd/m²
Cooling: Ambient air (passive)
Depth: 34 mm
Dimensions (width x height x depth): 204 mm x 150 mm x 37 mm
Height: 150 mm
Housing material: Technical plastic
Operating temperature range: 0 °C to +50 °C
Protection class: IP65 (front)
Storage temperature range: - 20 °C to + 60 °C
Weight: 0.5 kg
Width: 204 mm
Other properties
Data logger: Yes
Memory: 1 GB RAM , 8 GB eMMC
Model series: Future Series
Processor: ARM Quad Core 1.8 GHz
Real-time clock: Yes (synchronization with network time possible)
Year of market launch: 2024
Programming
Language of the programming environment: Arabic , Chinese , English , German , Korean , Russian , Turkish
Programming languages: C (standard C) for macros , Graphical programming interface
Programming software: Kinco DTools Pro
Certifications
CE certificate: Yes
Standards and certifications: CE (EN61000-6-4:2007+A1:2011, EN61000-6-2:2005)
Manufacturer "Kinco"
Kinco is one of the leading manufacturers of automation technology in Asia. The company's research and development team is based at its headquarters in Shenzhen (China) on the border with Hong Kong, and Kinco also operates a research center in Germany, a unique feature among Chinese companies.
In terms of quality and range of functions, Kinco is strongly oriented towards the European and German markets. Communication drivers for Siemens S7 controllers are therefore included in every HMI. The company has a modern and reliable range of HMIs, drive technology and controllers. Kinco already generates more than 10% of its turnover internationally, and Germany is one of the manufacturer's growth markets.
