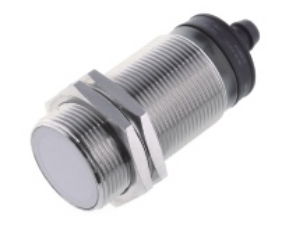

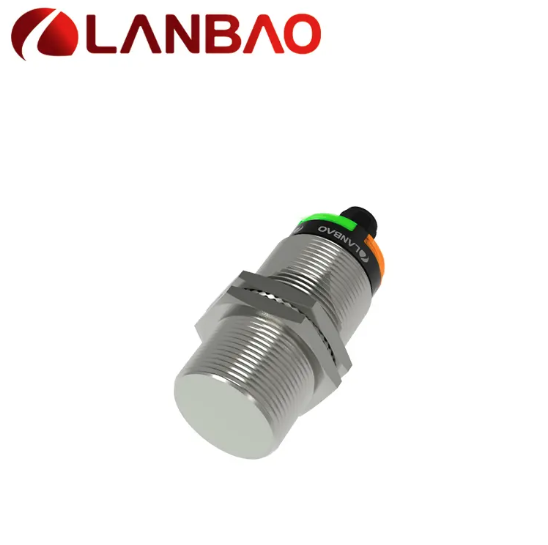

capacitive proximity switch Lanbao - diameter M30x1 - switching distance 10mm

€37.82*

Content: 1

Available, delivery time: 3 bis 5 Tage

Switch type
Product number:
LB.KS.CR30CF10DPO.E2
Manufacturer no.:
CR30CF10DPO-E2
Create PDF quotation
Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.
Product information "capacitive proximity switch Lanbao - diameter M30x1 - switching distance 10mm"

Capacitive proximity switches respond to the approach of an object (conductive or non-conductive objects) with a signal.

Type: Cylindrical with thread

Manufacturer: Lanbao

Model: CR30CF10DPx-E2

Switching voltage: 10 - 30 VDC
(suitable for 24 VDC PLC input)


Switching distance: 10 mm

Switching logic: PNP -.

Electrical properties
Dielectric strength: 1,000 VAC 1 minute
Nominal supply voltage: 24 V DC
Permissible voltage range: 10 - 30 VDC
Power consumption: < 15 mA
Switching distance: 10 mm
Switching frequency or response time: 50 Hz
Digital I/O
Switch display: Yellow LED
Switching frequency or response time: 50 Hz

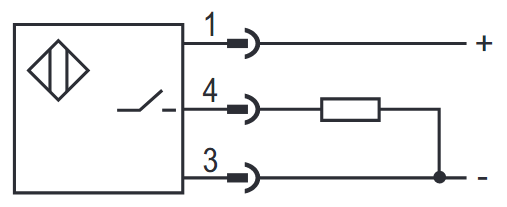

Switch type: PNP
Interfaces, protocols and connections
Connection type: M12 (4 pins)
Dimensions and environmental properties
Assembly: Screw thread , flush
Cable length: No cable
Cable material: PVC

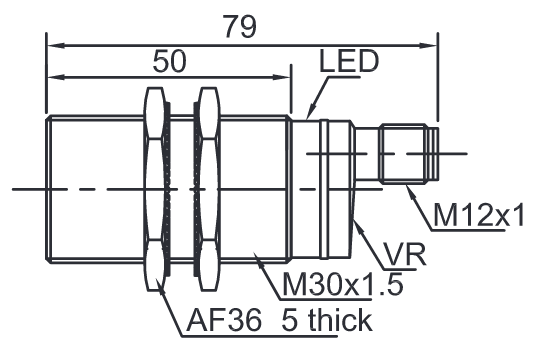

Design: M30 , cylindrical
Housing material: Nickel-copper alloy
Operating temperature range: - 25 °C to + 70 °C
Protection class: IP67
Other properties
Protective functions: Reverse polarity protection , Short-circuit protection
Certifications
CE certificate: Yes
Standards and certifications: CE marking , RoHS , UL
Manufacturer "Lanbao"
LANBAO ist einer der größten Hersteller für Sensorik in China mit Sitz in Shanghai. Lanbao hat mehrere Hundert Mitarbeiter. Mit einer Teamstärke von etwa 50 hat Lanbao eines der größten Forschungs- und Entwicklungsteams in der chinesischen Sensorikbranche. Davon profitiert das qualitativ hochwertige und funktionale Sortiment an Näherungsschaltern, Lichtschranken und anderen Sensoren. Lanbao expandiert auch international, Deutschland ist einer der Wachstumsmärkte des Unternehmens.
Open manufacturer website
