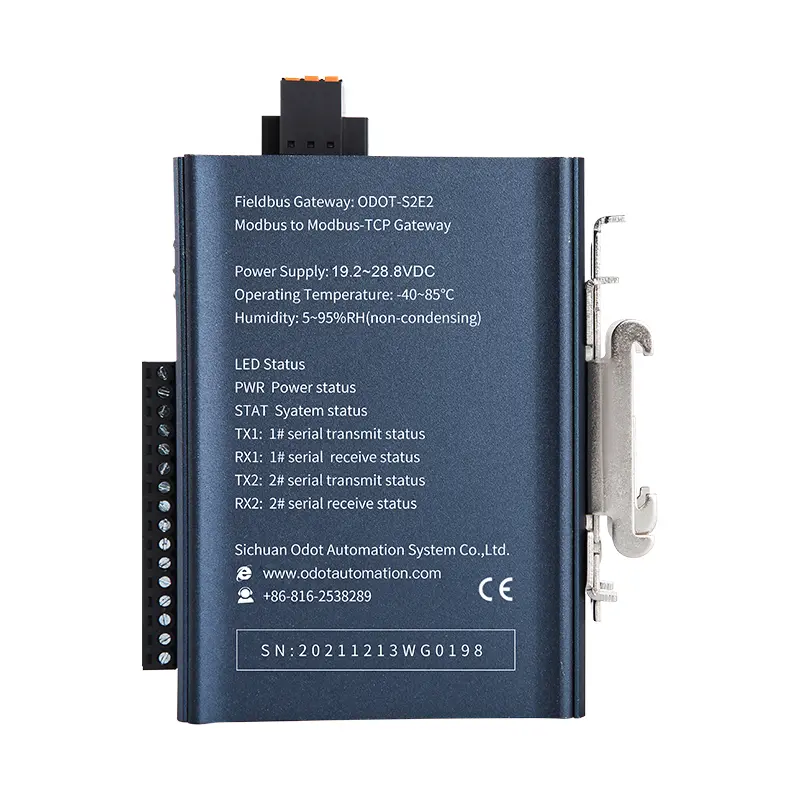

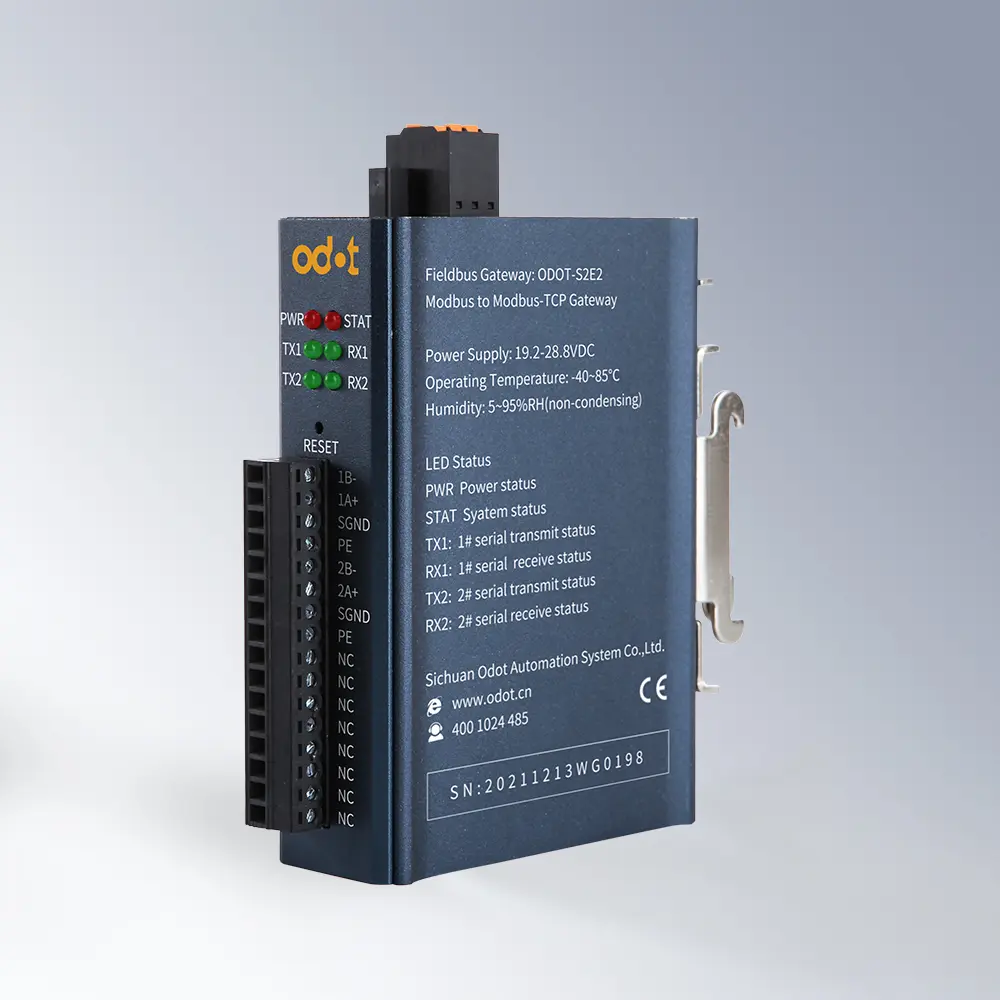

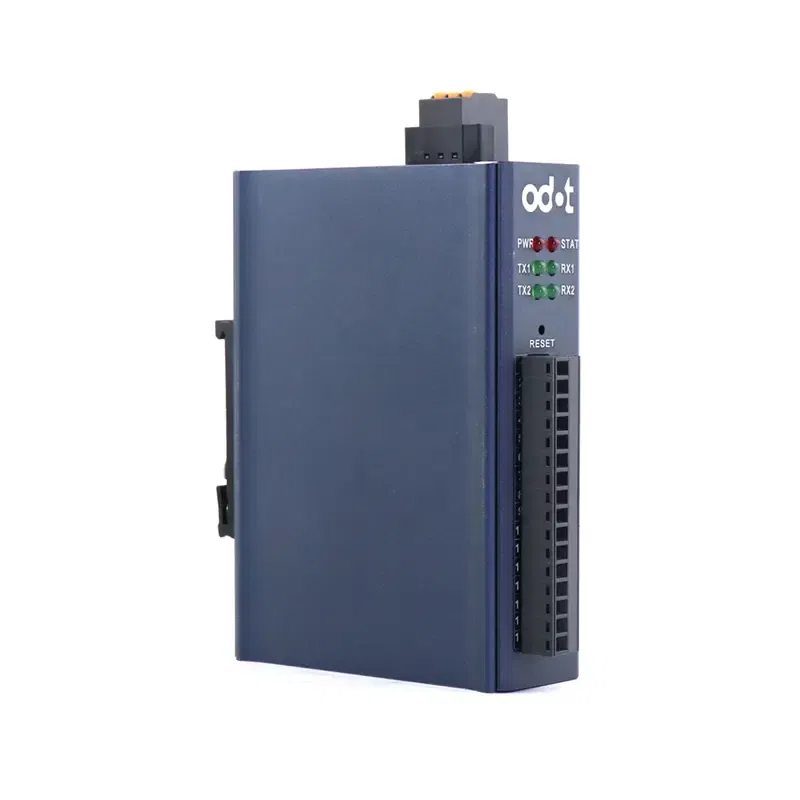

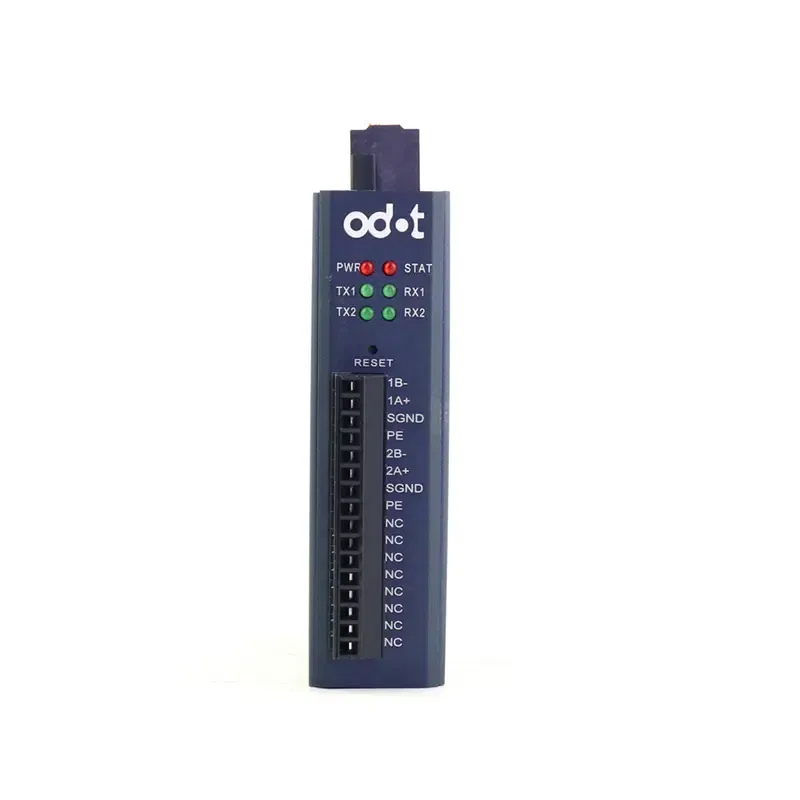

Odot-S2E2 Modbus RTU/ASCII to Modbus TCP gateway with 2 serial interfaces and 2 Ethernet interfaces

Quantity	Unit price
To 3	€168.24*
To 19	€159.83*
To 39	€151.42*
To 99	€143.00*
From 100	€134.59*

Prices excl. VAT plus shipping costs

Available in 10 days, delivery time 3 bis 5 Tage

Interfaces

2 x RS-232/485

4 x RS-232/485

Product number:

OD.S2E2

Manufacturer no.:

ODOT.S2E2

Manufacturer

Odot

Create PDF quotation

Create PDF quotation for this product Hint: You can add multiple products to the cart and create a quotation in the cart. For logged in users the link will generate a quotation with their address.

Product information "Odot-S2E2 Modbus RTU/ASCII to Modbus TCP gateway with 2 serial interfaces and 2 Ethernet interfaces"

Odot ODOT-S2/S4E2-4 - Bringing Modbus devices cleanly into the Ethernet

Many automation systems use field devices with Modbus RTU or ASCII via serial interfaces (RS232/RS485). These tried-and-tested devices are often difficult to address directly in modern, Ethernet-based control and IT environments (e.g. SCADA, MES, IoT gateways) because the serial interface is not easily accessible to network devices.

The Odot ODOT-S4E2-4 provides a remedy here: it converts serial Modbus RTU/ASCII communication into Modbus TCP and thus enables direct access to field devices via Ethernet networks - without additional software gateways or PLC code adaptations.

The gateways can address several serial RS-485 buses and bring their participants into the network via two LAN ports.

Typical application situations:

Retrofitting serial Modbus sensors or counters in Ethernet-based SCADA/MES systems
Retrofit projects with step-by-step modernization of the network infrastructure
Remote access to field devices via TCP/IP networks
Reduction of outdated serial connections in favor of standardized Ethernet communication

The S4E2-4 works as a transparent protocol converter with a stable Modbus TCP connection, supports multiple simultaneous connections and can be configured via a web interface. It therefore offers a pragmatic, economical solution for integrating existing Modbus RTU/ASCII devices into modern automation and IT processes.

Electrical properties
Nominal supply voltage:	24 V DC
Interfaces, protocols and connections
Ethernet:	2 x 10/100 (RJ45)
Fieldbuses & protocols:	Modbus TCP
Interfaces:	Ethernet , RS-232 , RS-485
Modbus:	Modbus RTU , Modbus RTU Master , Modbus RTU slave
Serial connections:	2 x RS-232/485 (oder 1 x RS-422)
Dimensions and environmental properties
Dimensions (width x height x depth):	27,5 mm x 110 mm x 110 mm
Housing material:	Aluminum
Operating temperature range:	- 40 °C to + 85 °C
Protection class:	IP20
Weight:	0,305 kg
